ADCMT 6244 - Output Waveform in Accordance with Time Parameters

6243/44 DC Voltage Current Source/Monitor Operation Manual
4.9.1 Restrictions on Time Parameters
4-43

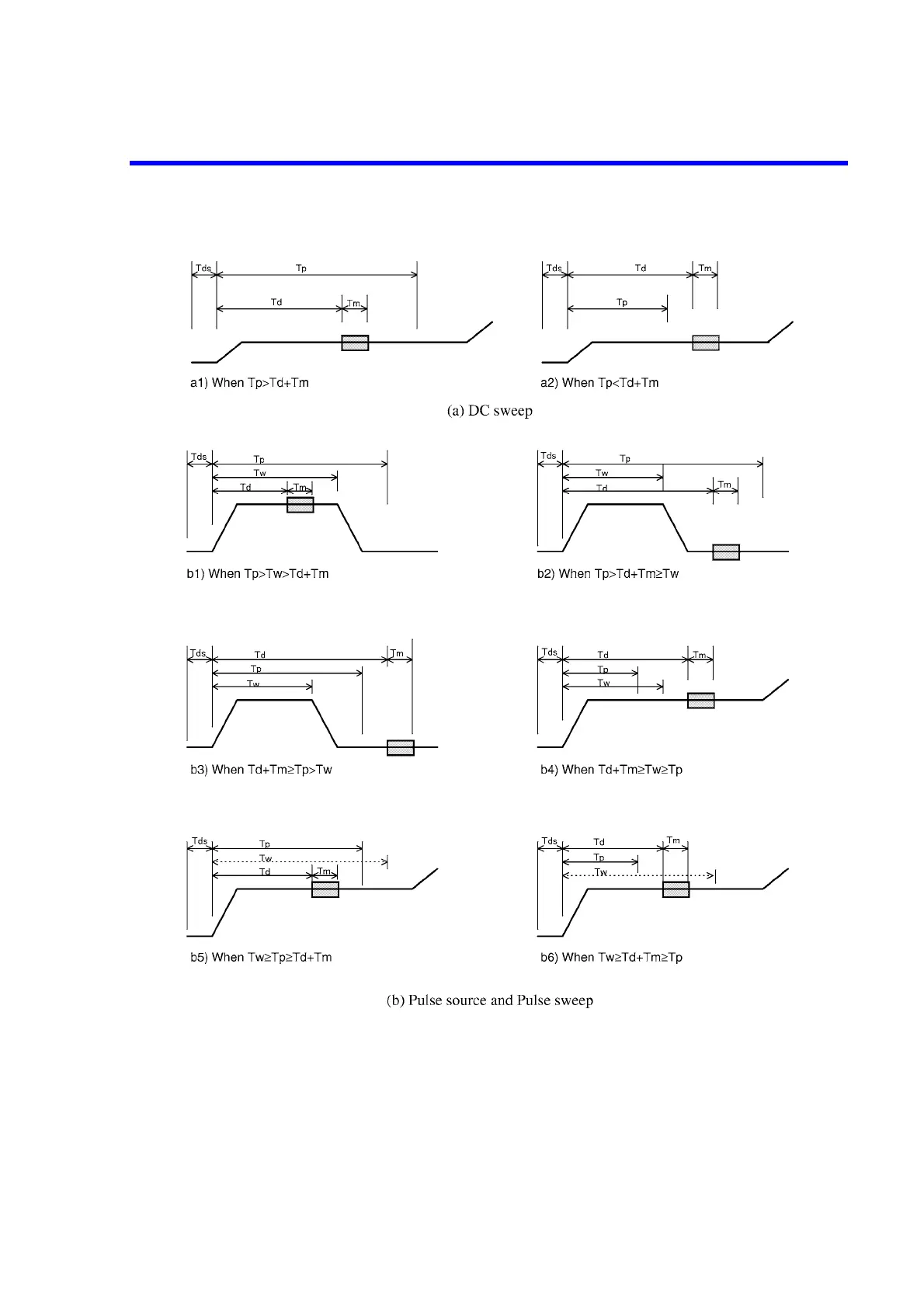

Figure 4-19 Output Waveform in Accordance With Time Parameters
When Tw  Tp as in b4), b5) and b6), the next Tds starts with no return to the base at the end of the
pulse width. Consequently, in the Pulse source mode, a constant value (pulse value) is output as in
the DC source mode.
In the Pulse sweep, the next step (pulse value) is output when the Tds ends as in DC sweep.
