6243/44 DC Voltage Current Source/Monitor Operation Manual
2.1.2 Screen Display
2-5
2.1.2 Screen Display
The following describe the screen display.

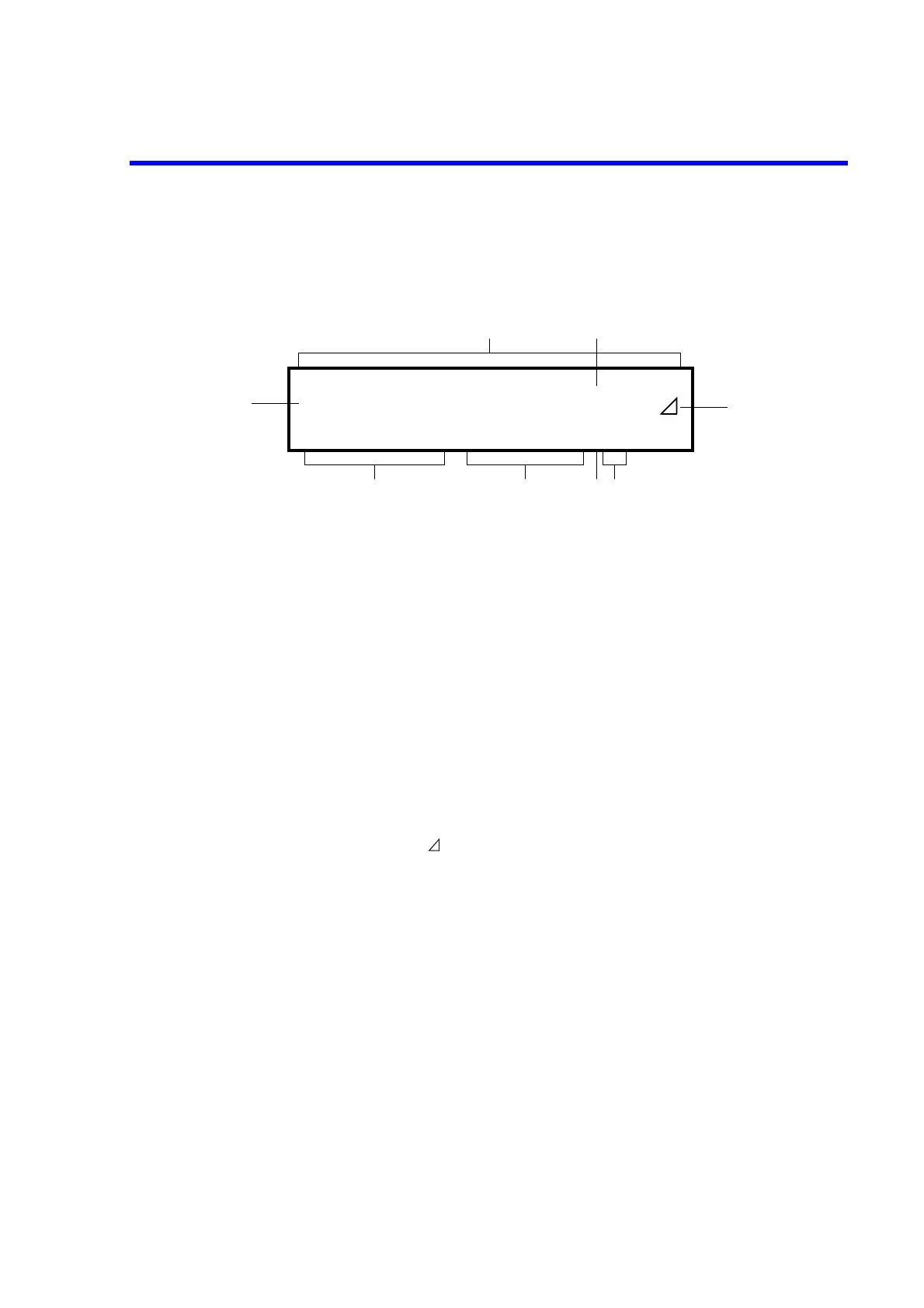

Figure 2-3 Screen Element Descriptions
1. Measured value: Measured value of voltage measurement (VM) or current measure-
ment (IM)
2. Source value: Voltage source value (VS) or current source value (IS)
3. Limiter (compliance) value: Voltage limiter setting (VL) or current limiter setting (IL)
4. Sampling mode: * is indicated when free run is selected for the DC or Pulse Source
mode, and when the Sweep Source mode in automatic sweep.
5. Source mode: One of the following abbreviations appears.
DC: DC
PLS: Pulse
SWP: DC sweep
PSW: Pulse sweep
6. TR6143 mode: Indicates the TR6143 mode.
: TR6143 Mode1
B: TR6143 Mode 2
7. Alarm or Comparator calculation result:
One of the following indications is shown when an alarm is gener-
ated and the Comparator calculation result is indicated.
+LM, -LM, +lm, -lm: The limiter (compliance) is operating.
OSC, osc: Oscillation detection
+RP, -RP, +rp, -rp: Reversed polarity source status (output
is in reverse polarity to the indicated
source value),
HI, GO, LO: Indicates the comparator calculation re-
sult.
SMPL IDLE AUTO LOP NULL DFILT MATH AZERO ERR INFO FRONT REAR SLOT LO_G RMT TLK LTN SRQ
IM+320.000mA +LM
VS:+320.00mV L:2000.0mA *DC
87
6
532
1
4
