6243/44 DC Voltage Current Source/Monitor Operation Manual
4.13 Measurement Data Storing Function
4-60
4.13 Measurement Data Storing Function
The 6243/44 features a measurement data memory for storing up to 5000 measurement data.
The following explain how data is stored in and cleared from the measurement data memory.
4.13.1 Storing Measured Data into Data Memory (Memory Store)
There are two ways to store the measured data. They are Normal mode and Burst mode. After pressing the
MENU key, select MEASURE BUFFER in the parameter group and then select the Memory Store
parameter.
The SLOT indicator is ON when either the Normal mode or the Burst mode is selected.
Figure 4-26 shows a conceptual diagram of storing measured data.
Table 4-17 compares the operations in the Normal mode and the Burst mode.

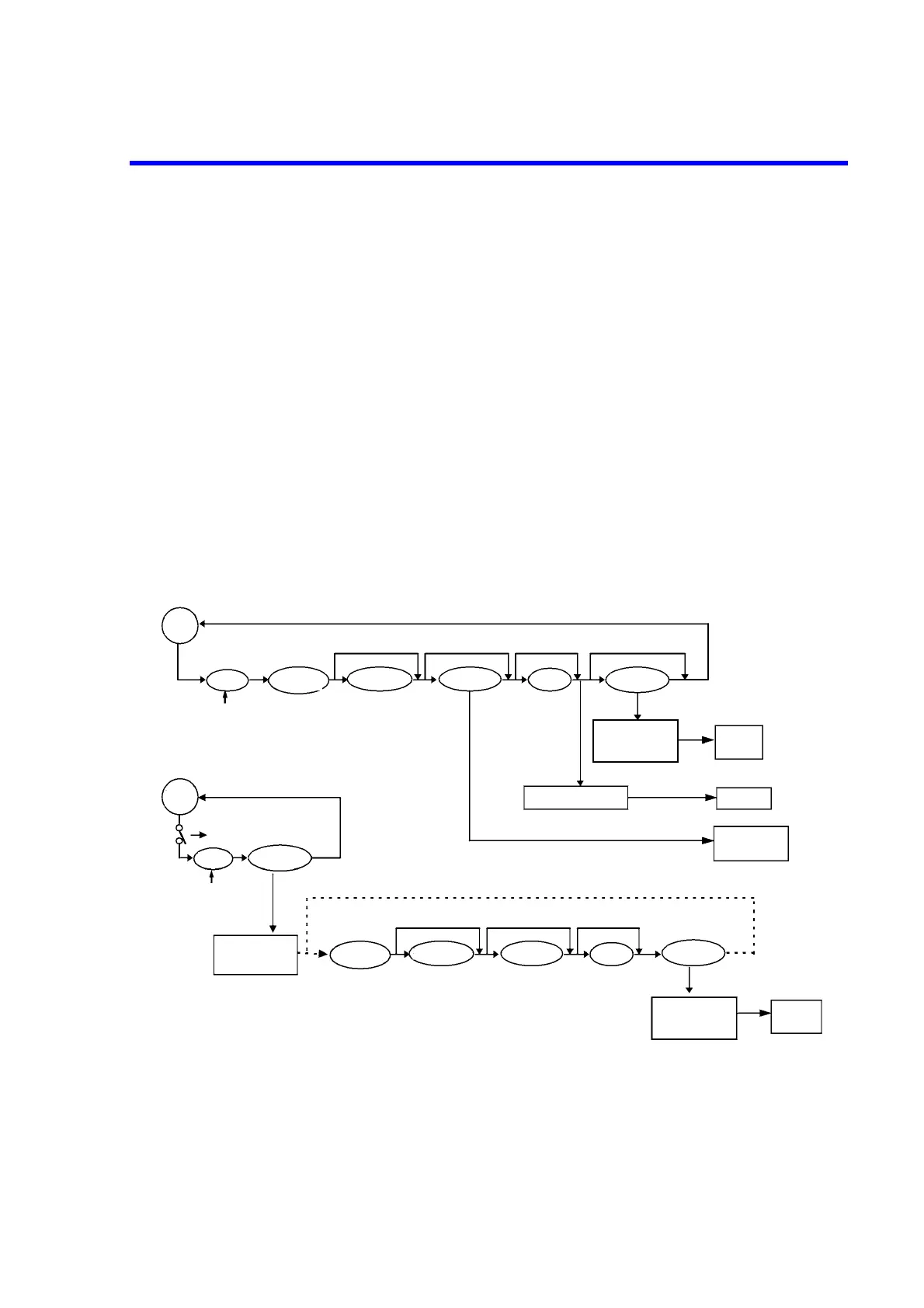

Figure 4-26 Conceptual Diagram of Storing Measured Data
Normal mode
Burst mode
Trigger
Measurement
True value
calculation
Null calculation
NULL OFF
Comparator calculation
OFF
Display OFF Memory full
Comparator
calculation
Display
Memory store
Measurement buffer
memory
GPIB Output buffer
Measurement task
Memory full
Measurement
Memory store
Data processing task
NULL OFF
Comparator calculation
OFF
Display OFF
Memory OFF
Null calculation
Comparator
calculation
Display
Measurement buffer
memory
True value
calculation
AD data buffer
RECALL
(RN1)
RECALL
(RN1)
(ENTER)
Complete OUT
Trigger
