6243/44 DC Voltage Current Source/Monitor Operation Manual
4.4.3 Random Sweep and Random Pulse Sweep
4-19
4.4.3 Random Sweep and Random Pulse Sweep
Random Sweep sweeps the source values stored in the random memory from the specified start address to
the stop address.
Desired values can be stored in memory so that function waves can also be generated.
Since this memory is shared with random pulse sweeps, it is possible to select whether the stored source
value should be generated as a DC wave or a pulse. Figure 4-11 illustrates this relation.

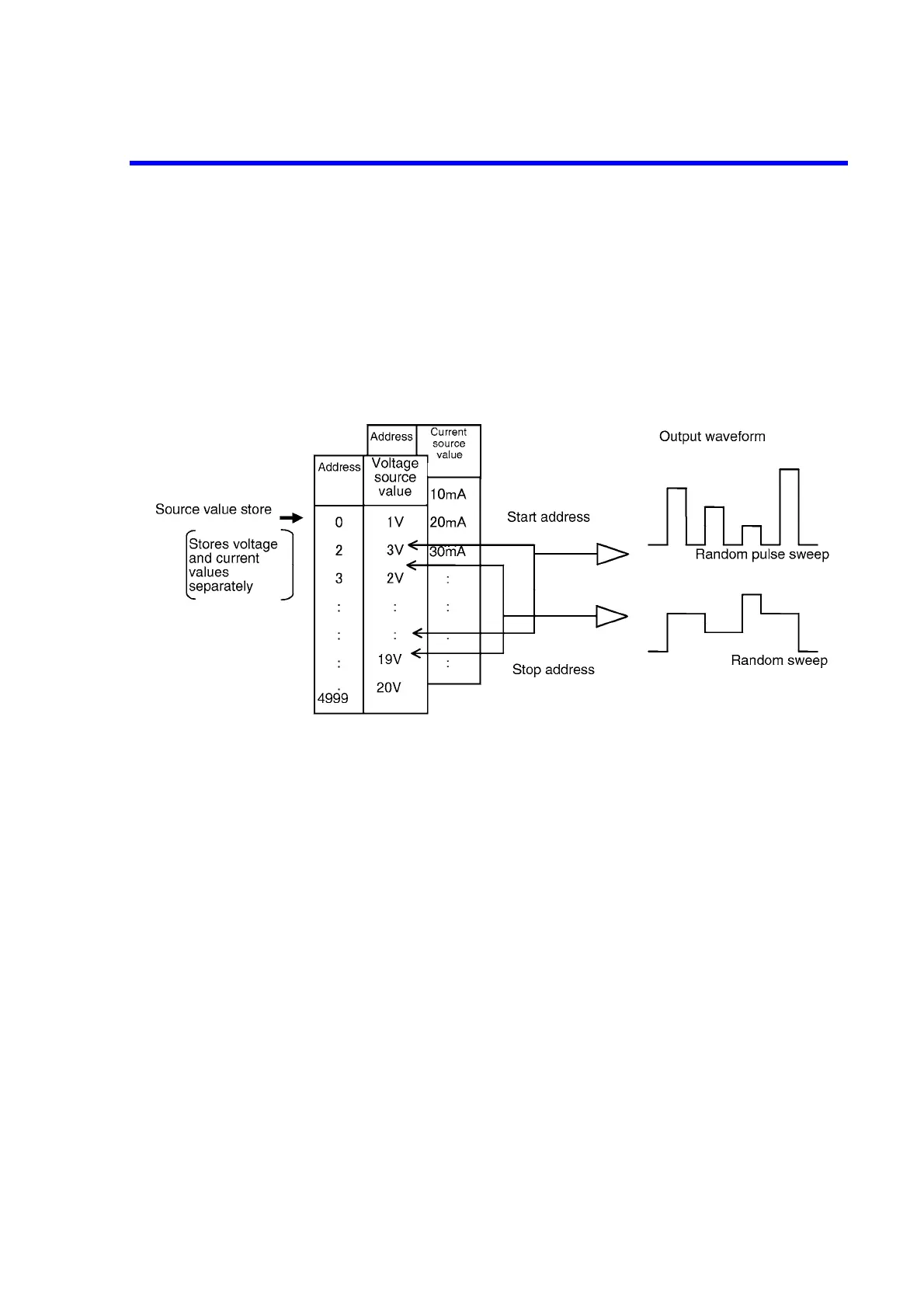

Figure 4-11 Operations of Random Sweep and Random Pulse Sweep
<Explanation of illustration>
• The random memory allows both the voltage function and the current function to be set between 0
and 4999. Specify the function to be executed.
