6243/44 DC Voltage Current Source/Monitor Operation Manual
5.2.9 Date Output Format (Talker)
5-18
5.2.9 Date Output Format (Talker)
(1) Measurement data output format (ASCII)
For normal measurement and when the data is read out from the measurement buffer memory with
RN1
*1: Header (Event header 2 characters + Sub header 1 character)
*2: Fixed-point part (Polarity + decimal point + 5 to 6-digit figure)
*3: Exponent part (E + polarity + 1-digit figure)
*4: Block delimiter

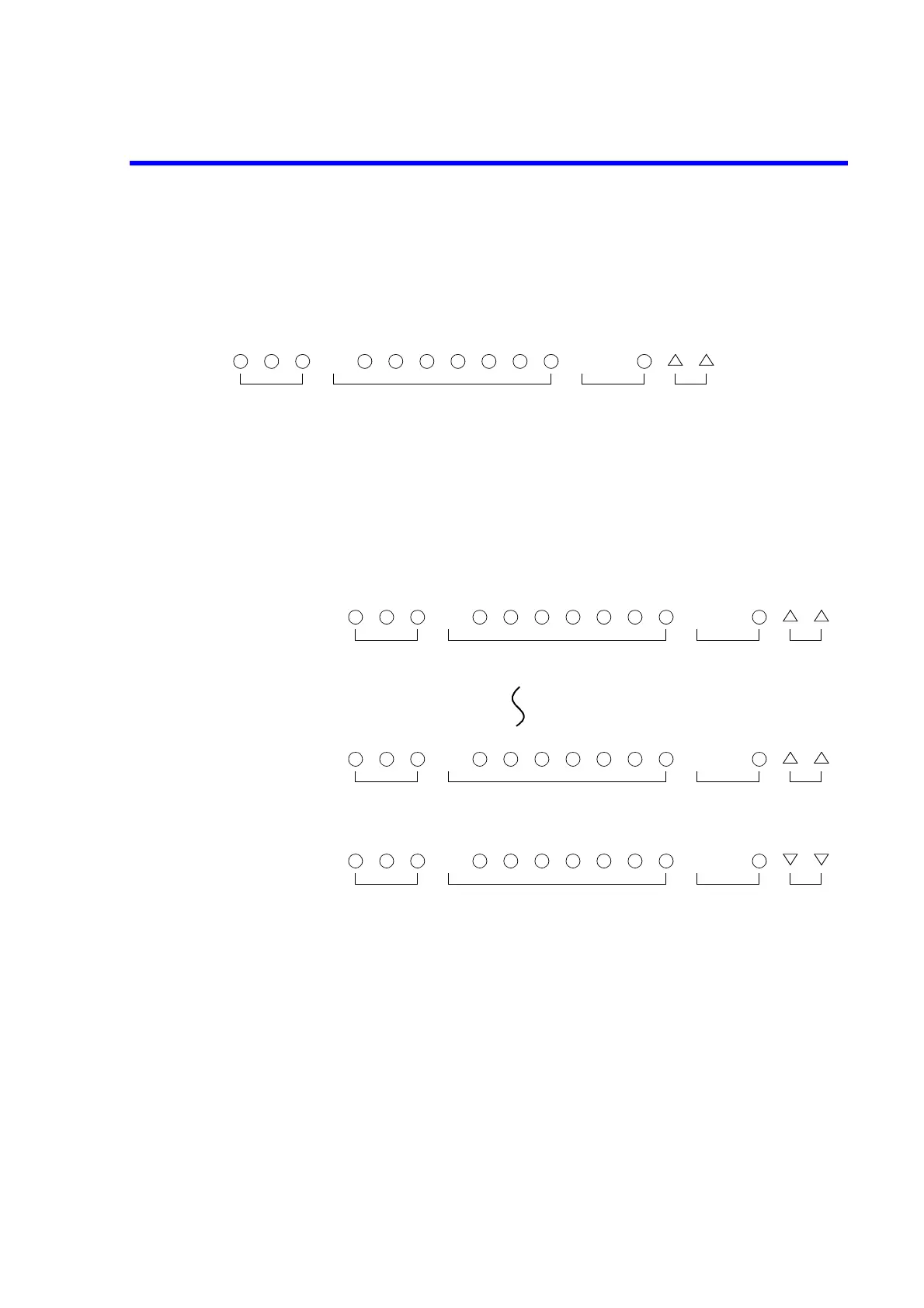

(2) Measurement buffer memory output format (two or more data)
When two or more data is read from the measurement buffer memory, each data is delimited by the
string delimiter.
(a) Header (Main header 2 characters + Sub header 1 character)
(b) Fixed-point part (Polarity + decimal point + 5 to 6-digit figure)
(c) Exponent part (E + polarity + 1-digit figure)
(d) String delimiter
(e) Block delimiter
E
*1 *2 *3 *4
First data
E
(a) (b) (c) (d)
n-1th data
E
(a) (b) (c) (d)
nth data (last data)
E
(a) (b) (c) (e)
To Next Page
