4.4.4 Round-Trip Sweep (Reverse ON)
4-20
4.4.4 Round-Trip Sweep (Reverse ON)
This section explains round-trip sweep for Staircase sweep (Section 4.4.1) and Pulse sweep (Section
4.4.2).

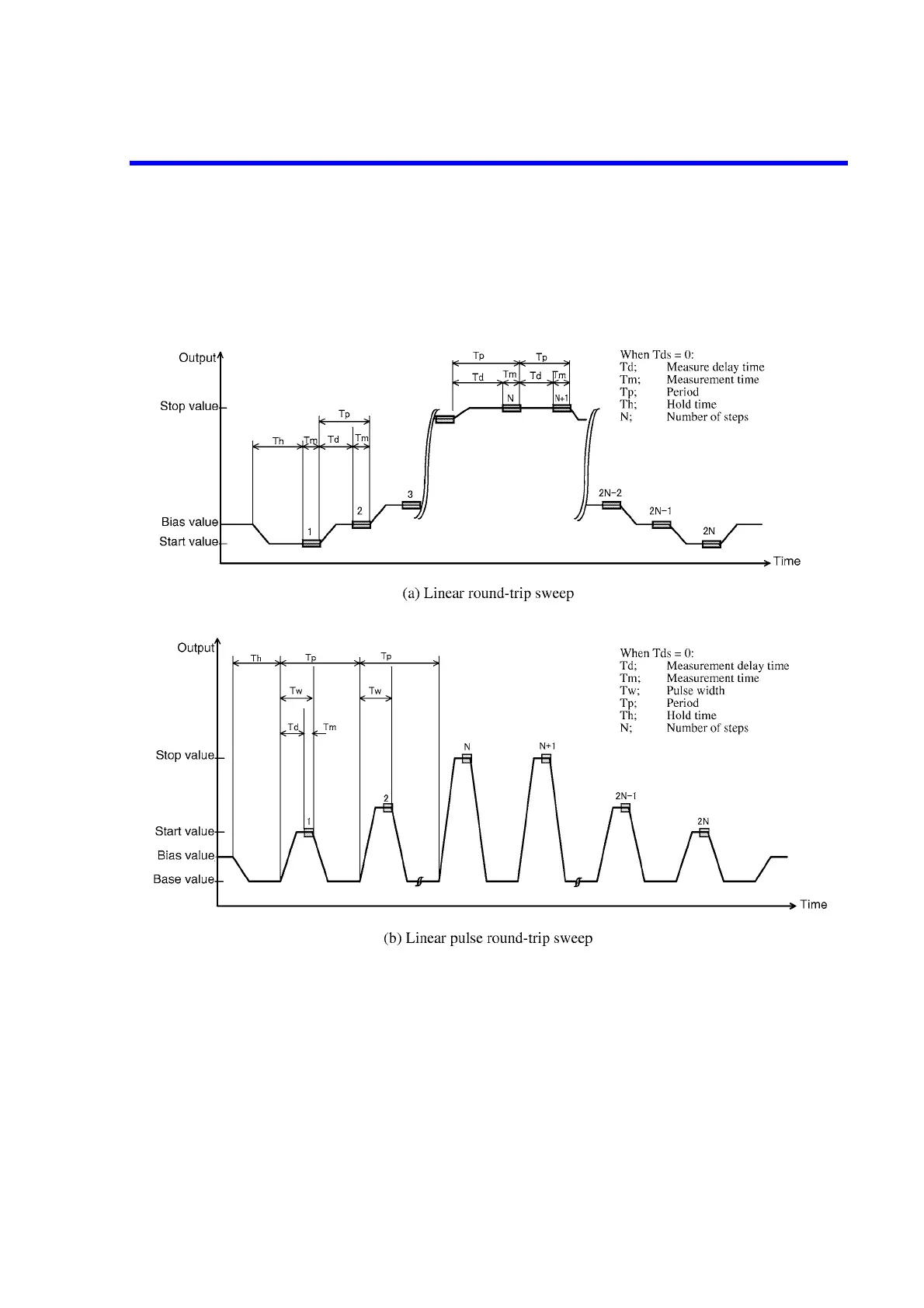

Figure 4-12 Round-Trip Sweep (Reverse ON)
<Explanations of illustrations>
• Following sweep from start value to stop value, sweep is performed from stop value to start value.
• The step count becomes twice that of the one-way sweep.
• Upon completion of the sweep, the bias value is output.
