4.4.2 Pulse Sweep
4-18

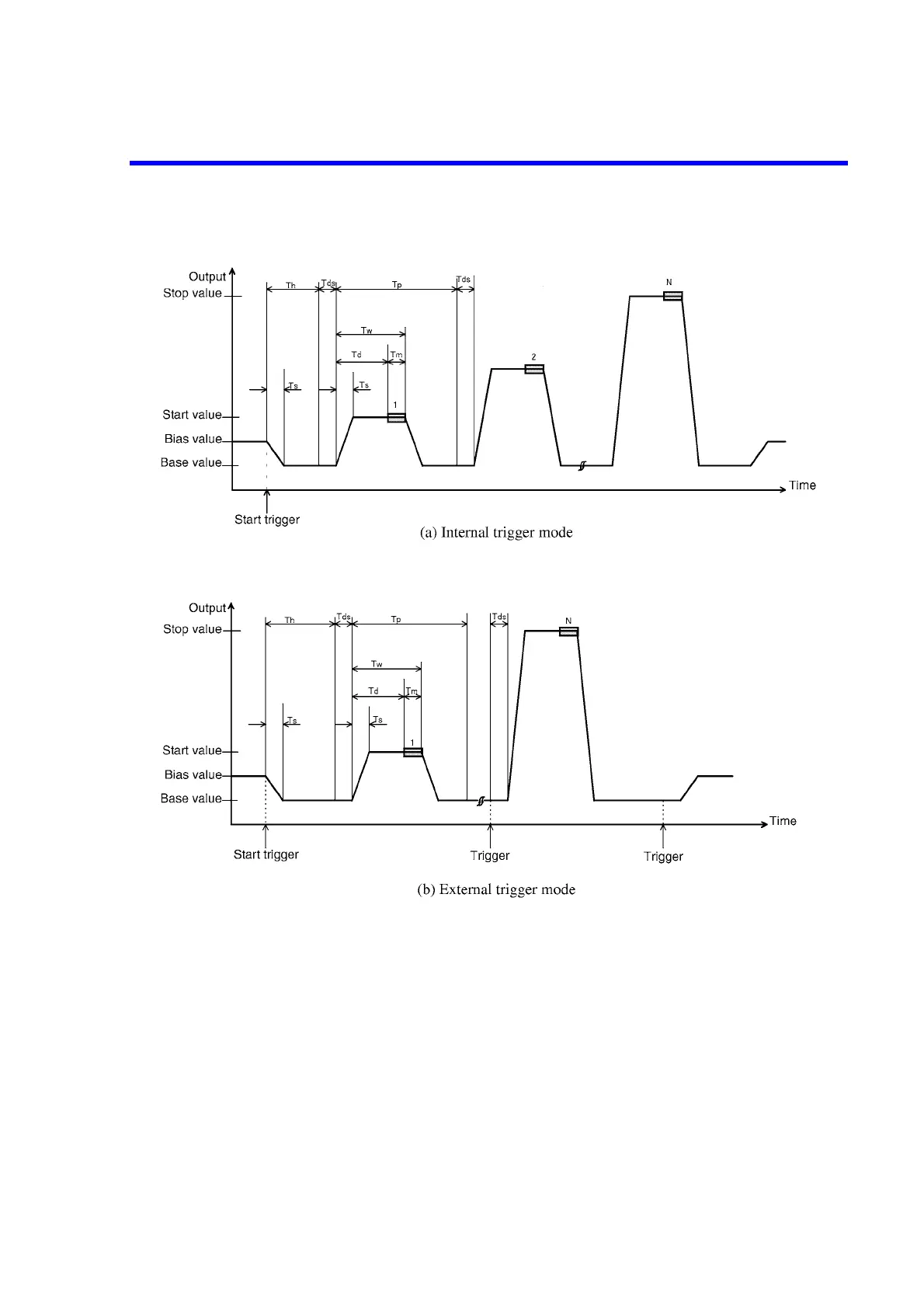

Figure 4-10 Pulse Sweep (One-Way Sweep)
<Explanations of Illustrations>
• Bias Values are output before sweep start and after sweep finish.
• When a start trigger is received, the Base Value is output and the 6243/44 waits for the Hold time.
• After waiting for the Hold time + Source Delay time, the 6243/44 outputs the pulse value.
• After the pulse value is output, the 6243/44 waits for the pulse width time and returns output to the
Base Value.
• After the pulse output, the 6243/44 waits for the Measure Delay time and then starts the measure-
ment.
Ts; Settling time
Th; Hold time
Tds; Source delay time
Tw; Pulse width
Tp; Period
Td; Major delay time
Tm; Measurement time
N; Number of measurements
