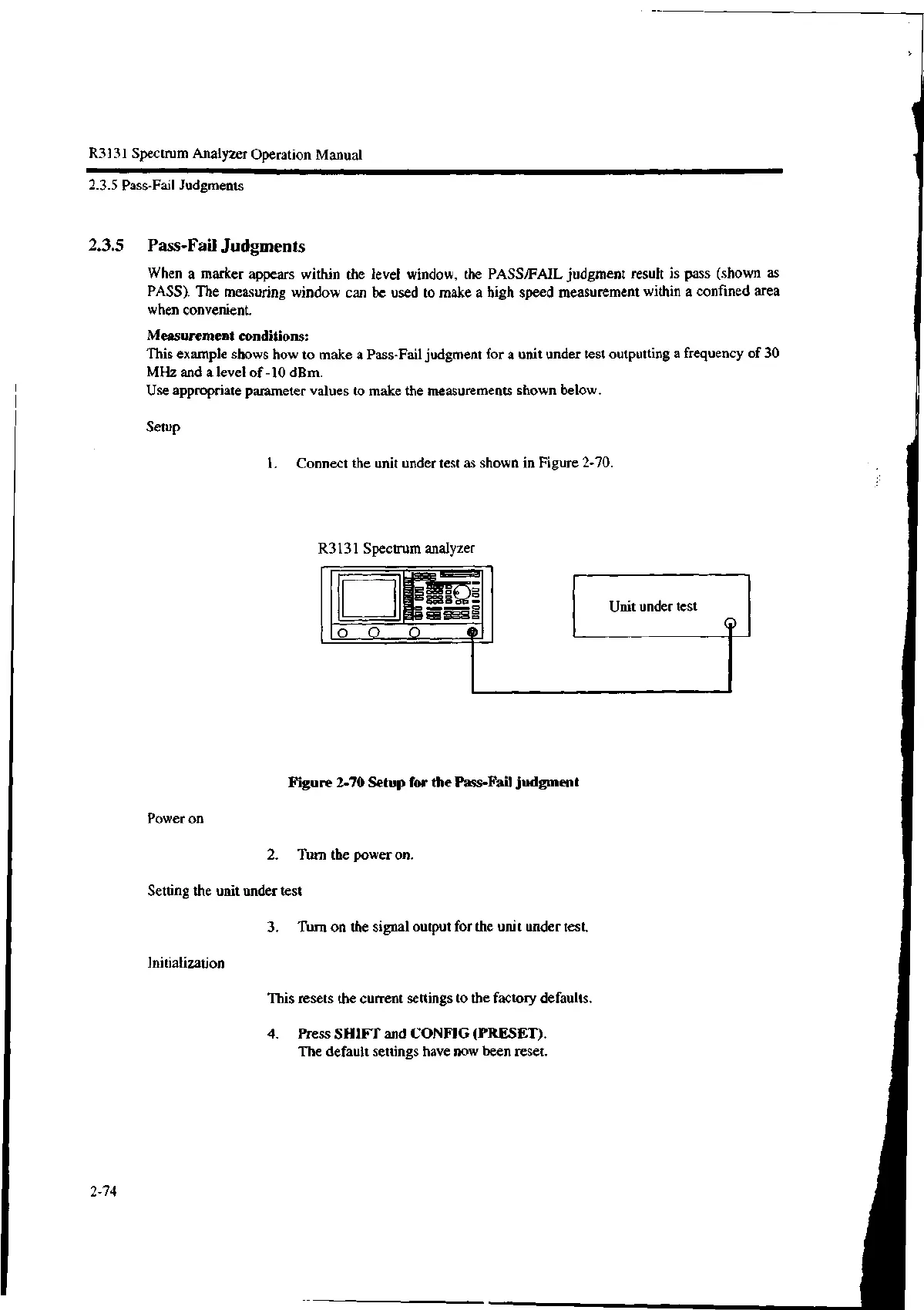

2.3.5 Pass-Fail Judgments
2.3.5 Pass-Fail Judgments
When a marker appears within the level window, the PASS/FAIL judgment result is
PASS). The measuring window can be used to make a high speed measurement within
when convenient.
Measurement conditions:
This example shows how to make a Pass-Fail judgment for a unit under test outputting a
MHz and a level of -10 dBm.
Use appropriate parameter values to make the measurements shown below.
Setup
1. Connect the unit under test as shown in Figure 2-70.
R3131 Spectrum analyzer
pass (shown as
a confined area
frequency of 30
Unit under test
Figure 2-70 Setup for the Pass-Fail judgment
Power on
2. Turn the power on.
Setting the unit under test
3. Turn on the signal output for the unit under test.
Initialization
2-74
This resets the current settings to the factory defaults.
4. Press SHIFT and CONFIG (PRESET).
The default settings have now been reset.
To Next Page
