R3131 Spectrum Analyzer Operation Manual

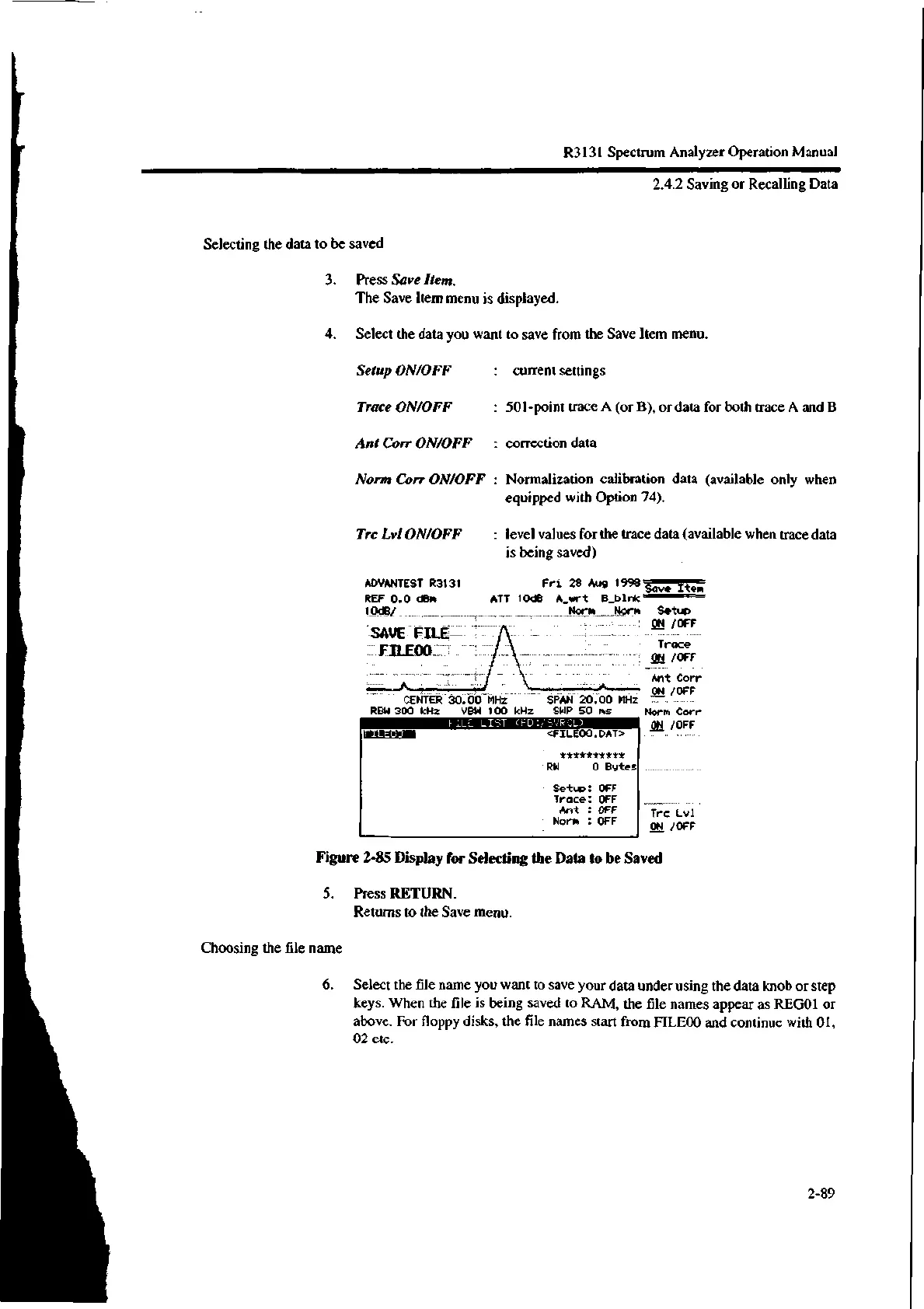

2.4.2 Saving or Recalling Data
Selecting the data to be saved
3. Press Save Item.
The Save Item menu is displayed.
4. Select the data you want to save from the Save Item menu.
Setup ON/OFF : current settings
Trace ON/OFF : 501-point trace A (or B), or data for both trace A and B
Ant Corr ON/OFF : correction data
Norm Corr ON/OFF : Normalization calibration data (available only when
equipped with Option 74).
Trc Lvl ON/OFF : level values for the trace data (available when trace data
is being saved)
ADVANTEST R3131 Fri 28 Aug 1998 Save Item
REF 0.0 d8m ATT 10d9 A_vort B_blnk
tow__________14.97k11.9!7!% Setup
: ! : ON /OFF
SAVE FILE--
I:II FREW . Trace
ON /OFF
Ant Corr
ON /OFF
Norm Corr
ON /OFF
CENTER 30.00-*fir— SPAN 20.00 MH
RBW 300 kHz VBW 100 kHz SWP SO ms
FILE LIST (FD:/SVPCL)
<FILE00.DAT>
**********
RW 0 Bytes
Setup: OFF
Trace: OFF
Ant : OFF
Norm : OFF
Trc Lvl
ON /OFF
Figure 2-85 Display for Selecting the Data to be Saved
5. Press RETURN.
Returns to the Save menu.
Choosing the file name
6. Select the file name you want to save your data under using the data knob or step
keys. When the file is being saved to RAM, the file names appear as REGO1 or
above. For floppy disks, the file names start from FILE00 and continue with 01,
02 etc.
