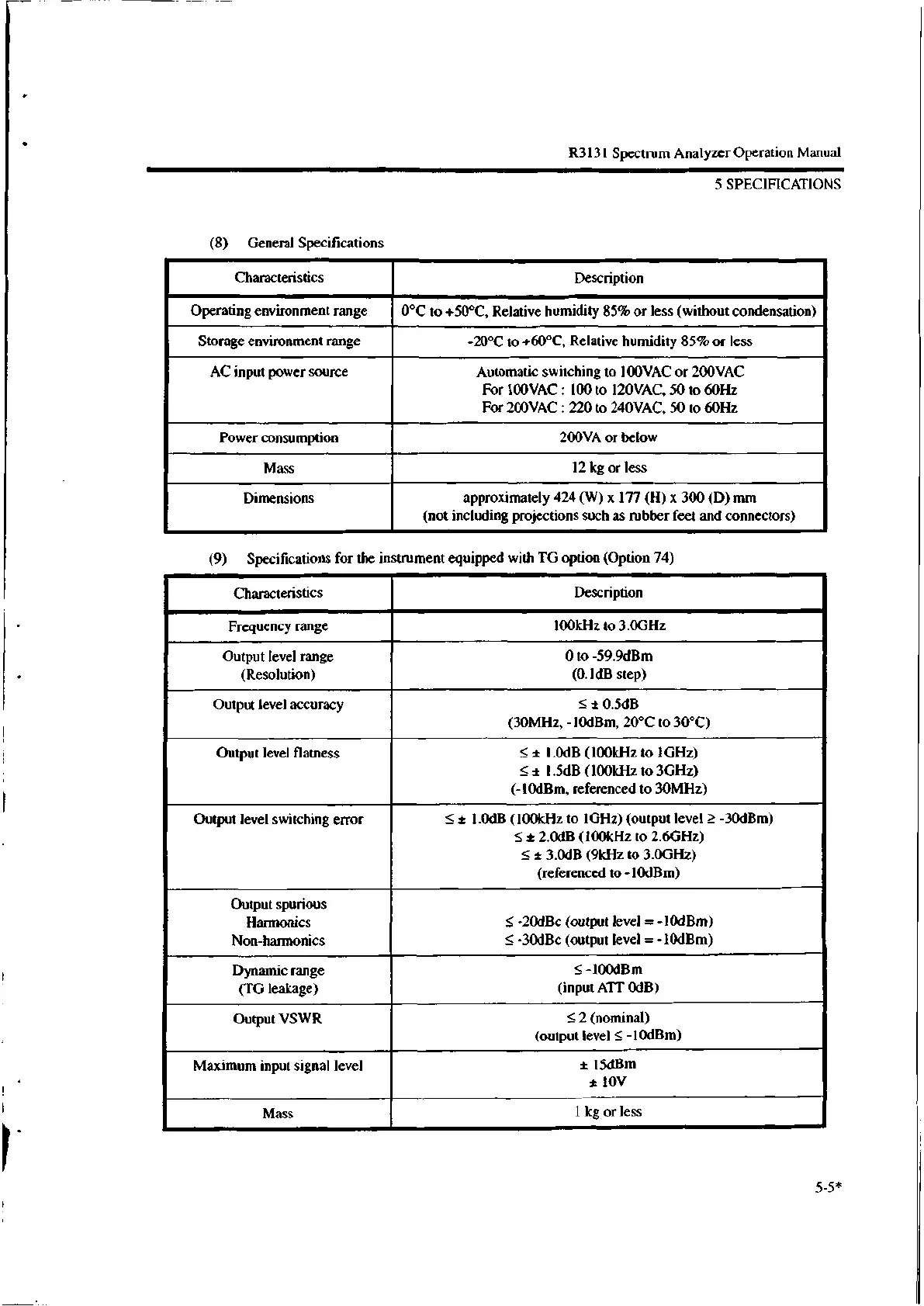

R3131 Spectrum Analyzer Operation Manual
Characteristics
Description
Operating environment range
0°C to +50°C, Relative humidity 85% or less (without condensation)
Storage environment range
-20°C to +60°C, Relative humidity 85% or less
AC input power source
Automatic switching to 100VAC or 200VAC
For 100VAC : 100 to 120VAC, 50 to 60Hz
For 200VAC : 220 to 240VAC, 50 to 60Hz
Power consumption
200VA or below
Mass 12 kg or less
Dimensions approximately 424 (W) x 177 (H) x 300 (D) mm
(not including projections such as rubber feet and connectors)
Characteristics
Description
Frequency range
100kHz to 3.0GHz
Output level range
(Resolution)
0 to -59.9dBm
(0.1dB step)
Output level accuracy
.5 t 0.5dB
(30MHz, -l0dBm, 20°C to 30°C)
Output level flatness
_5 ± 1.0dB (100kHz to 1GHz)
5 ± 1.5dB (100kHz to 3GHz)
(-10dBm, referenced to 30MHz)
Output level switching error
5* 1.0dB (100kHz to 1GHz) (output level > -30dBm)
5_ ± 2.0dB (100kHz to 2.6GHz)
5 I 3.0dB (9kHz to 3.0GHz)
(referenced to -l0dBm)
Output spurious
Harmonics
Non-harmonics
.5 -20dBc (output level = -I0dBm)
5_ -30dBc (output level = -10dBm)
Dynamic range
(TG leakage)
5_ -100dBm
(input ATT 0dB)
Output VSWR
5 2 (nominal)
(output level 5 -10dBm)
Maximum input signal level
± 15dBm
* lOy
Mass
1 kg or less
5 SPECIFICATIONS
(8) General Specifications
(9) Specifications for the instrument equipped with TG option (Option 74)
5-5*
