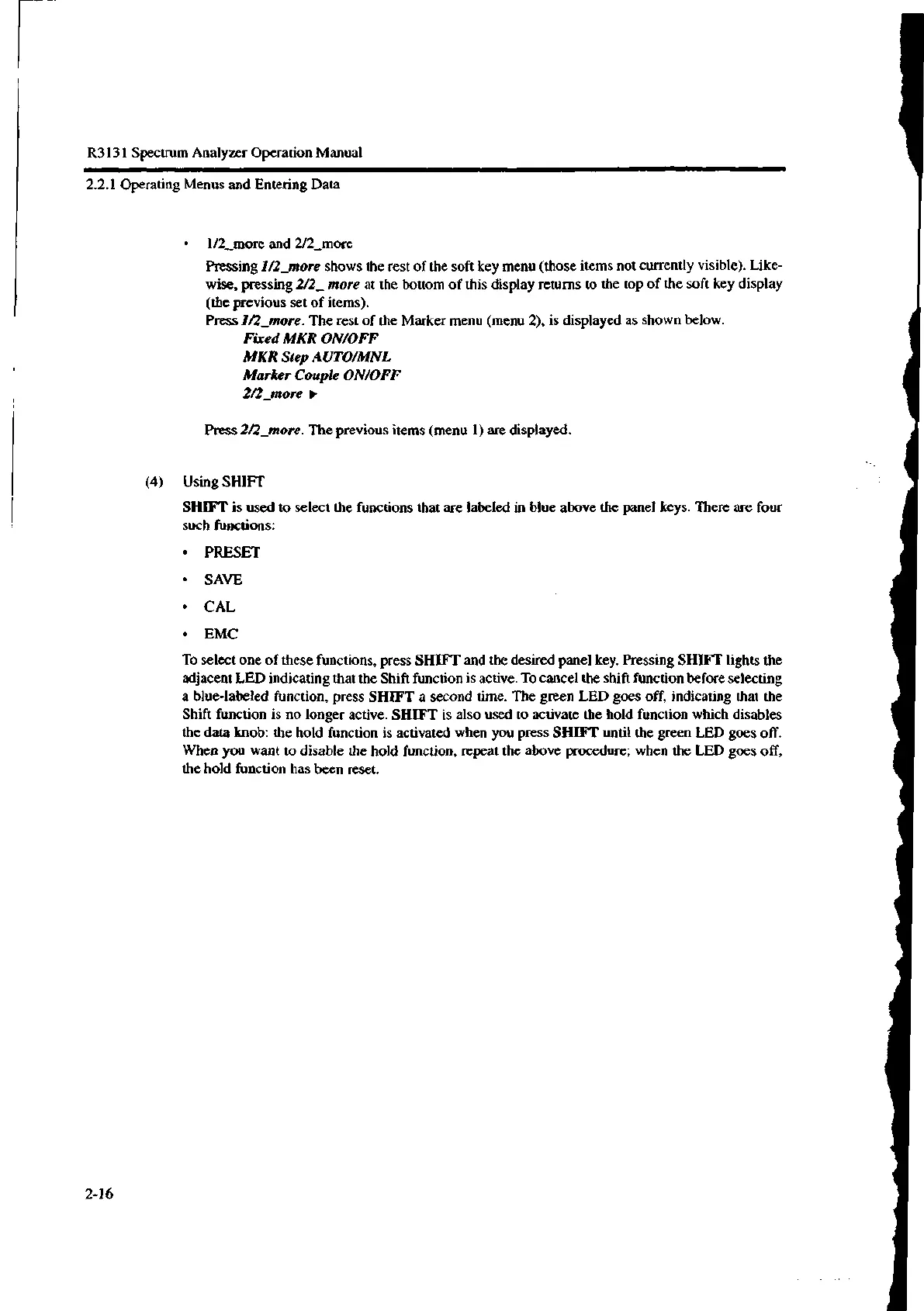

R3131 Spectrum Analyzer Operation Manual
2.2.1 Operating Menus and Entering Data
• 1/2_more and 2/2_more
Pressing 1/2_more shows the rest of the soft key menu (those items not currently visible). Like-
wise, pressing 2/2_ more at the bottom of this display returns to the top of the soft key display
(the previous set of items).
Press 1/2_more. The rest of the Marker menu (menu 2), is displayed as shown below.
Fixed MKR ON/OFF
MKR Step AUTO/MNL
Marker Couple ON/OFF
2/2_more â–¶
Press 2/2_more. The previous items (menu 1) are displayed.
(4) Using SHIFT
SHIFT is used to select the functions that are labeled in blue above the panel keys. There are four
such functions:
• PRESET
• SAVE
• CAL
• EMC
To select one of these functions, press SHIFT and the desired panel key. Pressing SHIFT lights the
adjacent LED indicating that the Shift function is active. To cancel the shift function before selecting
a blue-labeled function, press SHIFT a second time. The green LED goes off, indicating that the
Shift function is no longer active. SHIFT is also used to activate the hold function which disables
the data knob: the hold function is activated when you press SHIFT until the green LED goes off.
When you want to disable the hold function, repeat the above procedure; when the LED goes off,
the hold function has been reset.
