R3131 Spectrum Analyzer Operation Manual
2.2.3 Measuring Window and the Display Line
ADVANTEST R3131 Thu 25 Jun 1998Display
REF -10.0 dBm ATT 10d8 A_wrt Et_blnk
piay
, Norm ,Norm "'Line
DISP LI ON /OFF
-54.0 Ref Line
ON /OFF
-CC
RL -12.7
Change
Title
Time/Date
CENTER 50.00 MHz
RBW 1 MHz YBW 1 MHz
SPAN 80.0 MHz
SWP 50 As
Meas
Window
ON /OFF
Tone
GRAY/ B/W
Inverse

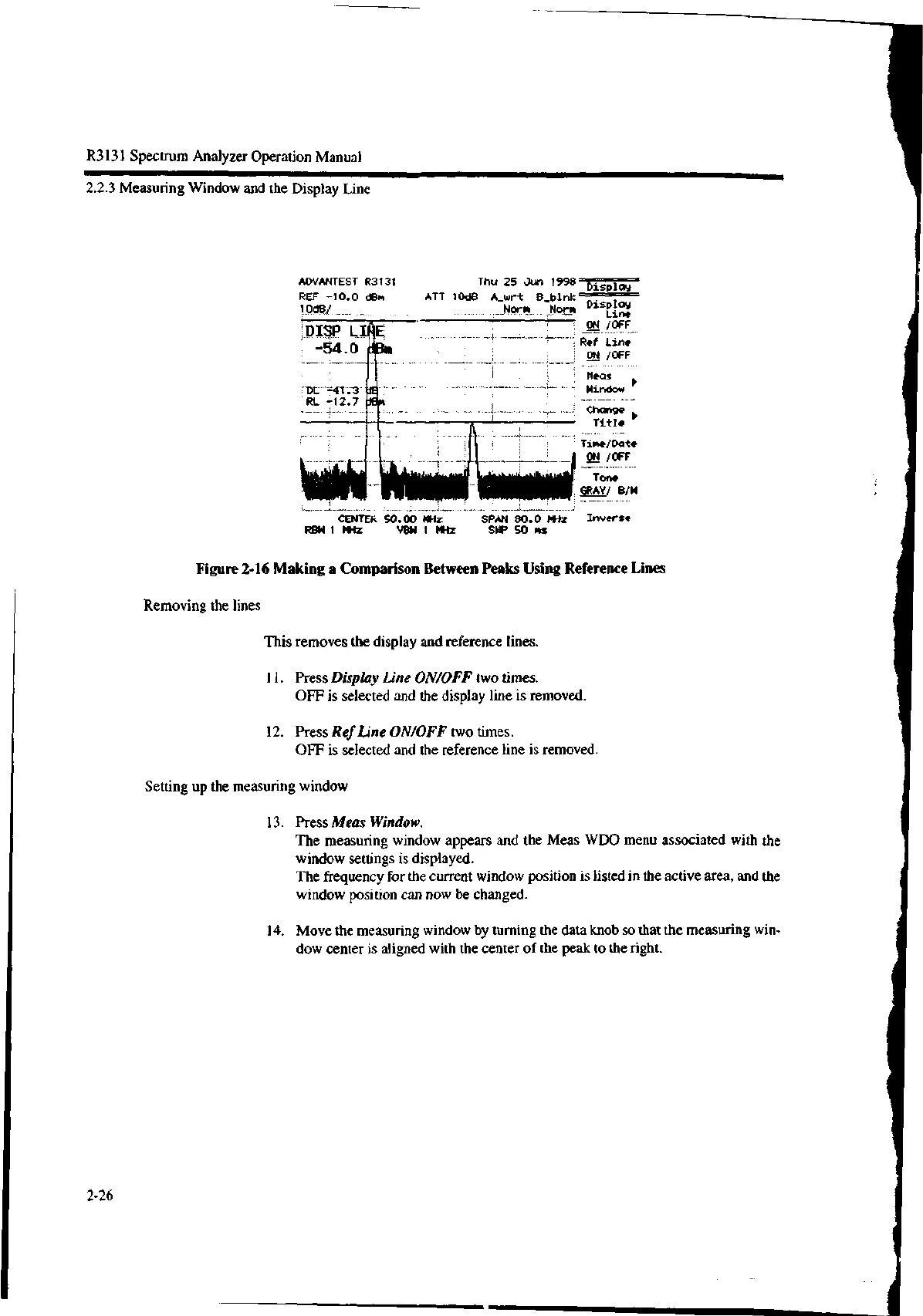

Figure 2-16 Making a Comparison Between Peaks Using Reference Lines
Removing the lines
This removes the display and reference lines.
11. Press Display Line ON/OFF two times.
OFF is selected and the display line is removed.
12. Press Ref Line ON/OFF two times.
OFF is selected and the reference line is removed.
Setting up the measuring window
13. Press Meas Window.
The measuring window appears and the Meas WDO menu associated with the
window settings is displayed.
The frequency for the current window position is listed in the active area, and the
window position can now be changed.
14. Move the measuring window by turning the data knob so that the measuring win-
dow center is aligned with the center of the peak to the right.
