Common Procedures
There are several basic procedures and principles used during installation, operation, and
maintenance of the LX-150 which, once understood, are very simple. To avoid repetition and
excessive wording, those procedures and principles are described in this section.
A general principle to understand is that, when adjusting certain parts, they must first be
unlocked, then adjusted by turning an adjustment knob, and then locked again into their new
position. During all of these procedures, unless otherwise stated, the UR-1 and LX-150 should
be turned off.
Tensioner: Unlocking/Adjusting/Locking
The Tensioner (on the side of the right Cutter Support Arm) ensures that the Cutter Drive Belt
puts the right amount of pressure on the Cutter Drive Pulley.
To Adjust the Tensioner:
Loosen the Tensioner Lock by turning it counterclockwise.
Push the Tensioner toward the back wall to increase tension, or push the Tensioner
toward the back wall with less pressure to decrease tension.
Tighten the Tensioner Lock by turning it clockwise.

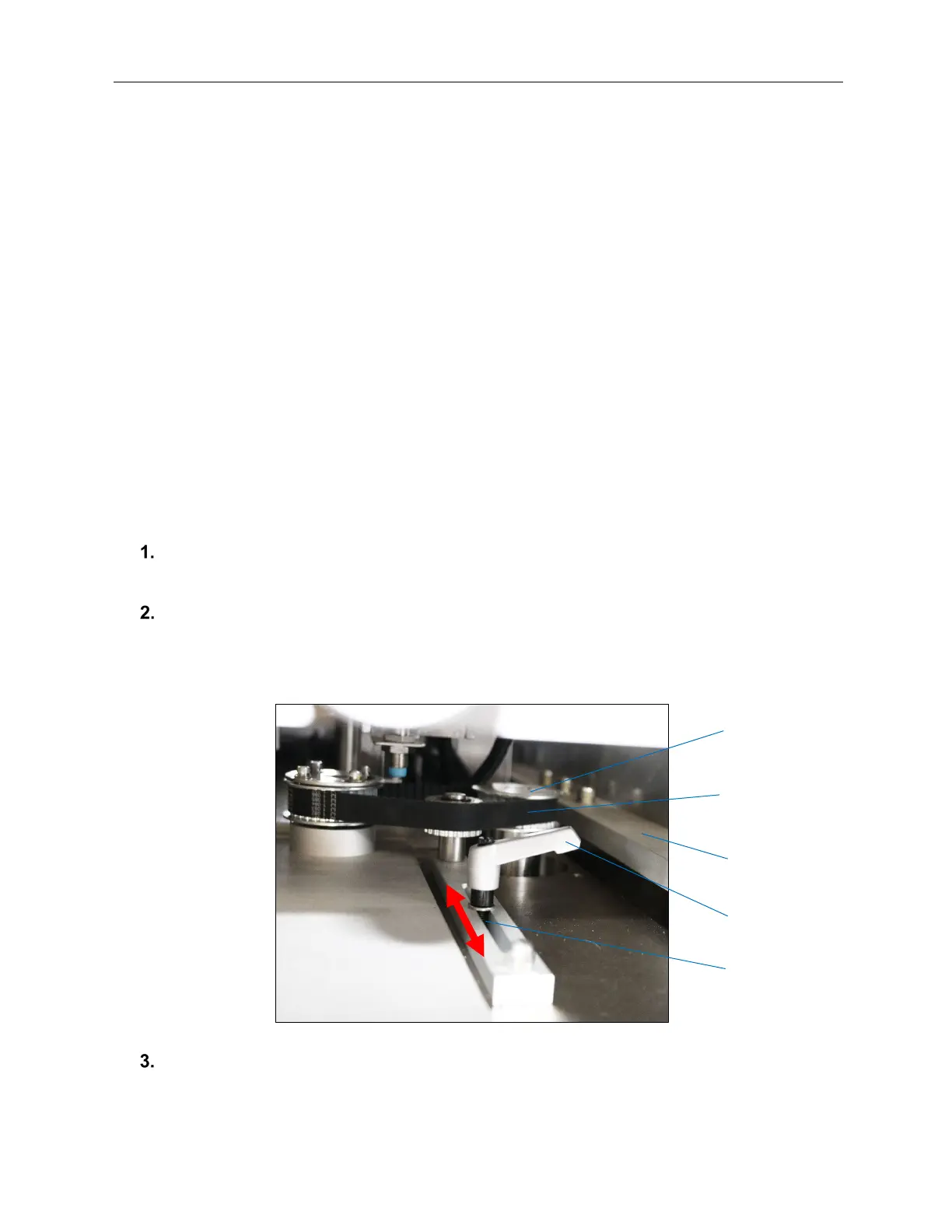

Adjusting and Locking the Tensioner
Cutter
Drive Belt
Tensioner
Lock
Tensioner
Cutter Drive
Pulley
Cutter
Support Arm
To Next Page
