28 Introduction
4510001 REV B – 220620
UR-1: Detailed Overview:
The UR-1 Unwind System supplies label film to the LX-150. It has two independently motorized
Film Spools for holding rolls of film. At any given time, one roll is fed to the LX-150, and the
other is a standby roll for when the first one runs out. The UR-1 can feed label film to the LX-150
from either Film Spool.
Between the Film Spools is a Control Box, allowing the user to select which Film Spool should
be feeding film and the rotation direction of that Film Spool.
Below the Film Spools is a Splicing Table, where splicing tape can be used to attach the end of
the first film roll to the beginning of the second film roll, eliminating the need to thread film
through the entire system every time a roll of film runs out.

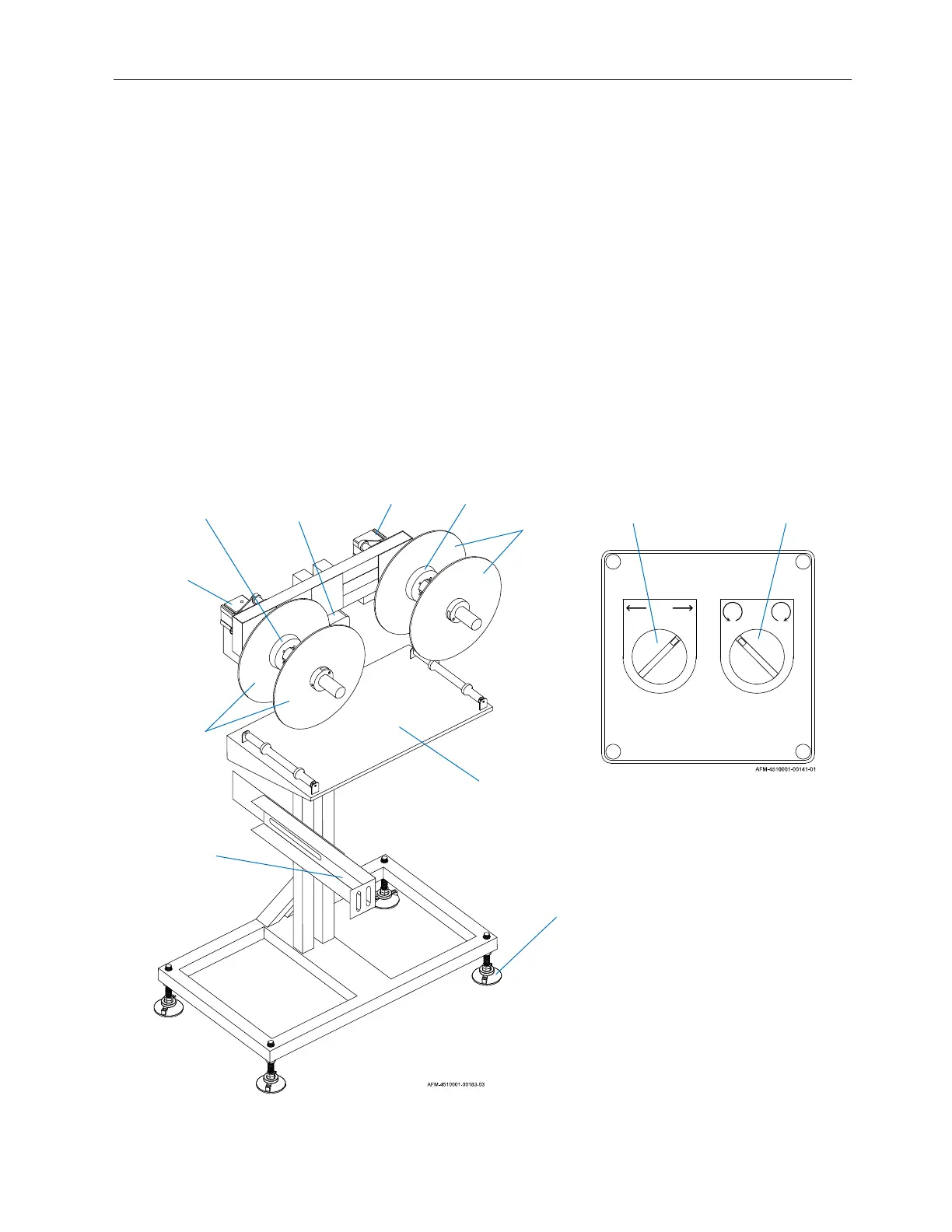

UR-1
Film Spool 2
Splicing
Table
Film Spool 1
Spool 1
Drive Motor
Spool 2
Drive Motor
Control
Box
Feet
UR-1 Control Box
Spool
Selection
Film Rotation
Direction
Front and
Rear Plates
Front and
Rear Plates
Conveyor
Mounting
Bracket
To Next Page
