20 Equipment
4510001 REV B – 220620
Optional Equipment
Depending on the labeling tasks being performed, additional equipment may be needed to
complete the standard LX-150 setup:

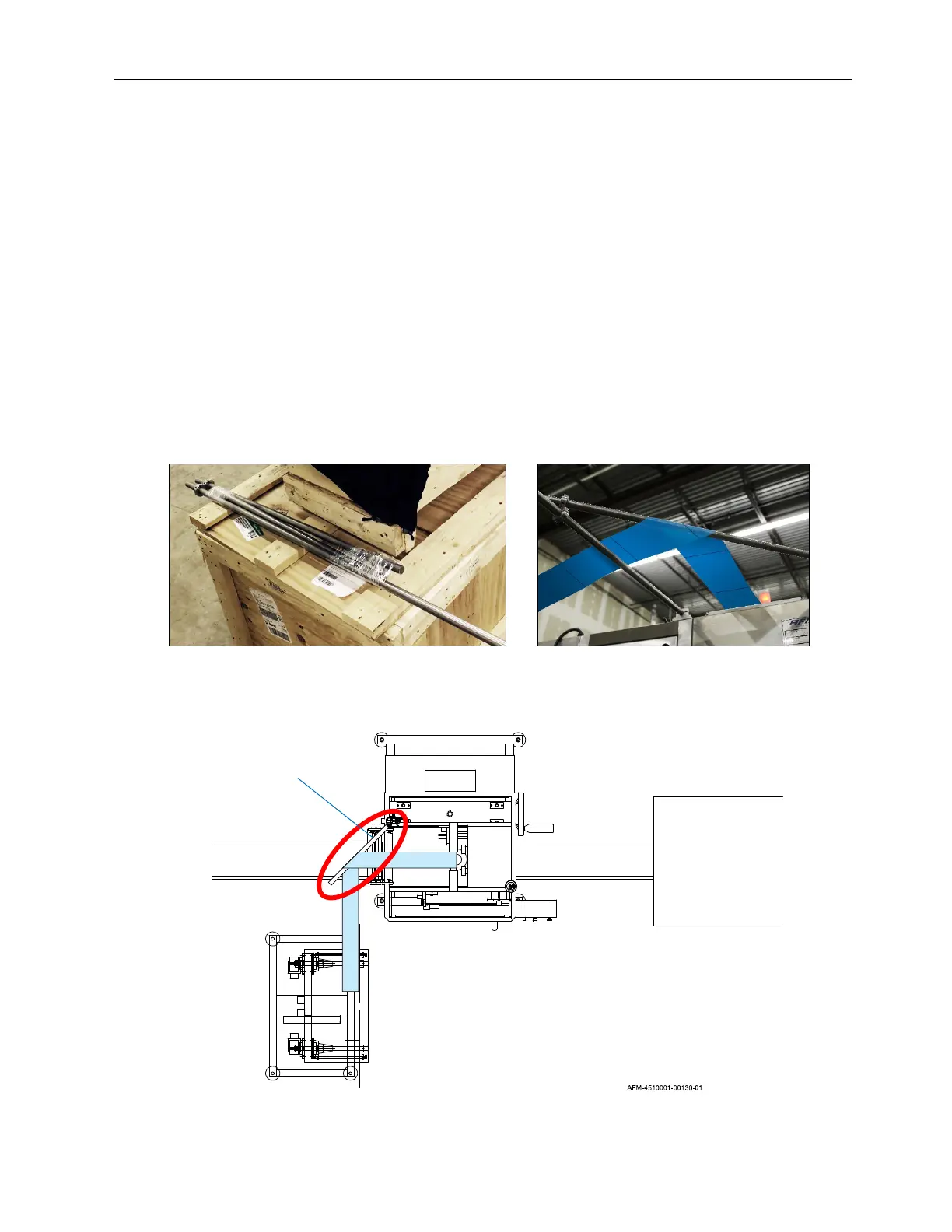

Turn Bar
Part Number 4503255
A Turn Bar is needed if the UR-1 is positioned at a 90° angle to the LX-150, rather than in
the recommended position at the Conveyor directly upstream from the LX-150. The Turn Bar
attaches to the top of the LX-150 near the Dancer and can be used to redirect the label film
at a 90° angle after it has left the UR-1 and enters the LX-150.
Turn Bar
Turn Bar
Turn Bar
(Top View)
LX-150
UR-1
AFM-4510001-00035-01
AFM-4510001-00034-02
Heat Shrink
Tunnel
To Next Page
