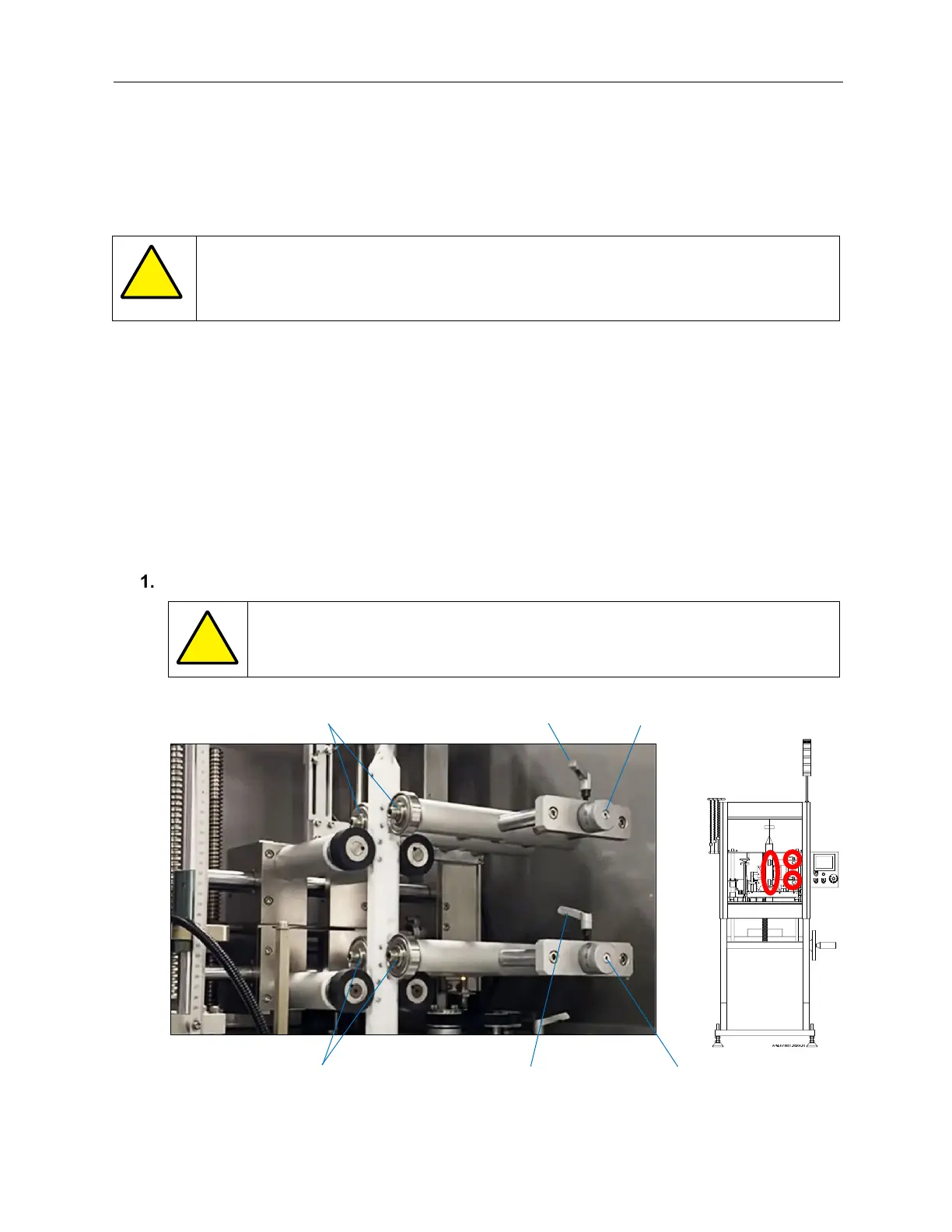

Support Wheels: Unlocking/Adjusting/Locking
Two sets of Support Wheels (Upper and Lower) rest against the Support Bearings on the
Mandrel, hold the Mandrel in place, and keep it from falling. Whenever adjusting the Support
Wheels, the Mandrel must be held firmly by hand to ensure that it does not fall.
ATTENTION: Failure to hold the Mandrel firmly by hand when loosening the
Support Wheels will result in the Mandrel falling, potentially damaging it and the
LX-150, and voiding the warranty.
The Support Wheels need to be loosened to remove the Mandrel or if they are so tight against
the Mandrel that the film cannot easily slide past. They need to be tightened enough to support
the Mandrel.
When installing the Mandrel, the Lower Support Wheels should be positioned first to help
support the weight of the Mandrel. When removing the Mandrel, the Upper Support Wheels
should be loosened first.
To Adjust the Lower Support Wheels:
Unlock the Lower Support Wheel Lock by turning it counterclockwise.
ATTENTION: Attempting to position the Upper Support Wheels when they
are locked can damage the LX-150 and void the warranty.
AFM-4510001-00229-01
Wheels
Wheel Lock
Wheel Adjust
Wheels
Wheel Adjust
Wheel Lock
To Next Page
