Chassis
The Chassis contains the main gears, motors and electronics for the LX-150. The Chassis
has three sections: front, center, and rear. Following the path of the film as it enters the LX-
150, the parts inside the Chassis are:

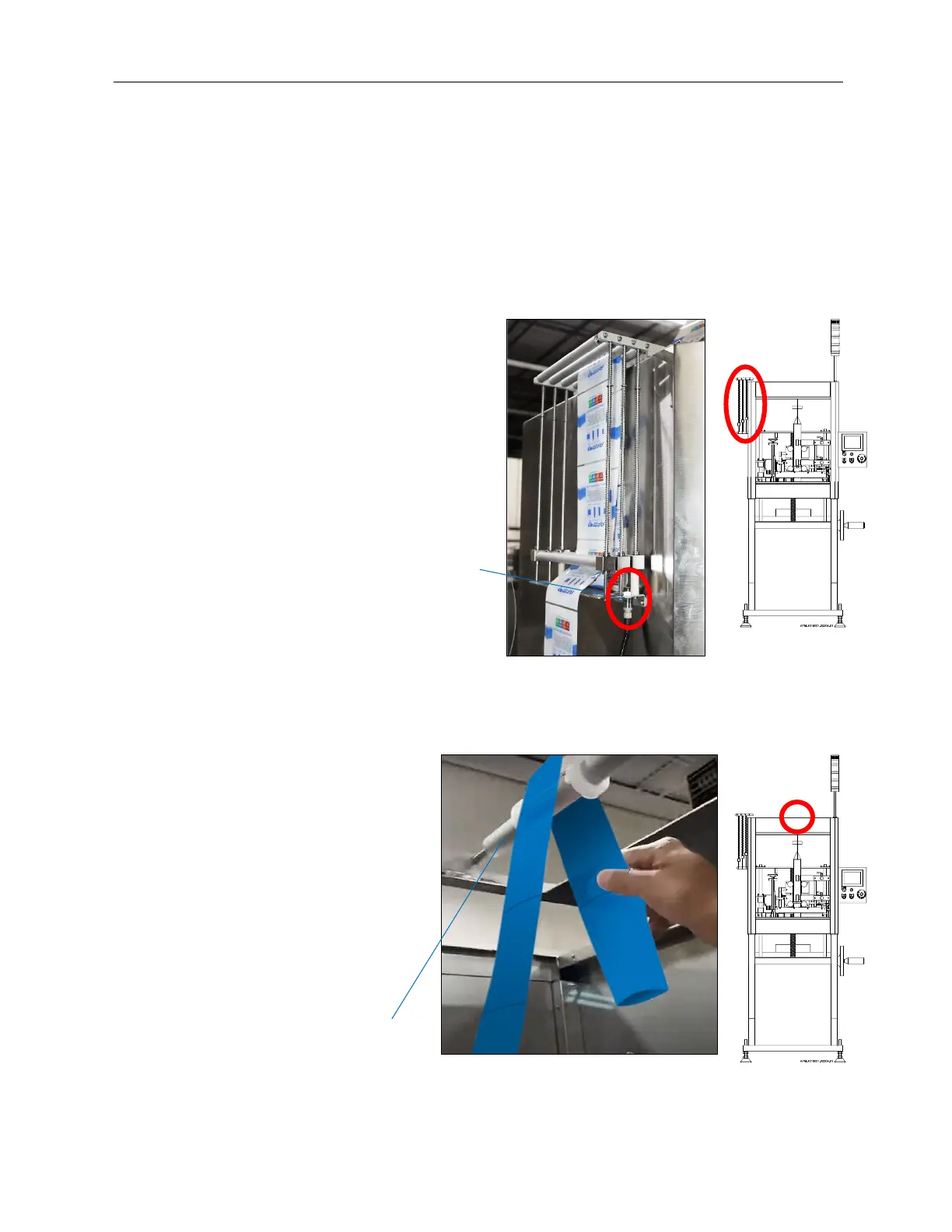

Dancer and Film Supply Sensor
Top Roller Bar
The Dancer has seven Rollers, the bottom
three of which are spring-loaded. The
label film winds through them as it enters
the LX-150, evening out the tension in the
film. The Film Supply Sensor mounted at
the bottom of the Dancer adjusts the
speed of the unwind, based on the
distance between the Sensor and the
innermost bottom Roller.
Film Supply
Sensor
AFM-4510001-00063-01
The Top Roller Bar ensures
that the path of the label
film is straight down onto
the Mandrel Fin. An
optional Top Roller Bar
Extension is available for
situations where it is
desirable for the label to
AFM-4510001-00198-01
Top
Roller Bar
