32 Introduction
4510001 REV B – 220620

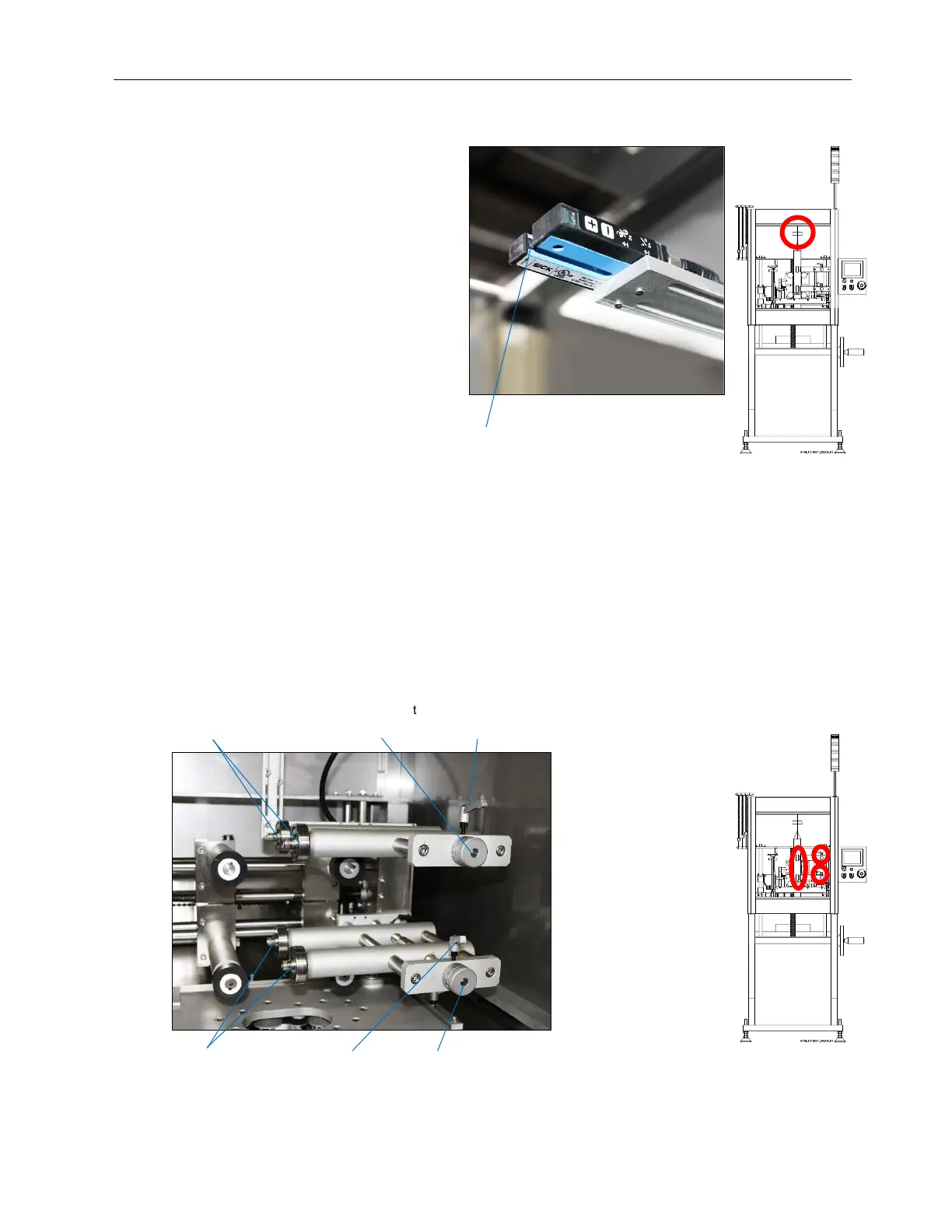

Print Reading Sensor
Support Wheels
The Print Reading Sensor fits
around the Mandrel Fin and shines
a beam through the slot in the
Mandrel Fin. The beam detects
when there is a clear gap in the
printing on the label film, and the
Print Reading Sensor conveys that
information to the Film Drive Wheels
to tell them how far to advance the
label film down the Mandrel, and
also communicates with the Cutter
Assembly to tell it when to cut the
film.
AFM-4510001-00109-02
Print
Reading
Sensor
Two sets of Support Wheels (Upper and Lower) hold the Mandrel in place. Each set
can be adjusted independently. To adjust each set, their Support Wheel Lock must first
be loosened. Turning the Support Wheel Adjust moves them in or out from the
Mandrel. Once in position, the Support Wheel Lock must be tightened to secure them
in place.
AFM-4510001-00111-01
Lower Support
Wheels
Lower Support
Wheel Lock
Lower Support
Wheel Adjust
Upper Support
Wheels
Upper Support
Wheel Adjust
Upper Support
Wheel Lock
To Next Page
