AFM LX-150 - Attaching the Power Plug

74 Installation
4510001 REV B – 220620
Attaching the Power Plug
Once the LX-150, UR-1, Timing Screw, Brushdown Assemblies, and any other peripherals
are in place, the LX-150 needs to be connected to a grounded 3-Phase 208-240V, 50/60 Hz
AC power source.
Items Needed for Attach the Power Plug:
• Licensed electrician
• Proper Plug Connection (not included) for the end of the Power Cable:
3-phase, 208-240V 50/60 Hz, grounded
• Code-compliant, 3-phase, 208-240V 50/60 Hz grounded AC power supply
To Attach the Power Plug:
Locate the Power Cable on the front downstream side of the Electronics Cabinet of
the LX-150.
The LX-150 requires a 3-phase, 220V 50/60 Hz grounded power supply. A licensed
electrician will need to attach the proper Plug Connection to the end of the system’s
Power Cable.
Plug the LX-150 into a code-compliant, 3-phase, 220V 50/60 Hz grounded AC power
supply.

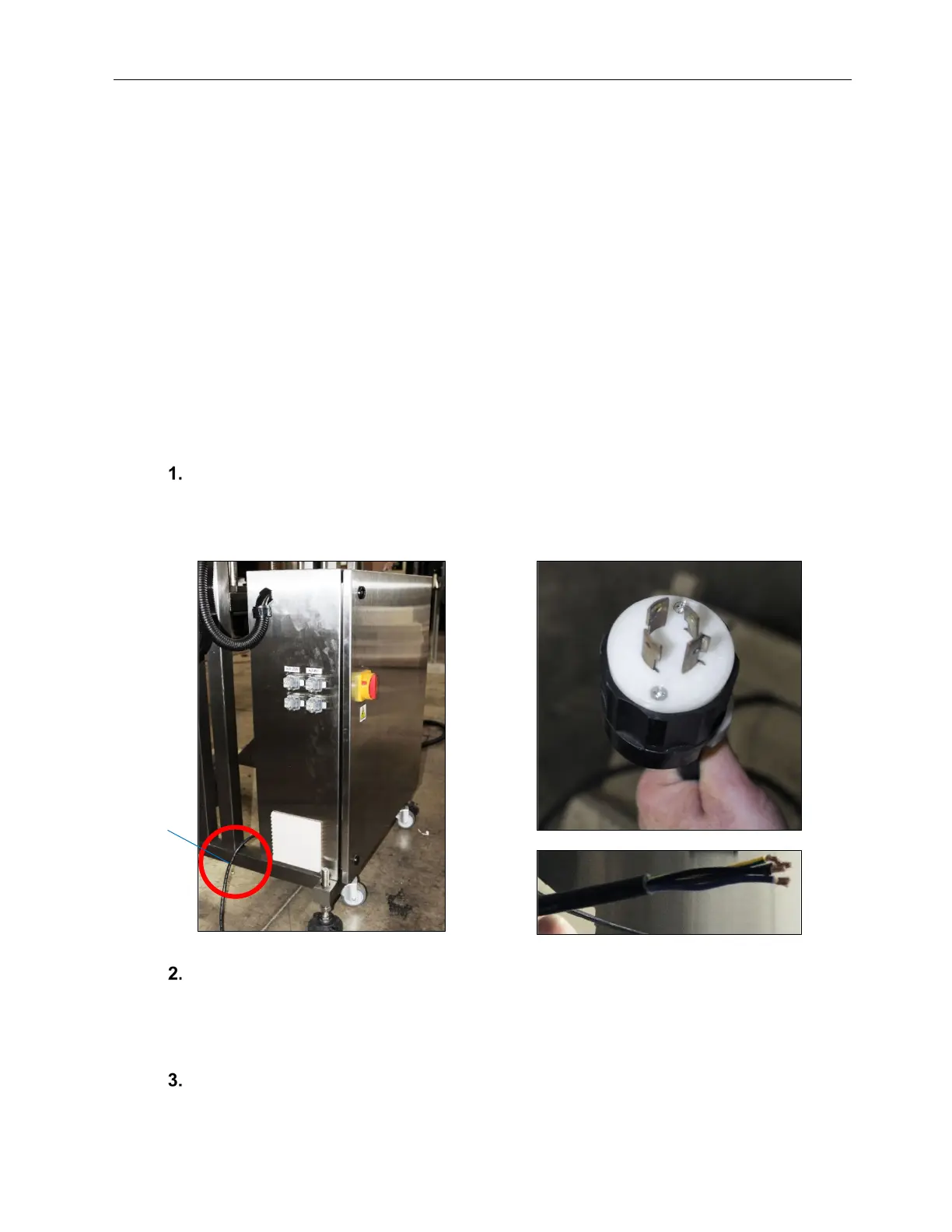

Attaching a 3-Phase Plug
Power
Cable
AFM-4510001-00140-01
AFM-4510001-00139-01
AFM-4510001-00053-01
