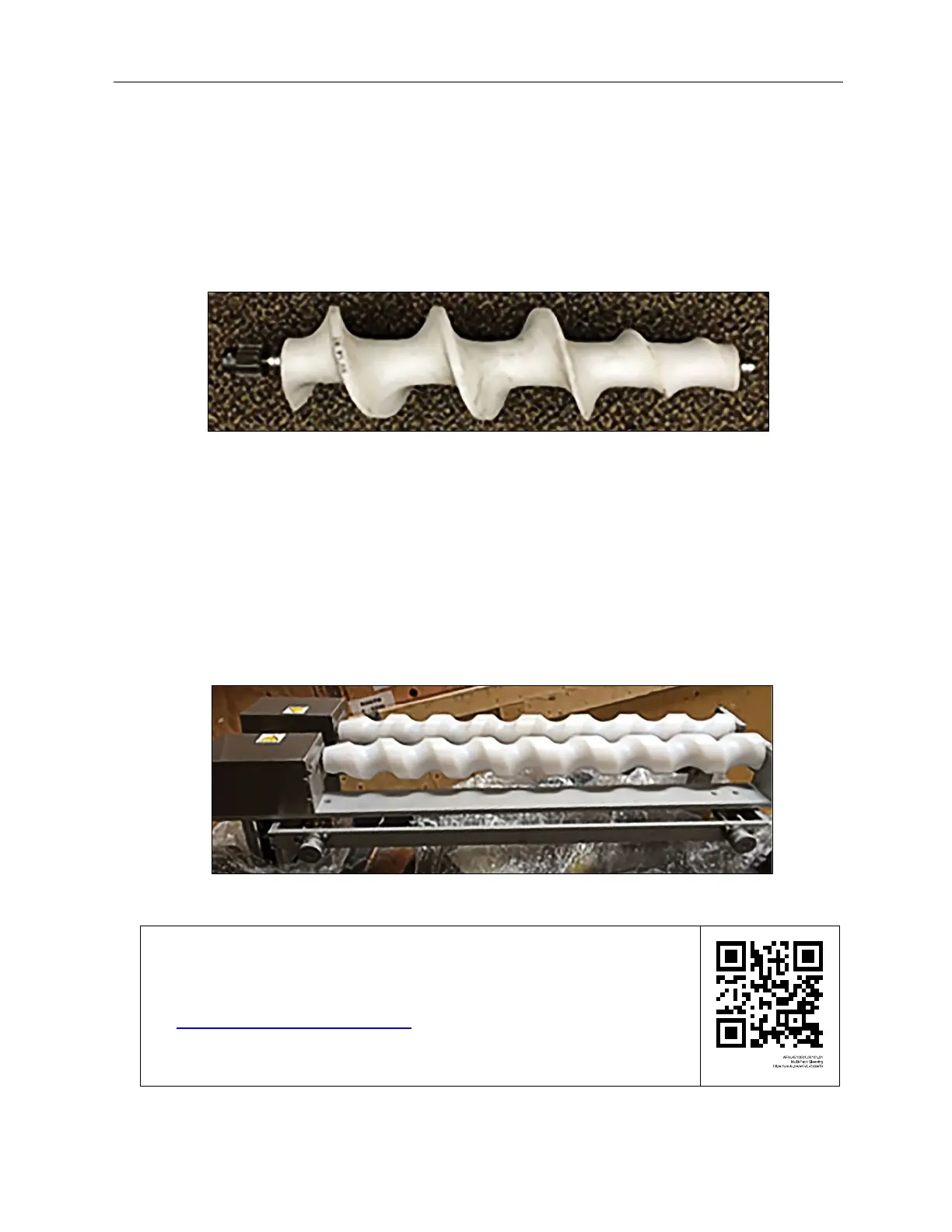

Irregular Timing Screw
Irregular Timing Screws guide irregularly shaped (non-cylindrical) products on the Conveyor
Belt into the LX-150. For example, when a bottle’s cross-section is a square, the Timing
Screw must not only keep the bottles flowing into the LX-150 at a consistent pace, but must
also ensure that they are correctly aligned to receive a label from the Mandrel.
Dual Timing Screw
A Dual Timing Screw is used for irregularly shaped containers (square, rectangular, oval) or
when using labels to bundle multiple containers at once.
VIDEO: Multi-Pack Sleeving
To see a video of multi-pack sleeving using a Dual Timing Screw,
click this link:
https://youtu.be/wCvL-Gp2wTo
Or scan the QR code at right using the camera app on your mobile
device.
Irregular Timing Screw
AFM-4510001-00043-01
AFM-4510001-00044-01
Dual Timing Screw
