AFM LX-150 - Housing Assembly Parts

232 Diagrams and Parts Lists
4510001 REV B – 220620

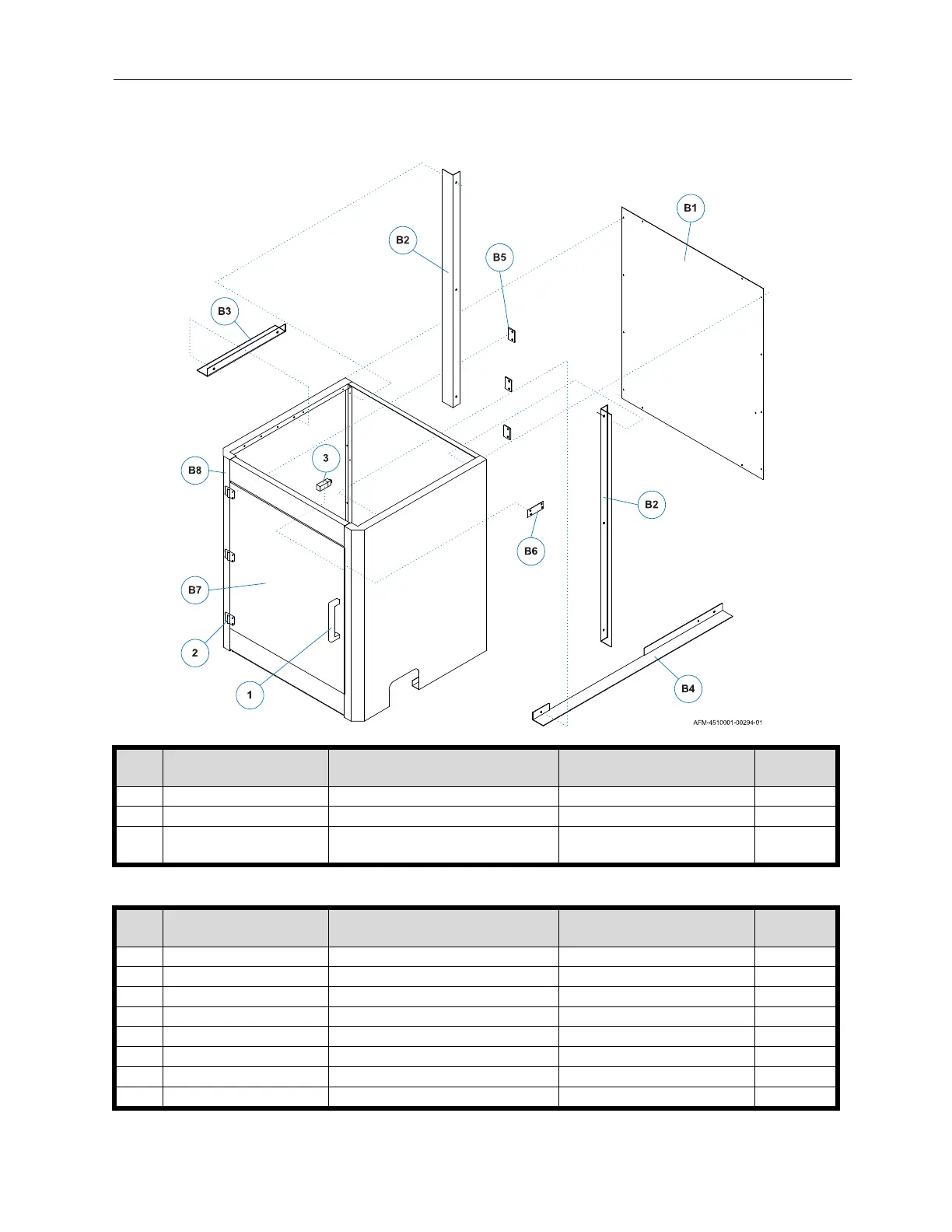

Housing
Item Part Number Description Specification Quantity
1
4500250
PULLS – AGS200
5BC03AGS200
1
2
4500892
HINGES – 14104
5BC4514104
3
3 4501419
SAFETY SWITCH –
QKS-8 AC400V2A
5AB17QKS8 1
Item Part Number Description Specification Quantity
B1
4503772
PANELS
LG150T-BP03
1
B2
4503773
PANELS
LG150T-BP07
2
B3
4503774
PANELS
LG150T-BP08
1
B4
4503775
PANELS
LG150T-BP09
1
B5
4503776
PLATES
LG150T-BP11
3
B6
4503777
PLATES
LG150T-BP13
1
B7
4503778
DOOR
LG150T-BC03X1
1
B8
4503779
HEAD FRAME
LG150T-BP16
1
