Installation 63
4510001 REV B - 220620
Alternate Positioning
In some cases, the UR-1 must be oriented at a right angle to the LX-150, rather than in
direct line with the LX-150. In these situations, the label film must turn at a right angle into
the Dancer. To accomplish this, a Turn Bar must be installed.
Items Needed to Perform Alternative Positioning:
• Sturdy Ladder
• Large Crescent Wrench
• Total of at least 3 people to move the UR-1
• Level
• Laser Level
• Large Crescent Wrench
To Perform Alternative Positioning:

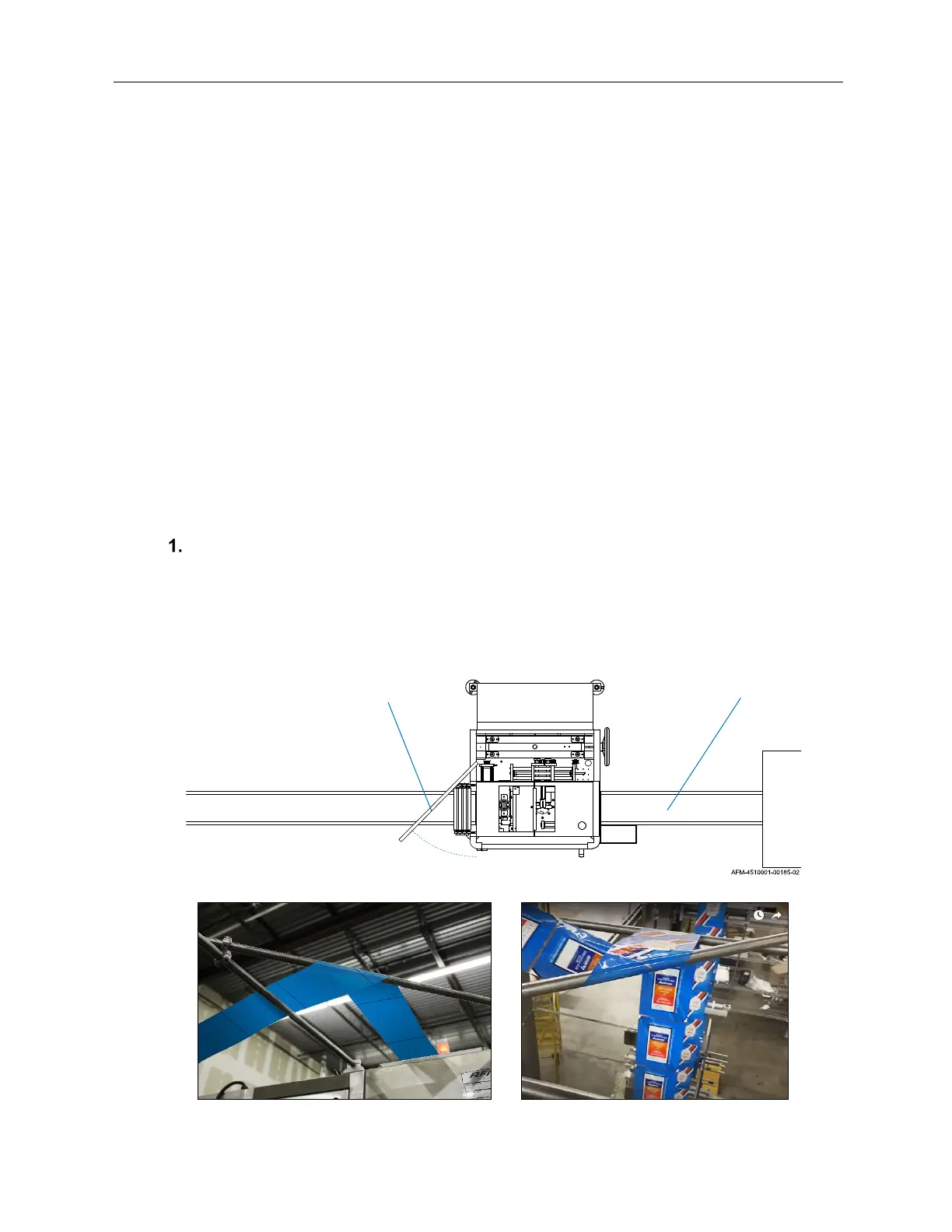

Mount the Turn Bar to the top left (upstream) side of the LX-150, so that the Turn Bar
extends horizontally at approximately a 45° angle above the Dancer, as shown:
Installing the Turn Bar (View from Above)
LX-150
Conveyor
Heat
Shrink
Tunnel
Turn Bar
45°
AFM-4510001-00034-01
