Place the UR-1 at a 90° angle to the LX-150, as shown below.
Use the laser level to determine where the centerline of the Conveyor intersects with
the Turn Bar.
Fine tune the UR-1 so that the centerline of a roll of label film on the Film Spool
points directly at spot shown by the laser level.
Place the Level on the Splicing Table, and use the Crescent Wrench to adjust the
Feet of the UR-1 so that the Splicing Table is level.

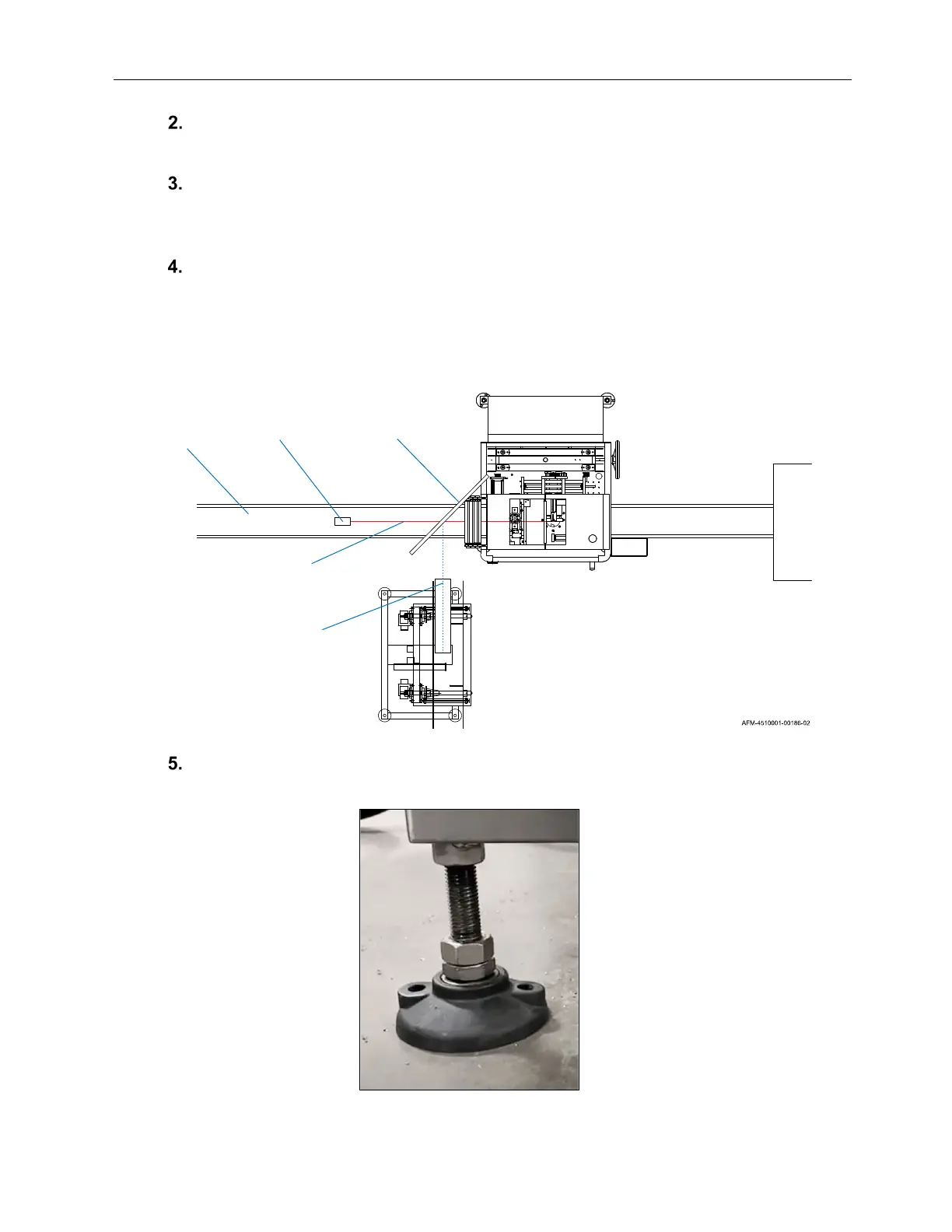

Fine-Tuning the Alternative UR-1 Position (View from Above)
LX-150
Heat
Shrink
Tunnel
Turn Bar
Centerline
of Label
Film
UR-1
Conveyor
Laser Level
Centerline
of Conveyor
AFM-4510001-00173-01
