Fine-Tuning the LX-150 Position
Stable and precise positioning is essential to the proper functioning of the LX-150.
VIDEO: Equipment Setup
To see a video of this procedure, click this link:
https://youtu.be/shn5o7MZXbM
Or scan the QR code at right using the camera app on your mobile
device.
Time: 0:50 – 1:42
Items Needed to Fine-Tune the LX-150 Position:
• Total of at least 3 people to move the machine
• Large Crescent Wrench
• Level
• Laser Level
• Tape Measure
To Fine-Tune the LX-150 Position:
Align the center line of the Mandrel with the center line of the Conveyor:
a. Place a sample bottle in the center of the Conveyor Belt directly below the
Mandrel.
b. Use the Tape Measure to place the Laser Level precisely in the center of the
Conveyor, downstream from the LX-150 and aimed toward the LX-150, as shown
below.

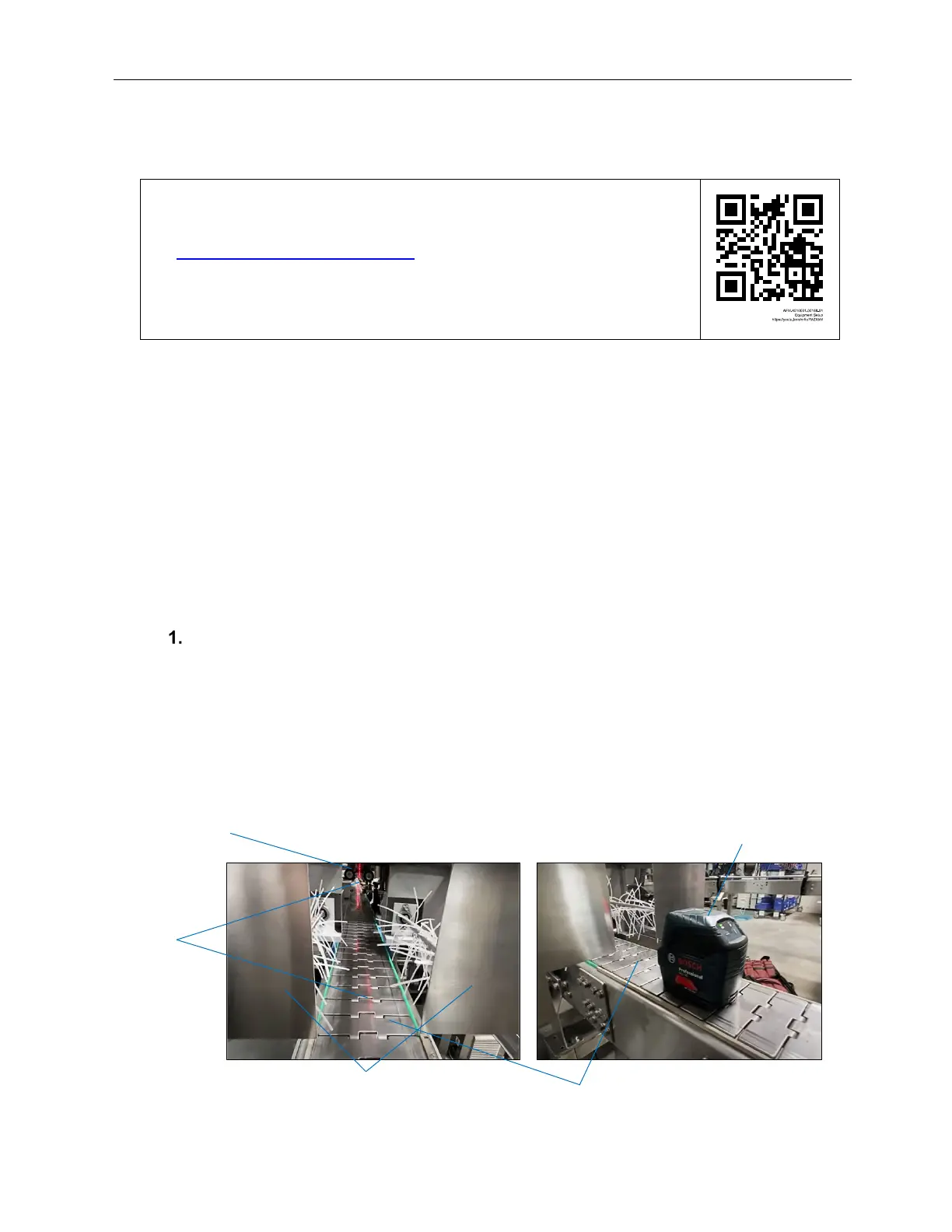

Mandrel Position (View from Downstream Side)
Laser
Beam
Mandrel
AFM-4510001-00170-01
AFM-4510001-00171-01
Brushdown Assemblies
(Not Installed Yet)
Conveyor
Laser Level
To Next Page
