Installation 61
4510001 REV B - 220620

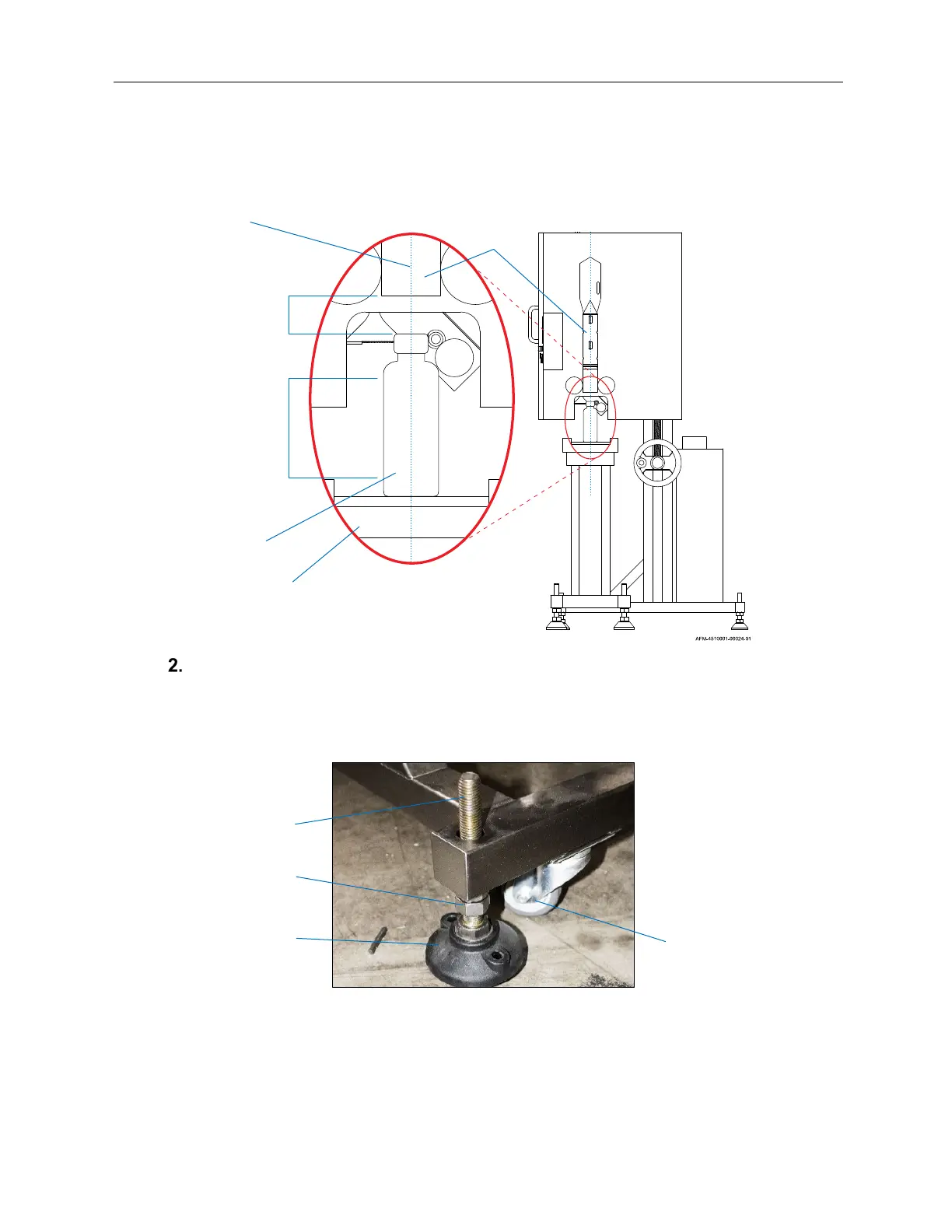

c. Roll the LX-150 until the center axis of the Mandrel lines up precisely with the
center axis of the bottle, as shown below.
Secure the LX-150’s fine-tuned position:
a. Being careful not to change the position of the LX-150, use the Crescent Wrench
to turn the Nut on each Leg of the LX-150 so that the Feet so that the unit can no
longer roll on the Casters.
b. Using a Level and the Crescent Wrench, fine-tune the height of each Leg and
level the machine.
c. Attach the Conveyor Braces to secure the Conveyor to the LX-150 and maintain
the correct centerline position.
Bottle
Mandrel Position (View from Downstream Side)
Conveyor
Mandrel
Central Axis
Half a Label
Length
Label
Length
AFM-4510001-00089-01
Nut
Foot
Leg
Caster
To Next Page
