50 Installation
4510001 REV B – 220620
Installing the UR-1
VIDEO: Film Setup Guide
To see a video of this procedure, click this link:
https://youtu.be/bLK238uuRn0
Or scan the QR code at right using the camera app on your mobile
device.
VIDEO: Equipment Setup
To see a video of this procedure, click this link:
https://youtu.be/shn5o7MZXbM
Or scan the QR code at right using the camera app on your mobile
device.
Time: 1:41 – 1:49
Items Needed to Install the UR-1:
• Forklift • Level
• At least 3 people to move the machine • Laser Level
• Large Crescent Wrench • Ruler
To Install the UR-1:
Have a licensed Forklift operator remove the UR-1 from its shipping container.
Move the UR-1 generally into position upstream from the LX-150, as shown in the
diagrams below.

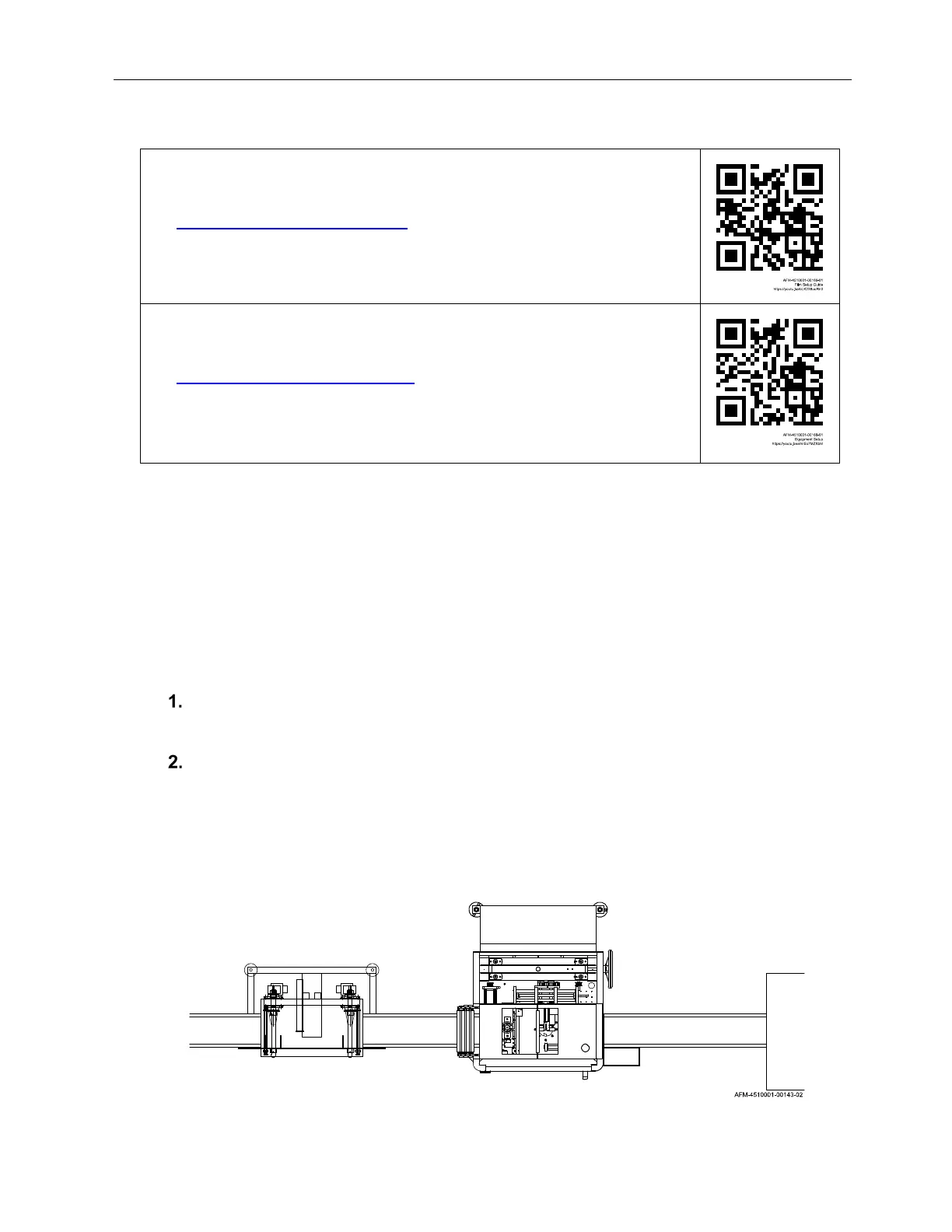

Positioning the UR-1 (View from Above)
LX-150
Heat
Shrink
Tunnel
UR-1
To Next Page
