162 Maintenance
4510001 REV B – 220620

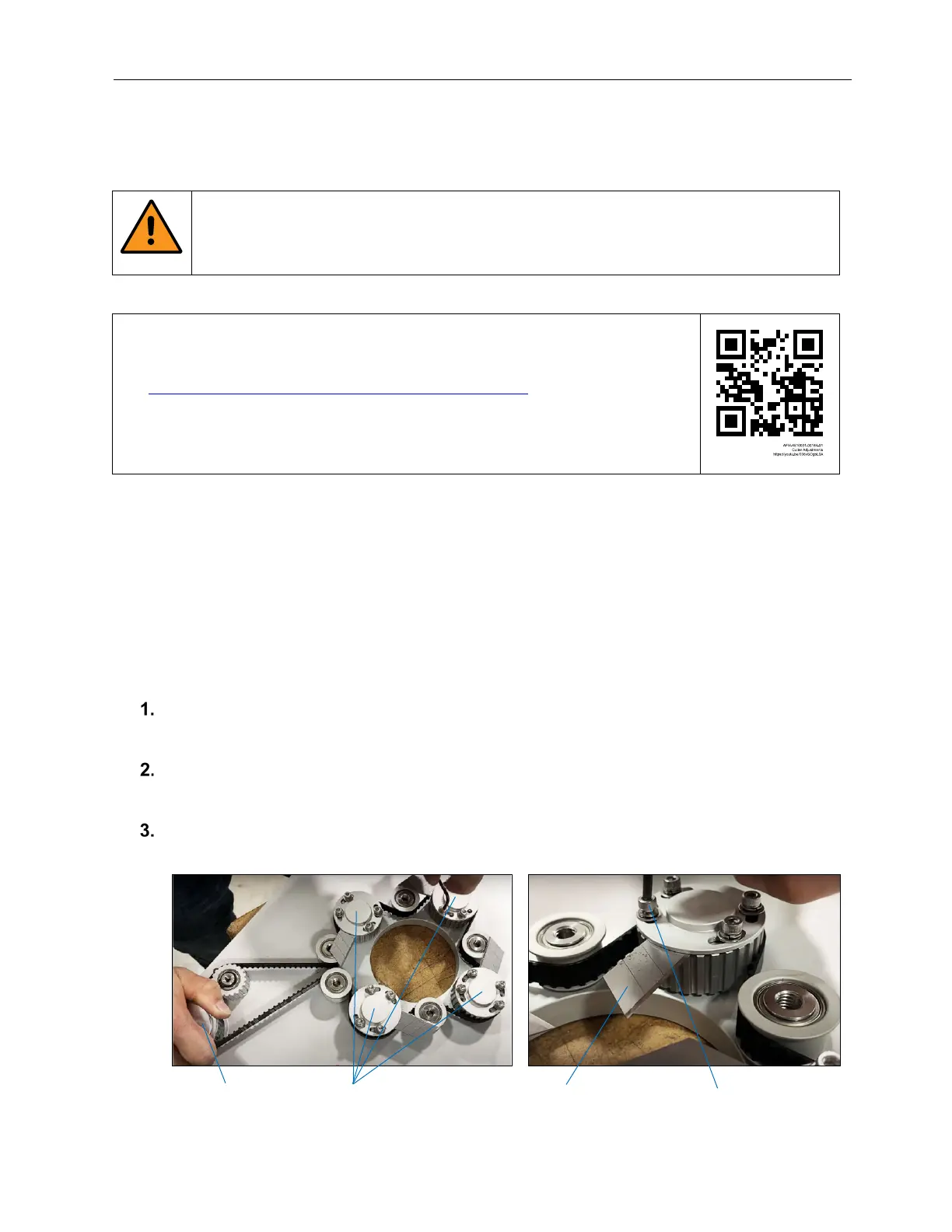

Replacing the Cutter Blades
At least every 3 weeks, or when the Cutter Blades become dulled, they need to be replaced.
WARNING: While the Blades may eventually lose enough sharpness to
consistently cut labels smoothly, they are still sharp enough to cause severe cuts.
When handling the Cutter Assembly, use extreme caution.
VIDEO: Cutter Adjustments
To see a video of this procedure, click this link:
https://www.youtube.com/watch?v=036vSOgbL0A
Or scan the QR code at right using the camera app on your mobile
device.
Time: 0:50 – 2:52
Items Needed to Replace the Cutter Blades:
• Allen Wrench (included in Tool Kit)
• Cut-Resistant Work Gloves
• New Cutter Blades (Part Number 4501151)
To Replace the Cutter Blades:
Remove the Mandrel (see “Removing the Mandrel” on page 152).
Remove the Cutter Assembly (see “Removing the Cutter Assembly” on page 160).
Remove the old Cutter Blades (there may be a different number of Cutter Blades than
shown):
Cutter Drive Pulley
Cutter Blade
AFM-4510001-00252-01
AFM-4510001-00247-01
Cutter Blade Housing
To Next Page
