30 Introduction
4510001 REV B – 220620

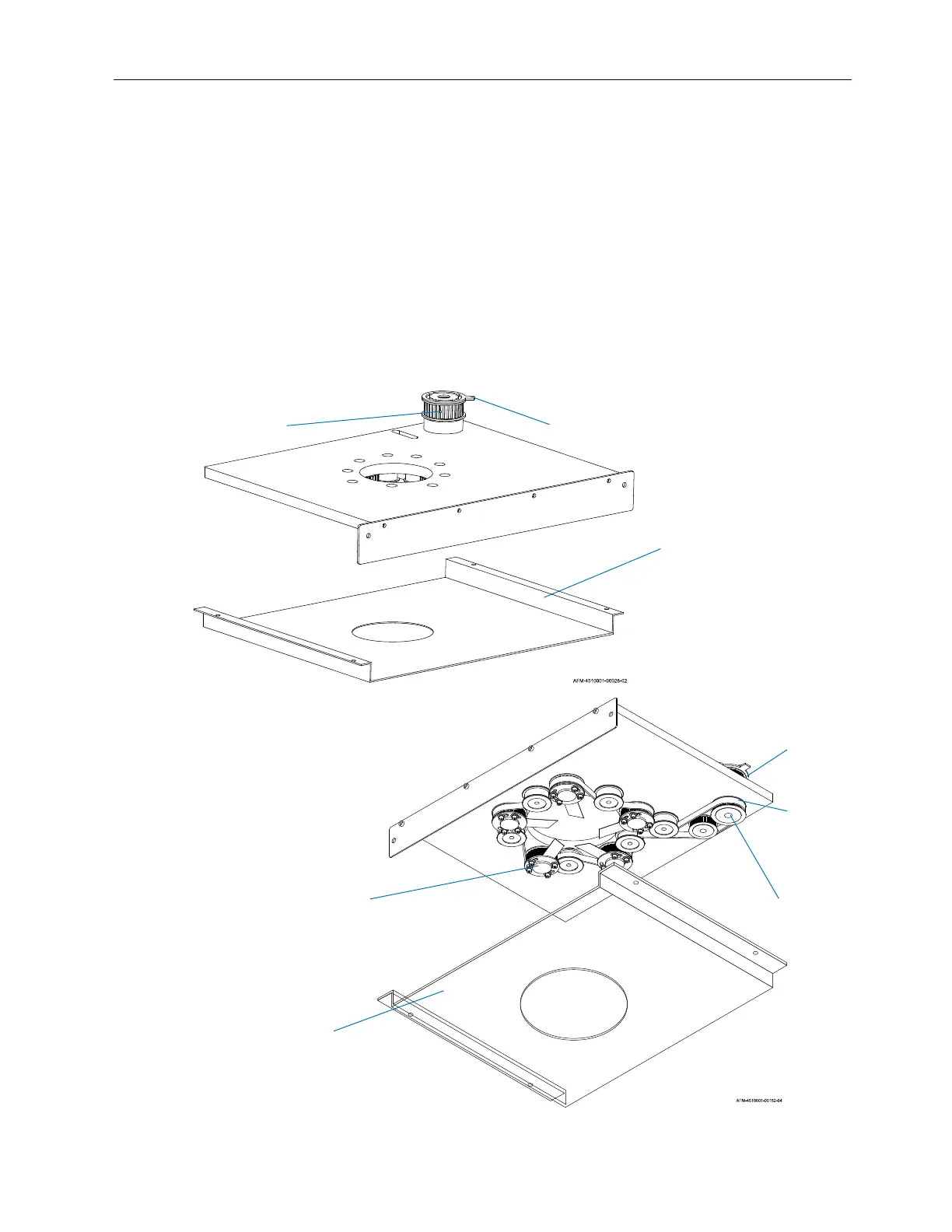

Cutter Assembly
The Cutter Assembly is a set of Blades that surround the lower part of the Mandrel and cut
the label film to the correct label size. The Cutter Assembly slides horizontally into the
Chassis of the LX-150 like a drawer,
• The Mandrel then slides vertically through the large hole in the Cutter Assembly.
• The Cutter Home Position Sensor inside the Chassis must see the Cutter Home Tab
on the Cutter Drive Pulley for the LX-150 to operate.
• When the cut mark in the label material passes across the Cutter Notch in the
Mandrel, the Print Reading Sensor triggers the Blade Assemblies to quickly rotate
the Blades 360° through the Cutter Notch, cutting through the label film.
Cutter
Cutter Drive
Pulley
Cutter
Home Tab
Cutter
Guard
Blade
Assemblies/
Blades
Cutter Motor
Drive Wheel
Timing
Belt
Cutter
Home Tab
