Applicator Wheels: Unlocking/Adjusting/Locking
The Applicator Wheels, resting against the Applicator Bearings toward the bottom of the
Mandrel, shoot the cut label off the end of the Mandrel and onto the passing product.
ATTENTION: If the Applicator Wheels are too tight against the Applicator Bearings,
they can damage the Mandrel, the Applicator Wheels, and the Applicator
Assembly.
VIDEO: Applicator Wheel Adjustment
To see a video of this procedure, click this link:
https://youtu.be/ZNER7s69QEA
Or scan the QR code at right using the camera app on your mobile
device.
The Applicator Wheels should lightly touch the Applicator Bearings. If they are too tight against
the Applicator Bearings, they will damage the label film and can potentially damage the machine
itself. If they are too loose, they will not consistently shoot the labels onto the products.

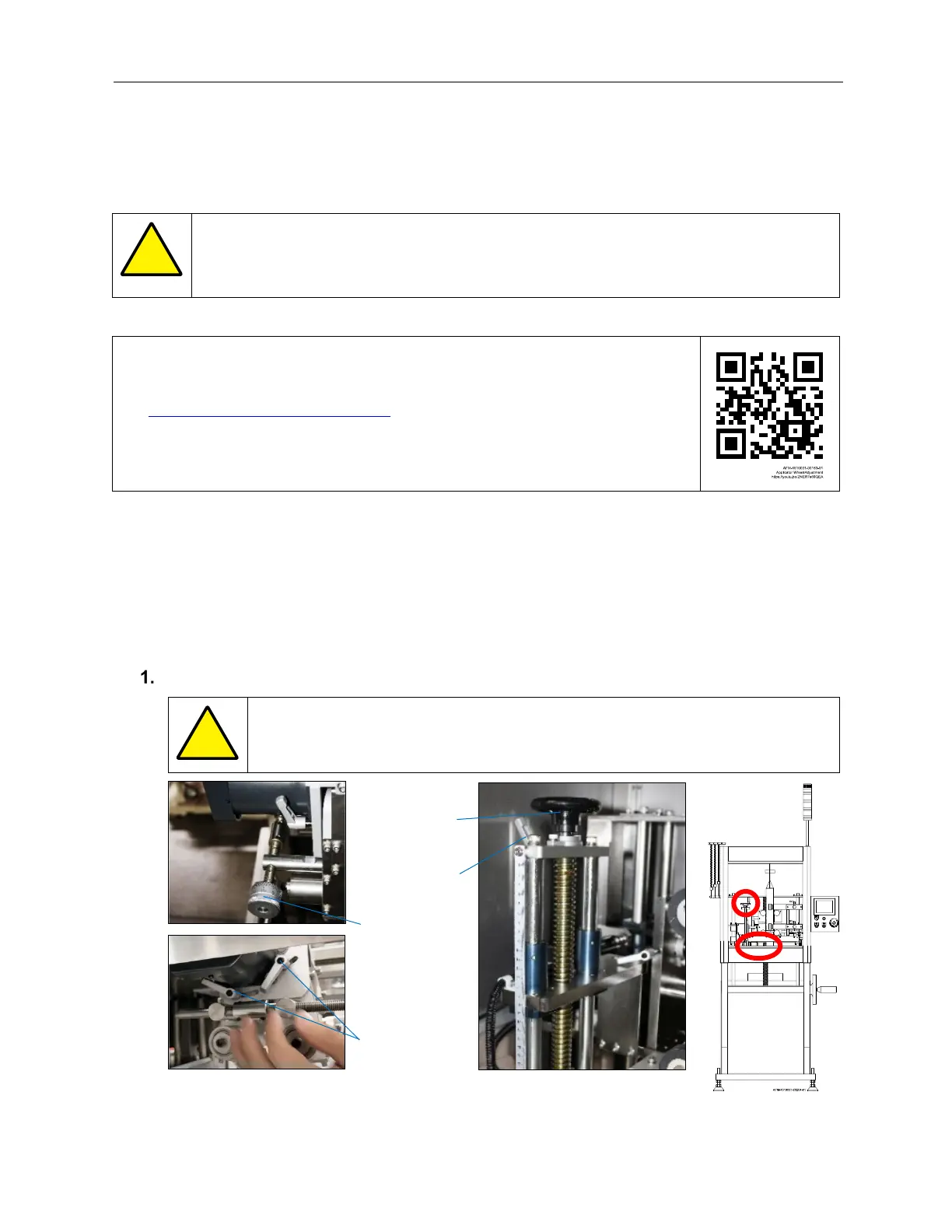

To Loosen/Adjust the Applicator Wheels (Manually):
Unlock the Applicator Wheel Vertical and Horizontal Locks.
ATTENTION: Attempting to adjust the Applicator Wheels when they are
locked can damage the LX-150 and void the warranty.
Applicator Wheel
Vertical Lock
AFM-4510001-00098-01
AFM-4510001-00049-01
Applicator Wheel
Vertical Adjust
AFM-4510001-00230-01
Applicator Wheel
Horizontal Locks
Applicator Wheel
Horizontal Adjust
AFM-4510001-00049-01
To Next Page
