116 Common Procedures
4510001 REV B – 220620

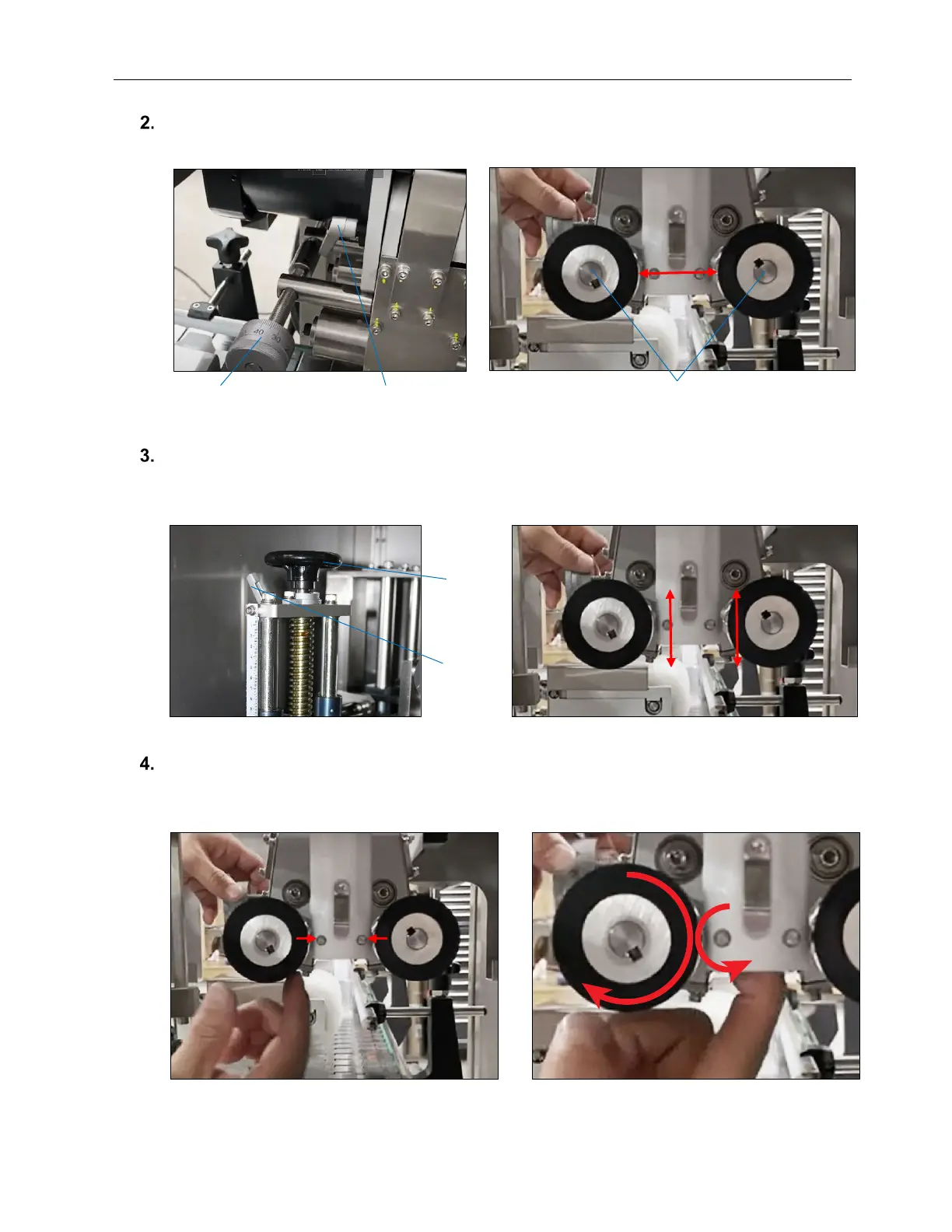

Turn the Applicator Wheel Horizontal Adjustment Knob to move the Applicator Wheels
out from the Mandrel.
Turn the Applicator Wheel Vertical Adjustment Knob to move the Applicator Wheels up
or down along the length of the Mandrel until they are directly adjacent to the Applicator
Bearings on the Mandrel.
Turn the Applicator Wheel Horizontal Adjustment Knob to move the Applicator Wheels in
toward the Mandrel until they lightly touch the Applicator Bearings. With a finger in the
underside of the Mandrel, spin the Applicator Bearings. They should still spin easily.
AFM-4510001-00231-01
Applicator Wheel
Horizontal Lock
Applicator Wheel
Horizontal Adjust
AFM-4510001-00232-01
Applicator
Wheels
AFM-4510001-00232-01
AFM-4510001-00098-01
Applicator
Wheel
Vertical
Lock
Applicator
Wheel
Vertical
Adjust
AFM-4510001-00234-01 AFM-4510001-00233-01
