Installing the Brushdown Assemblies
The LX-150 sometimes shoots labels down onto bottles with such force that the labels may
bounce up off the Conveyor or Auxiliary Belt / Bottle Holding Device and slide partly back up
the length to the bottle. In these cases, heat shrinking the labels onto the bottle would
product undesirable results. To ensure that the labels are pushed down into the correct
location on the bottle, the Brushdown Assemblies needs to be installed immediately
downstream from the LX-150 (and upstream from the Heat Shrink Tunnel).
VIDEO: Equipment Setup
To see a video of this procedure, click this link:
https://youtu.be/shn5o7MZXbM
Or scan the QR code at right using the camera app on your mobile
device.
Time: 2:12 – 1:52
VIDEO: Machine Adjustments and Fine Tuning
To see a video of this procedure, click this link:
https://youtu.be/Q3k865kFjmw
Or scan the QR code at right using the camera app on your mobile
device.
Time: 1:00 – 1:18
Items Needed to Install the Brushdown Assemblies:
• Crescent Wrench
• Alan Wrench
To Install the Brushdown Assemblies:
Use the Alan Wrench to bolt the Brushdown Mounts to either side of the Conveyor.

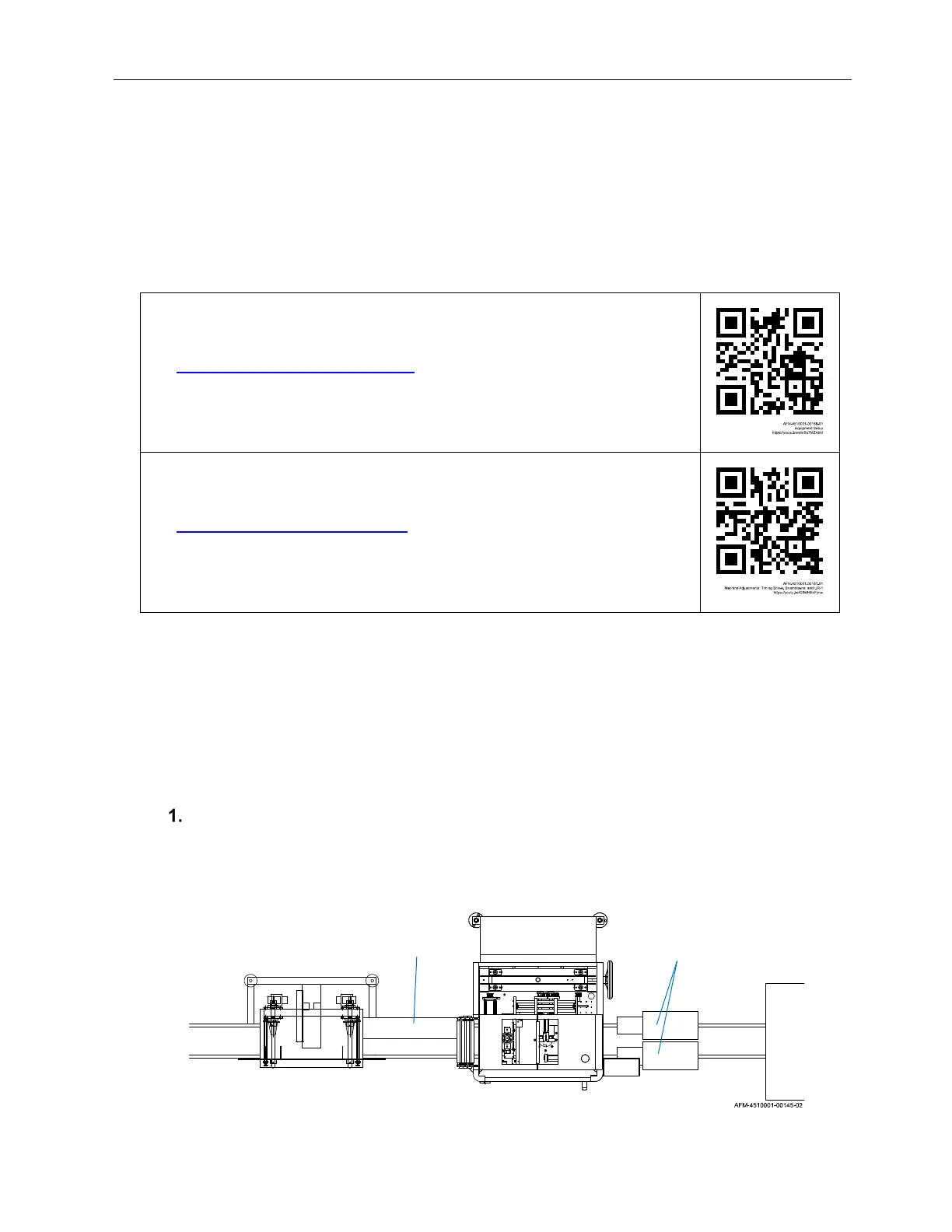

Positioning the Brushdown Assemblies (View from Above)
LX-150
Heat
Shrink
Tunnel
UR-1
Timing
Screw
Brushdown
Assemblies
