AFM LX-150 - Page 71

Installation 71
4510001 REV B - 220620
The Mounts should be directly across the Conveyor from each other, and
immediately downstream from the LX-150.
Lift each Brushdown Unit onto a Mount. The Brushdown’s Motor should be on the
upstream side, and the bristles should be exposed to the centerline of the Conveyor.

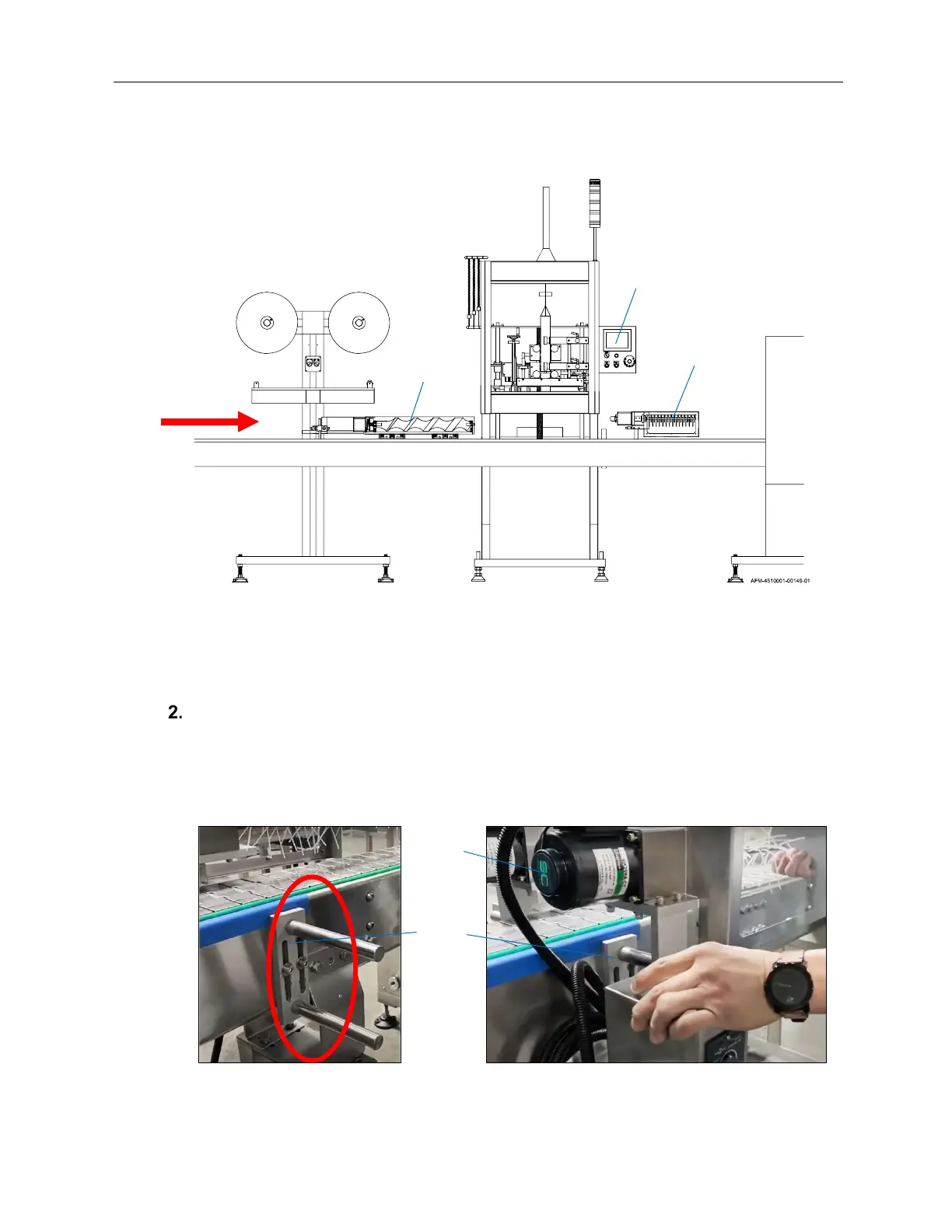

Positioning the Brushdown Assemblies (View from Front)
Timing
Screw
LX-150
HMI
Brushdown
Assembly
Product
Flow
Heat
Shrink
Tunnel
UR-1
Mounting the Brushdown Assemblies
AFM-4510001-00179-01
AFM-4510001-00180-01
Brushdown
Mount
Brushdown
Motor
