Installation 65
4510001 REV B - 220620

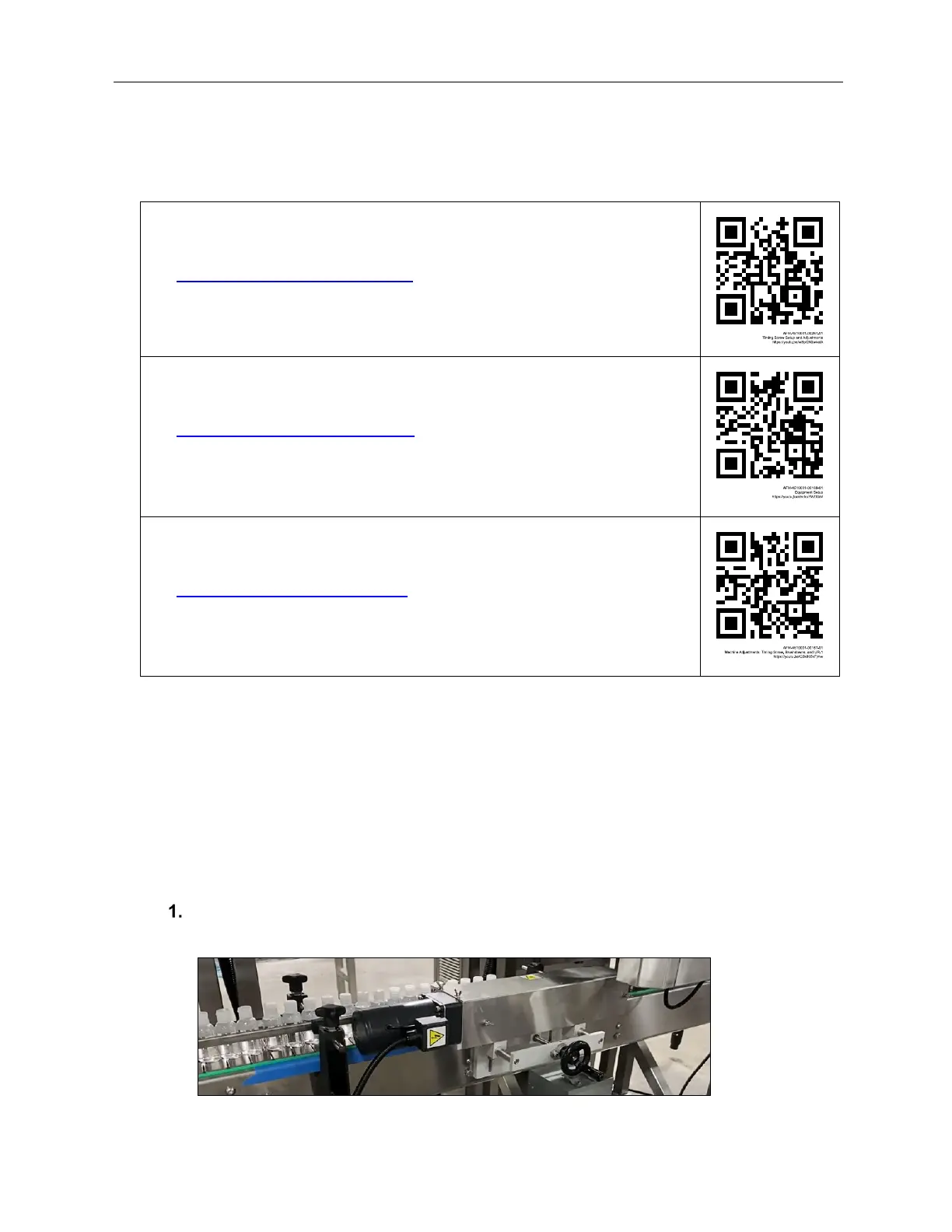

Installing the Timing Screw Assembly
The Timing Screw Assembly is needed to regulate the flow of bottles so that they are
centered on the Conveyor and are evenly spaced as they enter the LX-150.
VIDEO: Timing Screw Setup and Adjustments
To see a video of this procedure, click this link:
https://youtu.be/wBpQN2wkafA
Or scan the QR code at right using the camera app on your mobile
device.
VIDEO: Equipment Setup
To see a video of this procedure, click this link:
https://youtu.be/shn5o7MZXbM
Or scan the QR code at right using the camera app on your mobile
device.
Time: 1:50 – 2:12
VIDEO: Machine Adjustments and Fine Tuning
To see a video of this procedure, click this link:
https://youtu.be/Q3k865kFjmw
Or scan the QR code at right using the camera app on your mobile
device.
Time: 0:00 – 1:01
Items Needed to Install the Timing Screw Assembly:
• Crescent Wrench
• Alan Wrench
• Laser Level
To Install the Timing Screw Assembly:
Use the Alan Wrench to bolt the Timing Screw Assembly to the side of the Conveyor,
with the closest end at least 12″ (30.5 cm) upstream from the Mandrel.
