Introduction 33
4510001 REV B - 220620

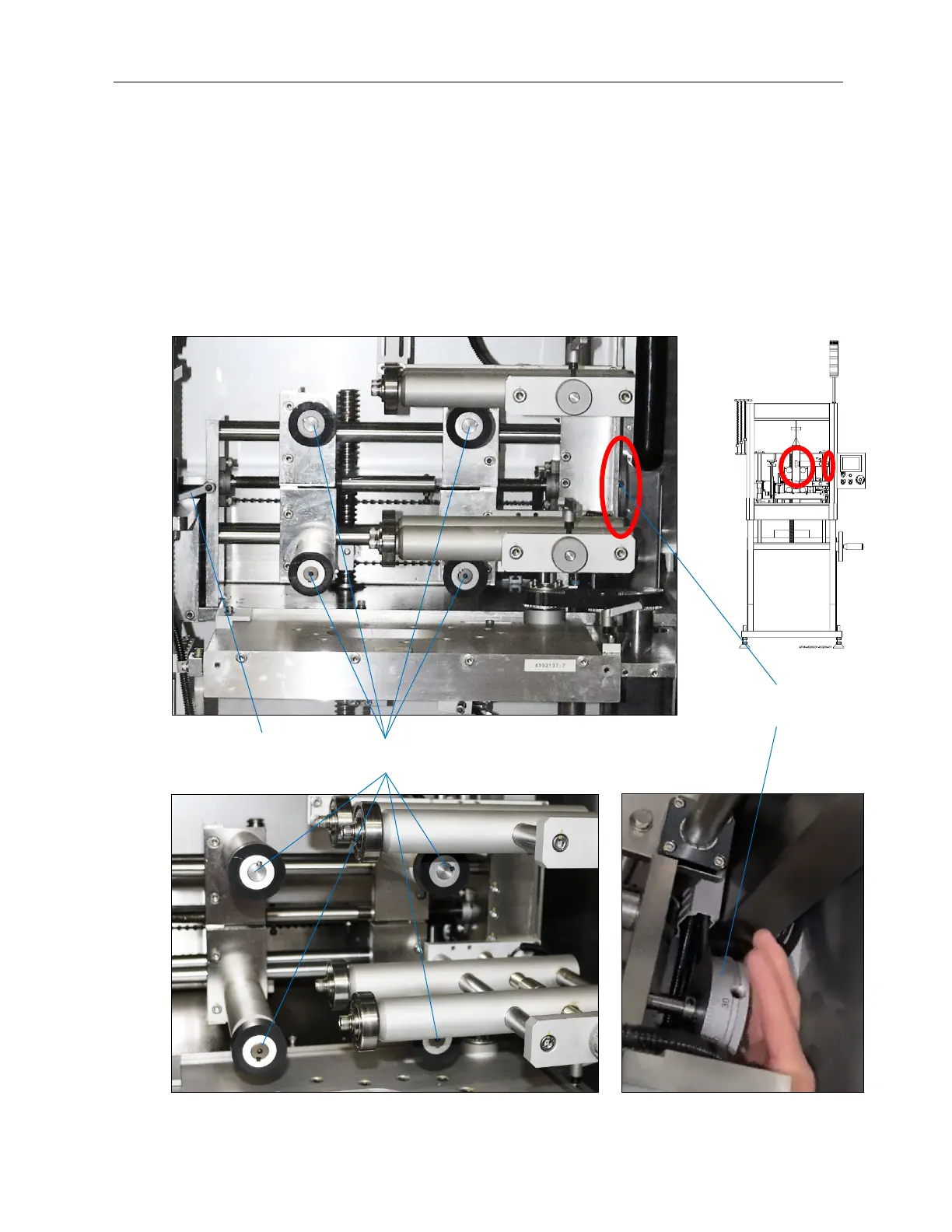

Film Drive Wheels
Two sets of Film Drive Wheels also hold the Mandrel in place. The lower set of Film
Drive Wheels is also powered by a Servo Motor and serve the additional purpose of
advancing the label film down the length of the Mandrel. The Upper and Lower Film
Drive Wheels are adjusted together. To adjust them, the Film Drive Wheel Lock must
first be loosened, and then the Film Drive Wheel Adjust can be turned to move the
Wheels in or out from the Mandrel. Once in position, the Film Drive Wheel Lock must
be tightened again to secure them in place.
Film Drive
Wheels
Film Drive
Wheel Adjust
Film Drive
Wheel Lock
AFM-4510001-00150-01
AFM-4510001-00111-01
AFM-4510001-00155-01
