34 Introduction
4510001 REV B – 220620

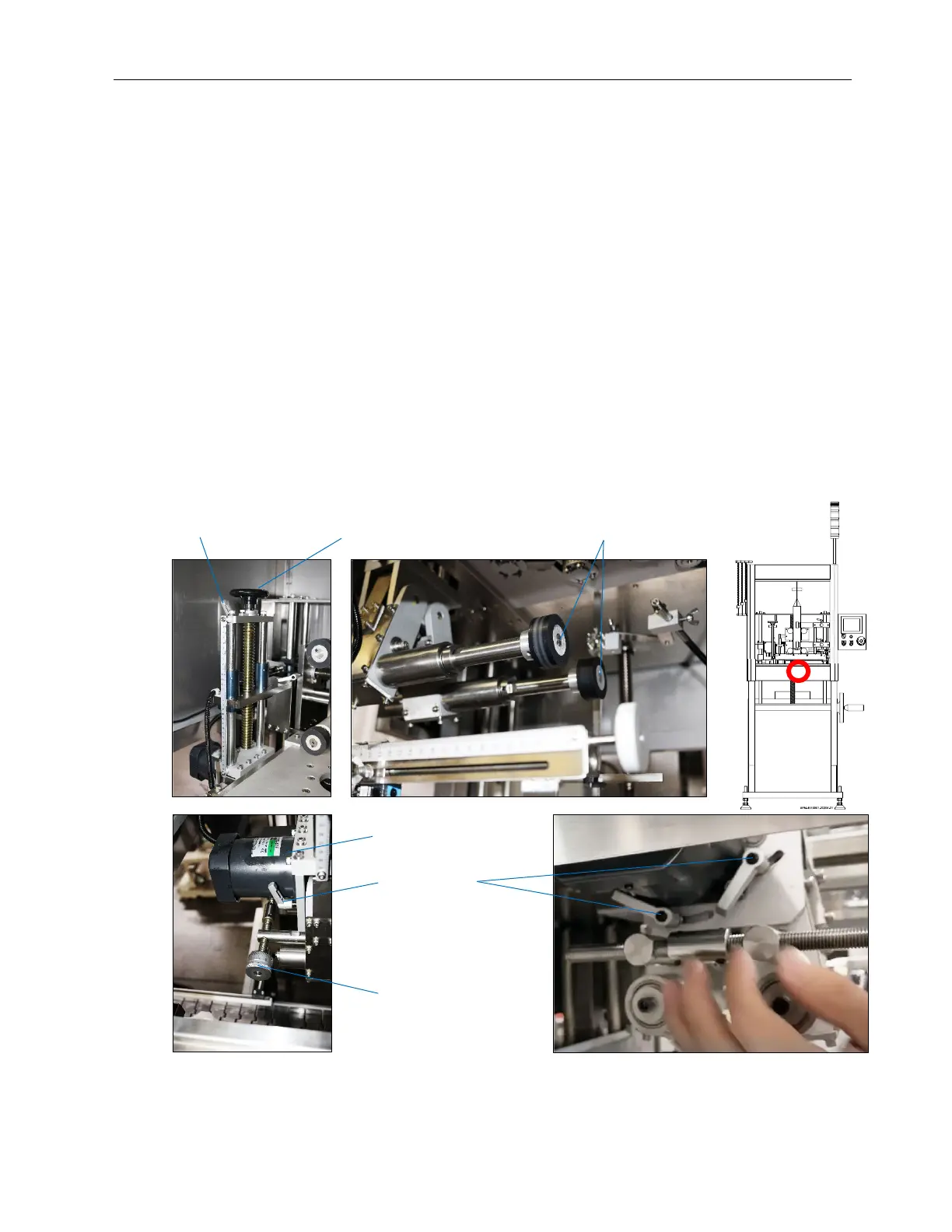

Applicator Wheels
The Applicator Wheels, located near the bottom of the Mandrel, are driven by the
Applicator Motor, and shoot cut labels down from the Mandrel onto passing bottles.
The Applicator Wheels can be adjusted vertically and can be moved in and out from
the Mandrel.
To adjust them vertically, the Applicator Wheel Vertical Lock must first be loosened,
and then the Applicator Wheel Vertical Adjust can be turned to move the Wheels up or
down along the length of the Mandrel.
To move the Applicator Wheels in or out from the Mandrel, the Applicator Wheel
Horizontal Locks must be loosened, and then the Applicator Wheel Horizontal Adjust
can be turned until the Wheels are just touching the Applicator Bearings in the
Mandrel.
Once the Applicator Wheels are in position, the Applicator Wheel Vertical Lock and
Applicator Wheel Horizontal Lock must be tightened to secure them in place.
AFM-4510001-00051-01
Applicator
Wheels
Applicator Wheel
Vertical Lock
AFM-4510001-00098-01
AFM-4510001-00049-01
Applicator Wheel
Vertical Adjust
Applicator Motor
Applicator Wheel
Horizontal Locks
(2)
Applicator Wheel
Horizontal Adjust
AFM-4510001-00230-01
