Introduction 35
4510001 REV B - 220620

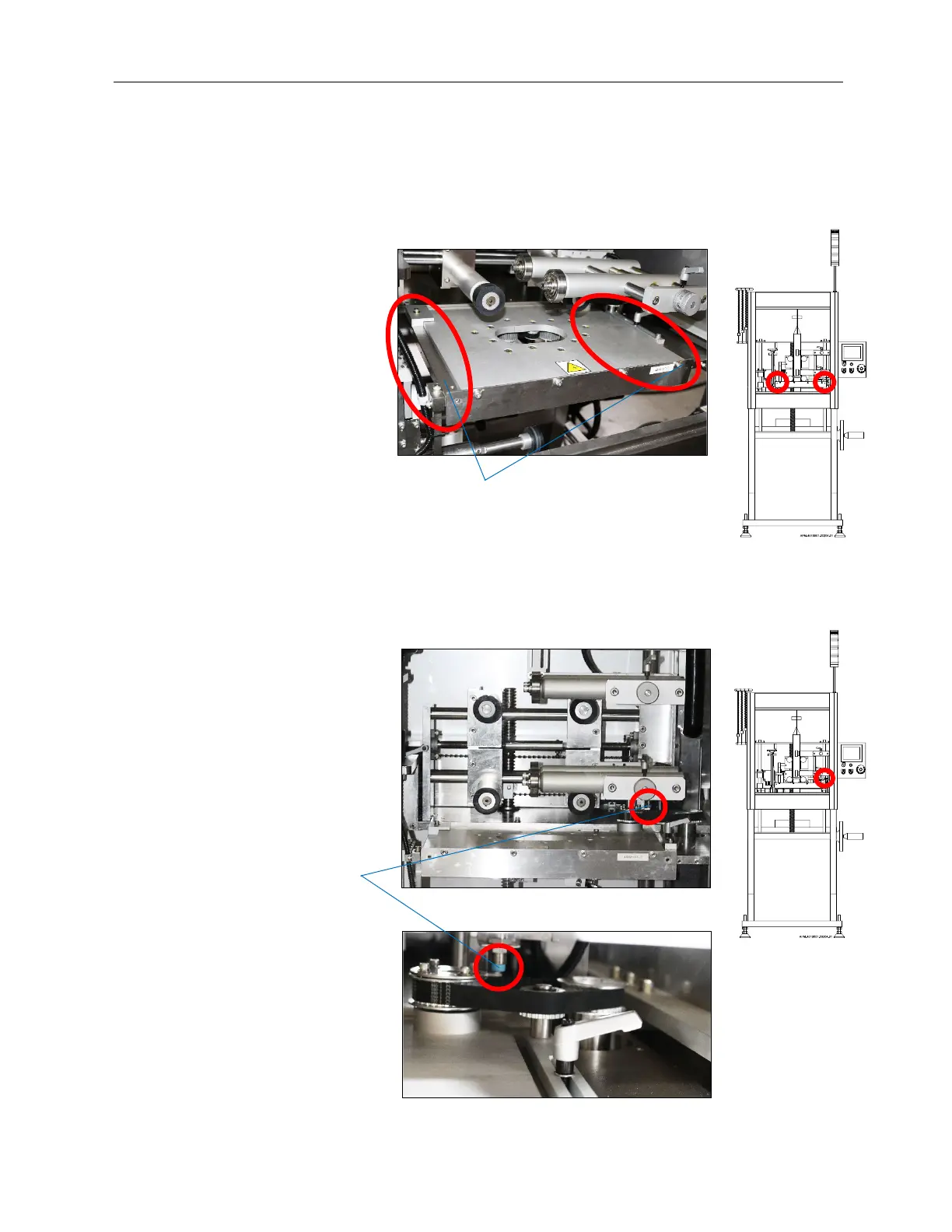

In addition to the components described above that relate to the film path through the
Chassis, additional components of the Chassis include:
Cutter Support Arms
Cutter Home Position Sensor
The Cutter Support Arms,
on either side of the Cutter
Assembly, hold the Cutter
Assembly in place.
AFM-4510001-00058-01
Cutter Support
Arms
The Cutter Home Position
Sensor, located just above
the Cutter Drive Pulley,
ensures that the Cutter
Assembly and Cutter
Blades are properly in
position.
AFM-4510001-00150-01
Cutter Home
Position Sensor
AFM-4510001-00116-01
