36 Introduction
4510001 REV B – 220620

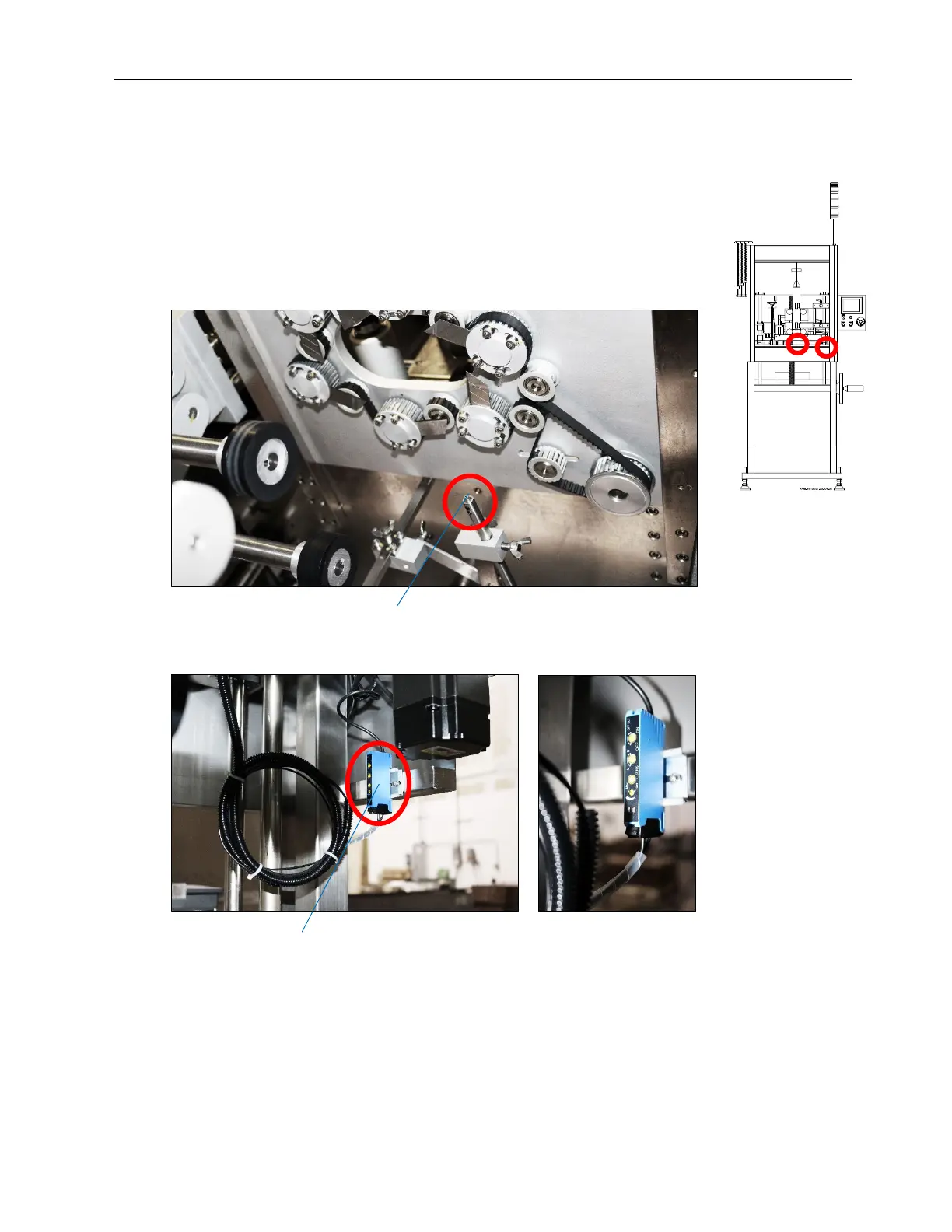

Application Fail Sensor
The Application Fail Sensor Amplifier is located inside the Chassis on
the far right, below the Cutter Assembly. It connects to the Application
Fail Sensor Eye, which is located in the back of the Chassis immediately
below the Cutter Assembly. If the Sensor Eye detects label film for too
long a time, it may be a sign that the label film has jammed, and the
Application Fail Sensor Amplifier sends a signal to stop production.
AFM-4510001-00101-01
Application Fail
Sensor Amplifier
AFM-4510001-00102-01
AFM-4510001-00058-01
Application Fail
Sensor Eye
