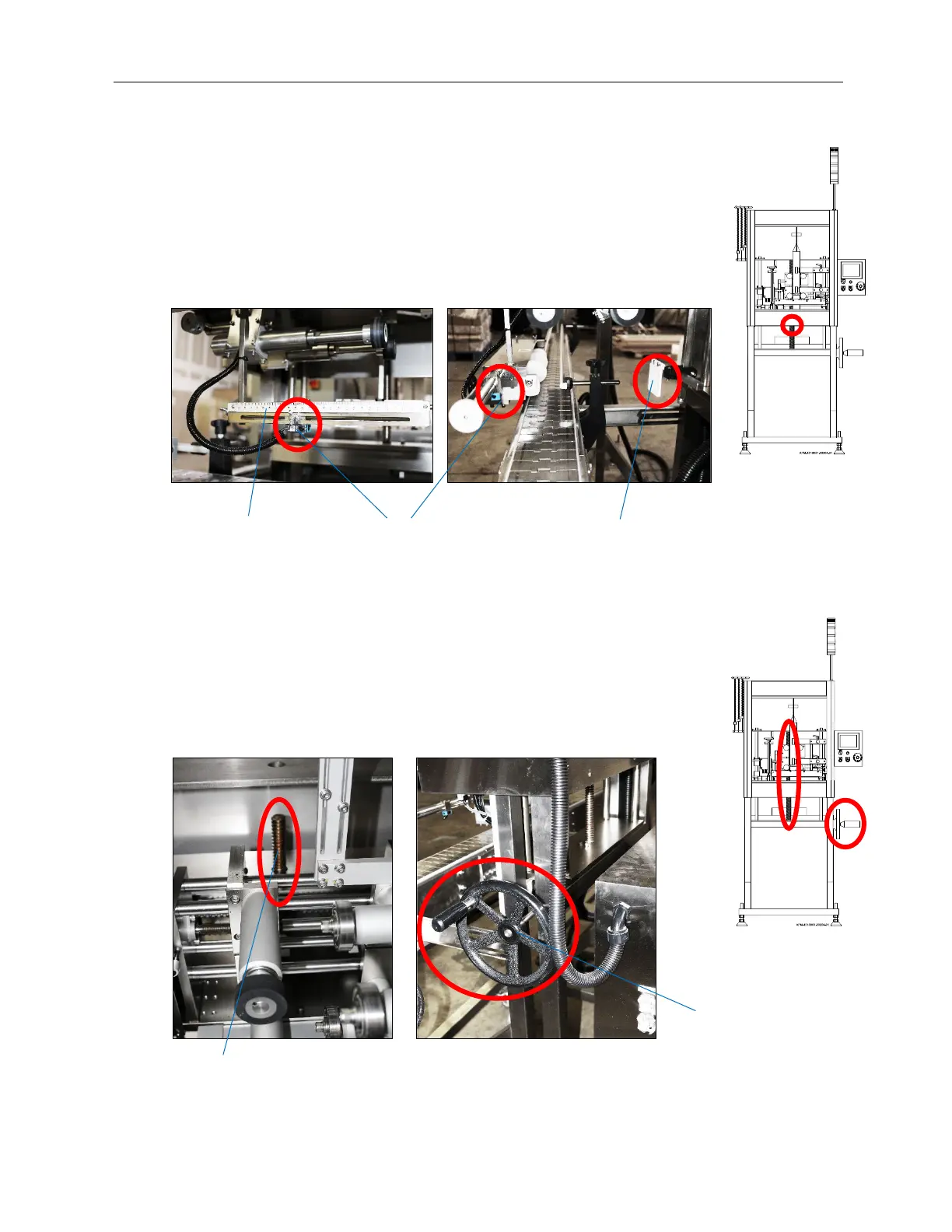

Work Detective Sensor
Head Height Adjust
The Work Detective Sensor, located on the Slider just above the
Conveyor level, shines a beam at the Work Detective Sensor Reflector
across the Conveyor. It should be positioned just slightly upstream from
the Mandrel. Whenever a bottle passed on the Conveyor, the Sensor
beam is broken, signaling the Applicator Wheel to shoot a label down
onto the bottle.
AFM-4510001-00120-01
AFM-4510001-00121-01
Work Detective
Sensor
Work Detective
Sensor Reflector
Slider
The Head Height Adjustment Crank is the large crank on the right side
of the LX-150. Turning it enables the entire Head Assembly (including
the Sensors, Wheels, Mandrel and Cutter Assembly) to be moved up
or down as a single unit. The Head Assembly moves vertically on the
Head Height Adjustment Shaft toward the back of the unit.
AFM-4510001-00091-01
AFM-4510001-00090-01
Head Height
Adjustment Crank
Head Height
Adjustment Shaft
