AFM LX-150 - Page 153

Maintenance 153
4510001 REV B - 220620

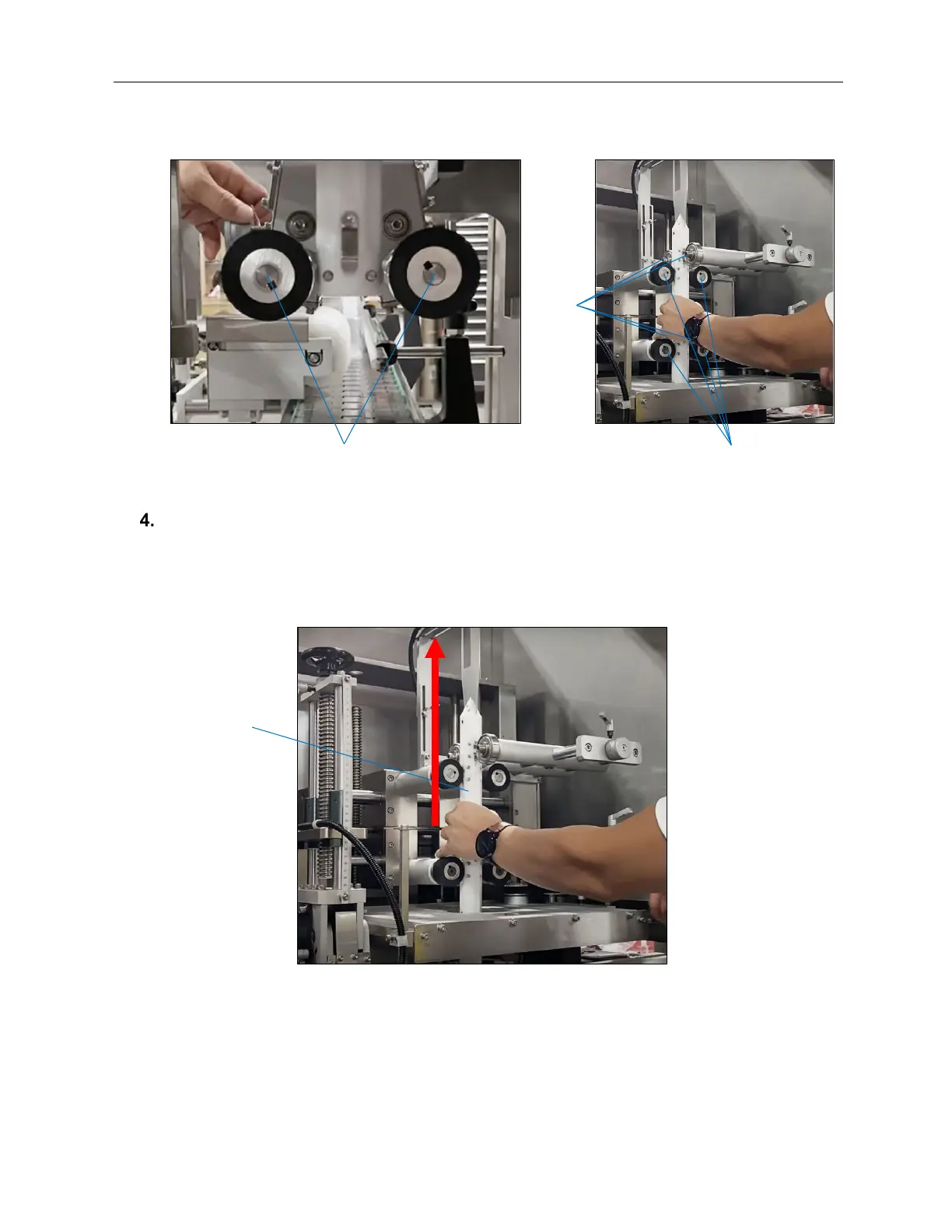

When all Wheels have been moved away from the Mandrel, gently lift the Mandrel
straight upward and out of the LX-150, being careful not to knock the Print-Reading
Sensor.
Wheels That Contact the Mandrel
Film Drive
Wheels
Applicator
Wheels
Support
Wheels
AFM-4510001-00232-01 AFM-4510001-00156-01
Removing the Mandrel
AFM-4510001-00156-01
Mandrel
