168 Maintenance
4510001 REV B – 220620

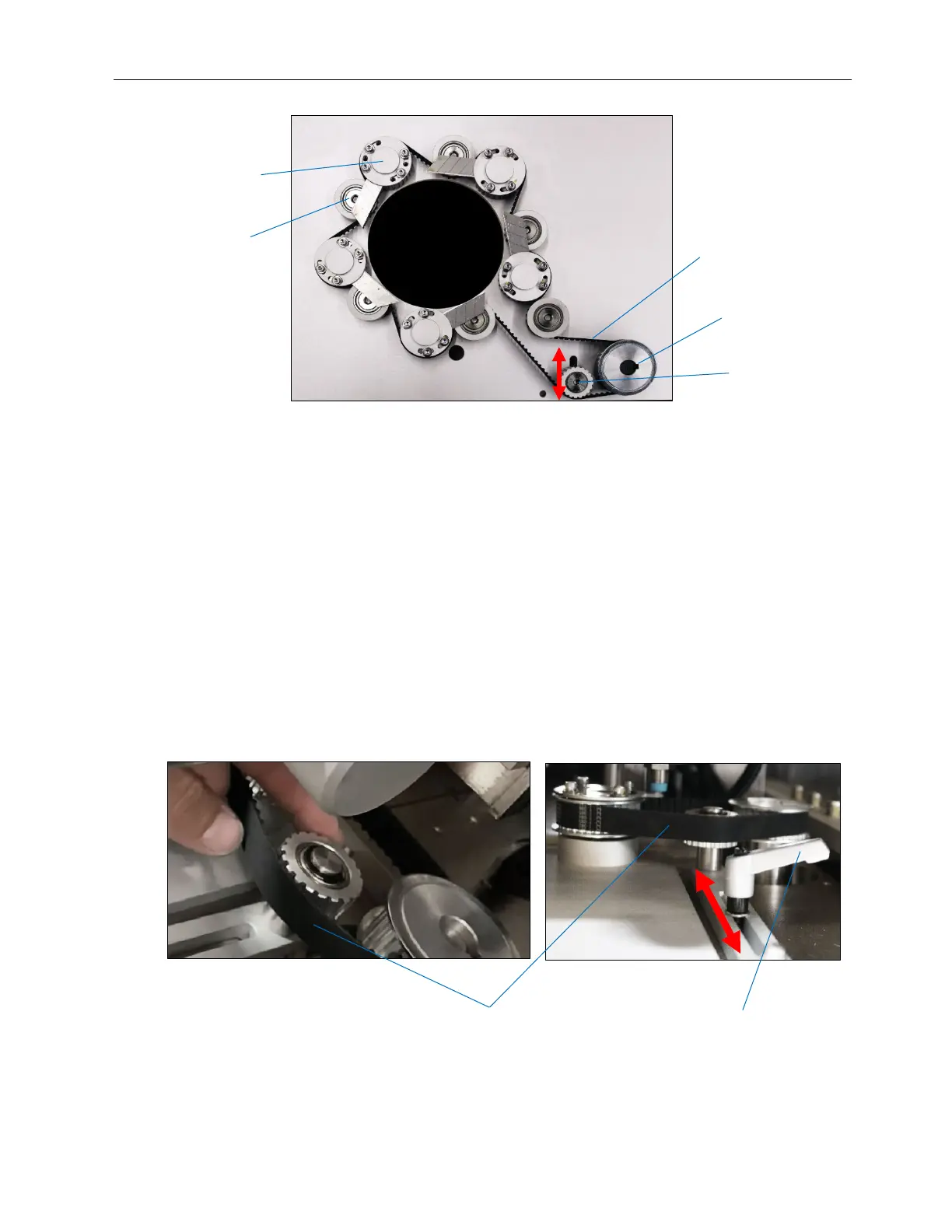

6. Thread the new Timing Belt around the Cutter Blade Housings, Wheels, and Pulleys in
the Cutter Assembly, ending with the Tension Adjustment Wheel.
7. Check the tension on the Timing Belt and adjust if needed (see “Checking the Timing
Belt” on page 166).
8. Install new Cutter Blades (see “Replacing the Cutter Blades” on page 162).
9. Reinstall the Cutter Assembly (see “Installing the Cutter Assembly” on page 53), looping
the new Cutter Drive Belt over the Cutter Drive Pulley.
Timing
Belt
Cutter Drive
Pulley
AFM-4510001-00207-01
Tension
Adjustment Wheel
Cutter Blade
Housing
Timing
Pulley
AFM-4510001-00116-01
Tensioner
Lock
Cutter
Drive Belt
Installing a New Cutter Drive Belt
AFM-4510001-00244-01
