54 Installation
4510001 REV B – 220620

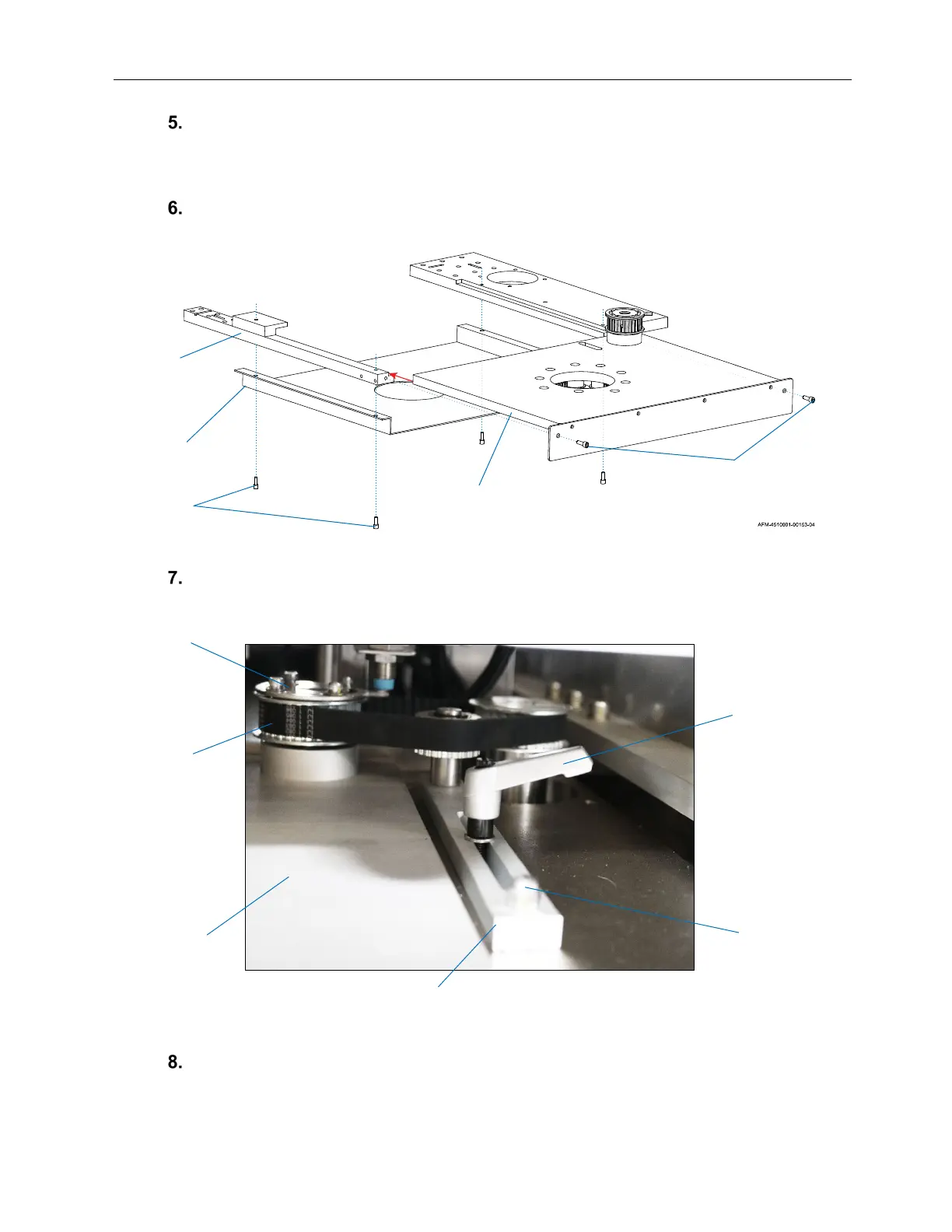

Hold the Cutter Guard flat against the underside of the Cutter Support Arms, aligning
the screw holes.
Insert the 4 Screws into the screw holes beneath the Cutter Support Arms and use
the Allen Wrench to tighten them to secure the Cutter Guard in position.
Loosen the Tensioner Lock on the right side of the Cutter Support Arm.
Loop the Cutter Drive Belt around the Cutter Drive Pulley in the inside right corner of
the Cutter Assembly. The tension on the Cutter Drive Belt should be very tight.
Cutter
Support
Arm
Screws
Beneath Cutter
Support Arms
Screws at Ends of
Cutter Support Arms
Cutter
Guard
Cutter
Assembly
Cutter
Support
Arm
Cutter
Assembly
Loosening the Tensioner
AFM-4510001-00061-01
Cutter
Drive Belt
Cutter Drive
Pulley
Tensioner
Lock
Tensioner
To Next Page
