22
The Agilent 1100 Series Control Module
Control Module Keys
• To move back to the previous information screen select the Previous button [F6].
The m (menu) key
You can use the m (menu) key on the control module keyboard to access selected
functionality quickly wherever you are in the software. For example, from the Table
of Contents you have quick access to the Print function. In other screens you can
easily select the Restart or Default functions or a schematic diagram for explanation
purposes. Press the Esc key to exit the menu. See the Quick Reference Guide on the
availability of context sensitive menus. In Figure 3 Analysis Screen context menus
are shown. Depending on the active parameter entry field context sensitive menus
provide different options.

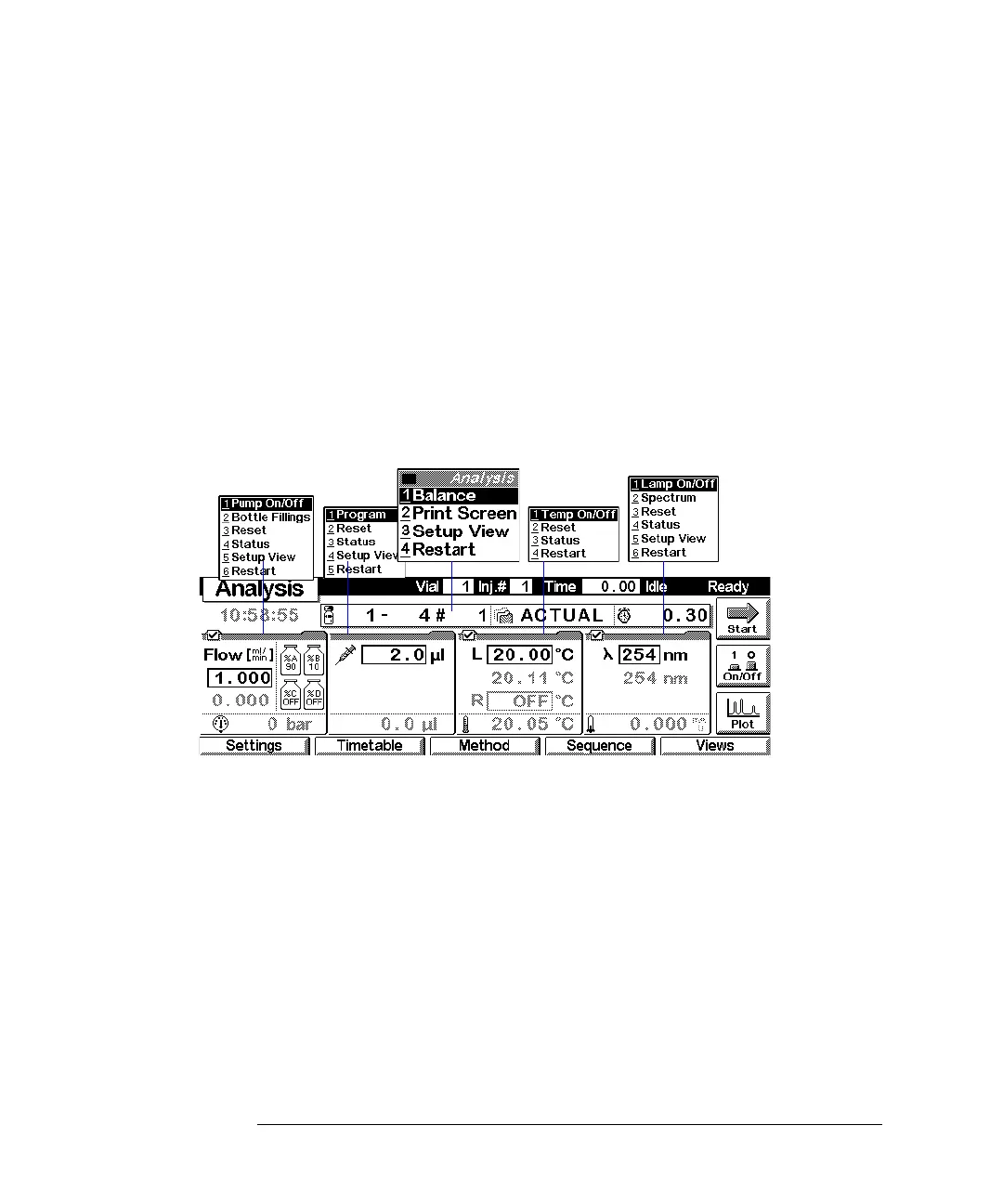

Figure 3 Context Menus in the Analysis Screen
The Esc key
The Esc (Escape) key allows you to exit the current window or screen and leads you
back to the last window or screen you were working with.
If you are in one of the main screens, you can use the Esc key to toggle between the
current and the previous screen.
In an edit field the previous value can be restored by pressing the ESC key.
The Enter key
With the Enter key you accept a current entry or action. When entering a parameter
into a certain field, the Enter key leads you on to the next accessible entry field. In
this case it has the same function as the right Direction key.
