Optical System
Max-Light Cartridge Flow Cell
The detector allows easy access to flow cells via a cartridge. A variety of
optional flow cells can be inserted using the same quick, simple mounting
system.
Max-Light Cartridge Flow Cells for standard and bio-inert applications are
available. For testing of the detector, a Max-Light Cartridge Test Cell is
available.
The optical principle of the Max-Light Cartridge cell is based on opto-fluidic
waveguides. Nearly 100 % light transmission is achieved by utilizing total
internal reflection in a non-coated silica fiber. Compromising refractive index
and thermal effects are almost completely eliminated, resulting in significantly
less baseline drift.

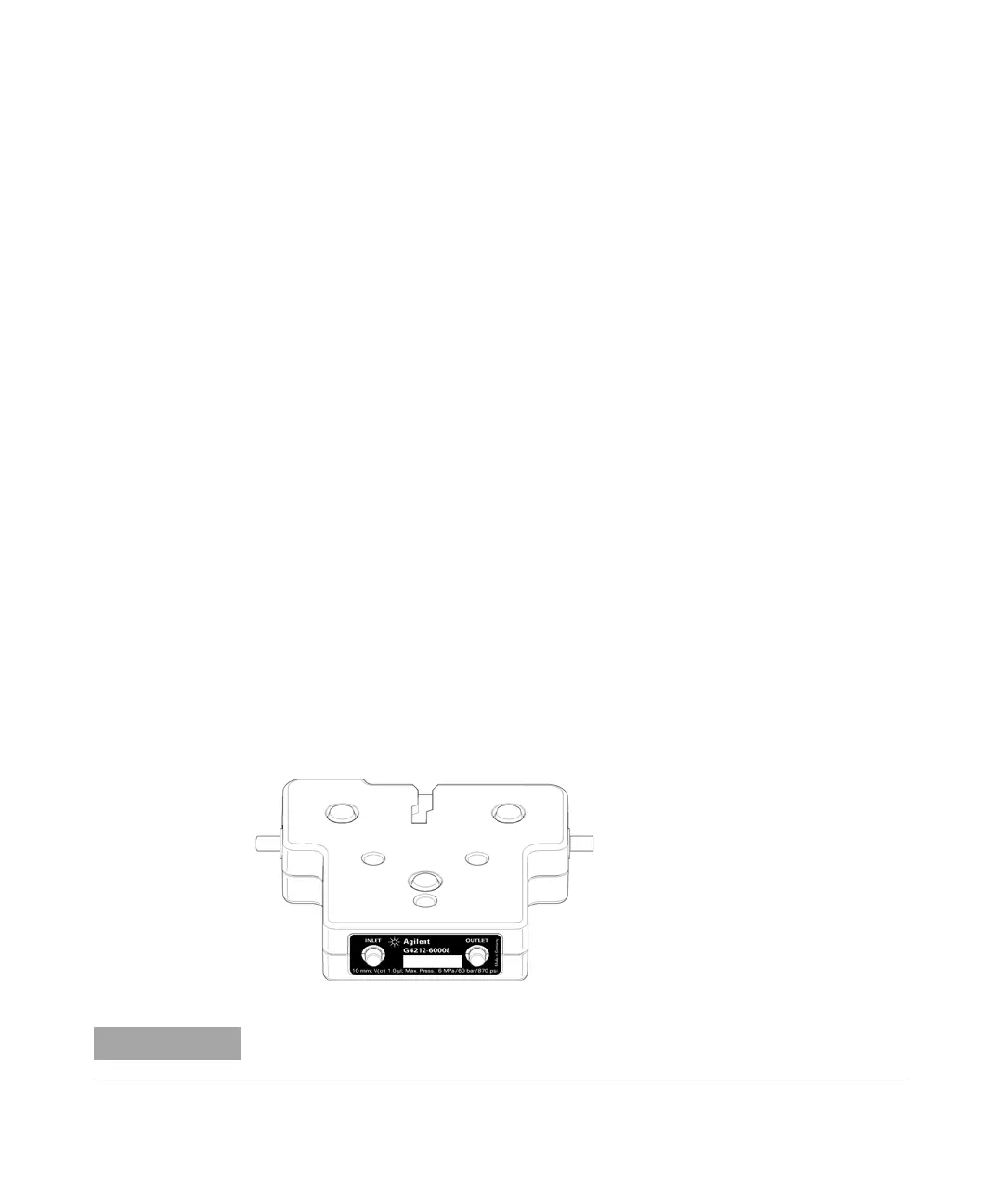

Figure 3 Max-Light Cartridge Flow Cell
p/n Description
G4212-60008
Max-Light Cartridge Cell (10 mm, V(
σ) 1.0 µL)
G4212-60007
Max-Light Cartridge Cell (60 mm, V(
σ) 4.0 µL)
G5615-60018
Max-Light Cartridge Cell Bio-inert (10 mm, V(
σ) 1.0 µL)
includes Peek Capillary 1.5 m i.d. 0.18 mm (0890-1763) and PEEK Fittings 10/PK (5063-6591)
G5615-60017
Max-Light Cartridge Cell Bio-inert (60 mm, V(
σ) 4.0 µL)
includes Peek Capillary 1.5 m i.d. 0.18 mm (0890-1763) and PEEK Fittings 10/PK (5063-6591)
G4212-60032
HDR Max-Light Cartridge Cell (3.7 mm, V(
σ) 0.4 µL)
G4212-60038
ULD Max-Light Cartridge Cell (10 mm, V(
σ) 0.6 µL)
G4212-60011 Max-Light Cartridge Test Cell
NOTE
For additional information on the Max-Light Cartridge flow cell refer to “Choosing a Flow
Cell” on page 80 and “Inline Pressure Relief Valve Kit (G4212-68001)” on page 82.
