Agilent 1200 Infinity Series DAD User Manual 151
Test Functions and Calibration
8
Slit Test
Slit Test
Slit Test (G4212A)
The slit test verifies correct operation of the micromechanical slit.
During the test, the slit is moved through all slit positions while the detector
monitors the lamp intensity change. When the slit position is changed, the
intensity drop (move to smaller slit) or intensity increase (move to larger slit)
must be within a defined range.
If the intensity changes are outside the expected range, the test fails.
1 Run the Slit Test with the recommended user interface (for further
information see Online-Help of user interface).

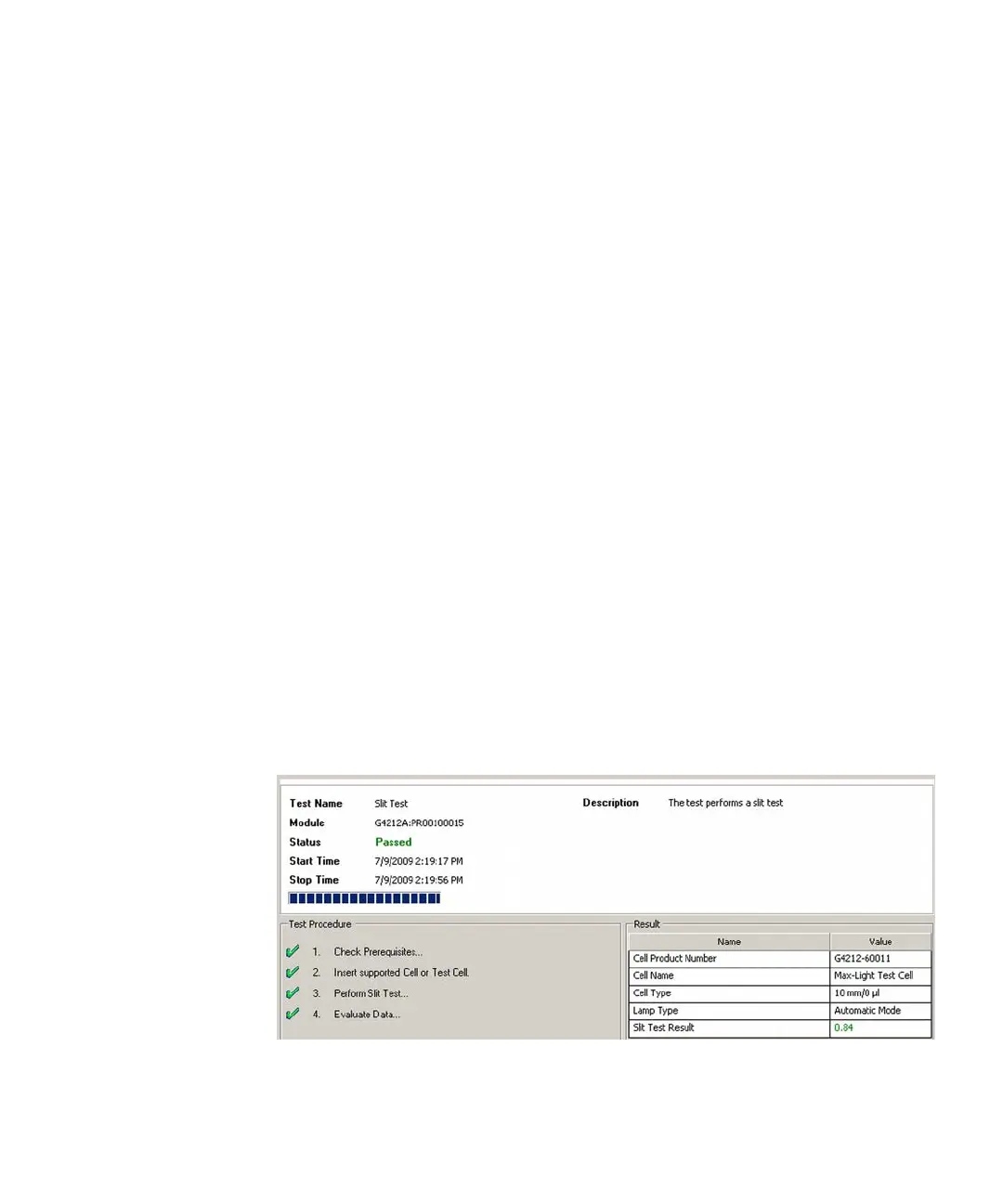

Figure 43 Slit Test – Results
When In case of problems.
Parts required # Description
1 Max-Light Cartridge Cell (filled with water)
OR 1 Max-Light Cartridge Test Cell
Preparations Lamp must be on for at least 10 minutes.
When using a Max-Light Cartridge Cell a flow rate of 0.5 mL/min with water is required.
