208 Agilent 1200 Infinity Series DAD User Manual
12 Hardware Information
Electrical Connections
Rear view of the module

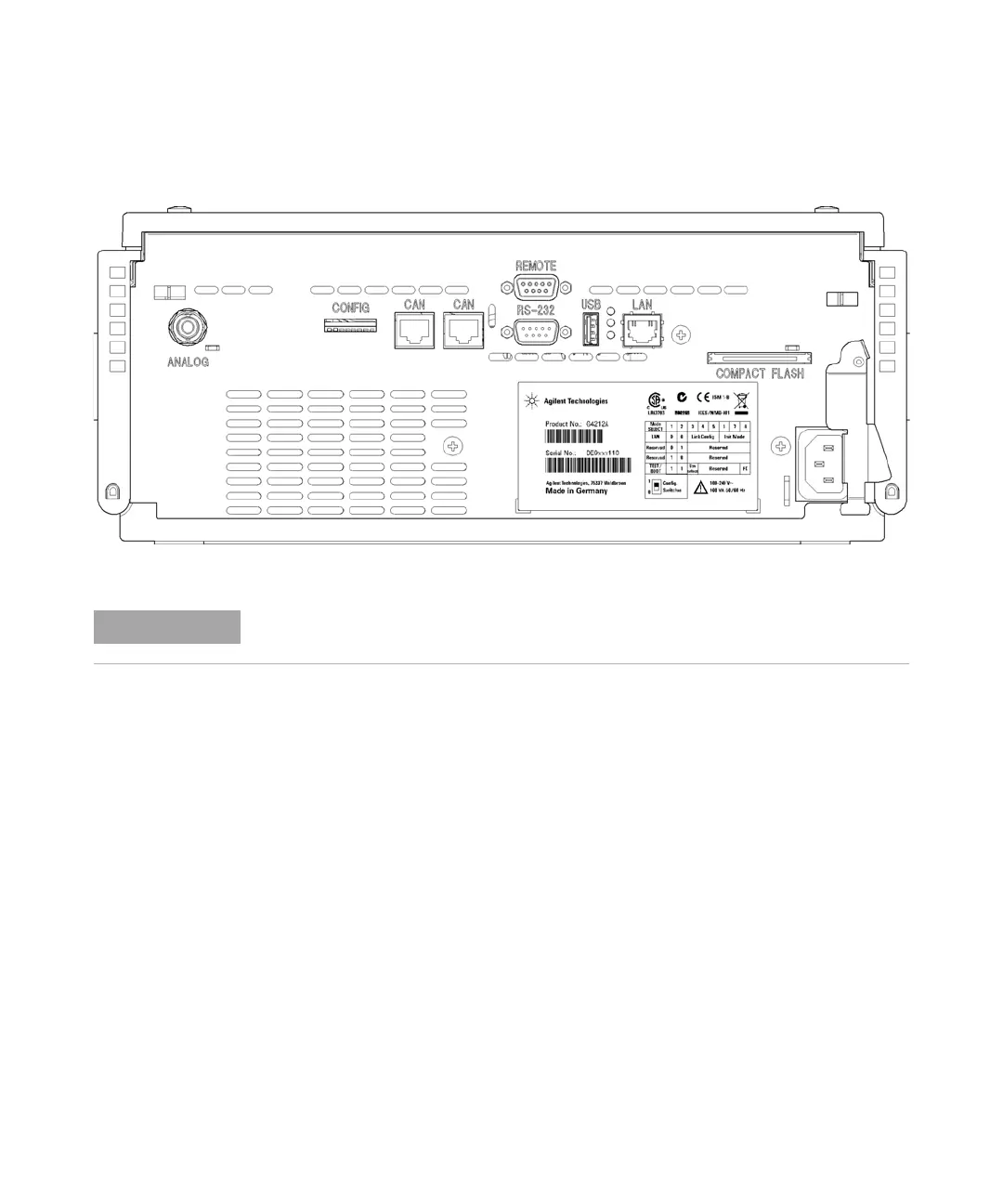

Figure 52 Rear View of Detector – Electrical Connections and Label
NOTE
The CompactFlash Card Slot is not active yet. It may be used for future enhancements.
