Replacing Leak Handling System Parts
Replacing Leak Handling System Parts
When If the parts are corroded or broken.
Tools required Description
Tissue
Parts required # p/n Description
1 5061-3388 Leak funnel
1 5041-8389 Leak funnel holder
1 5062-2463 Corrugated tubing, PP, 6.5 mm id, 5 m
1 G4212-40027 Leak downpipe
Preparations Turn the pump off.

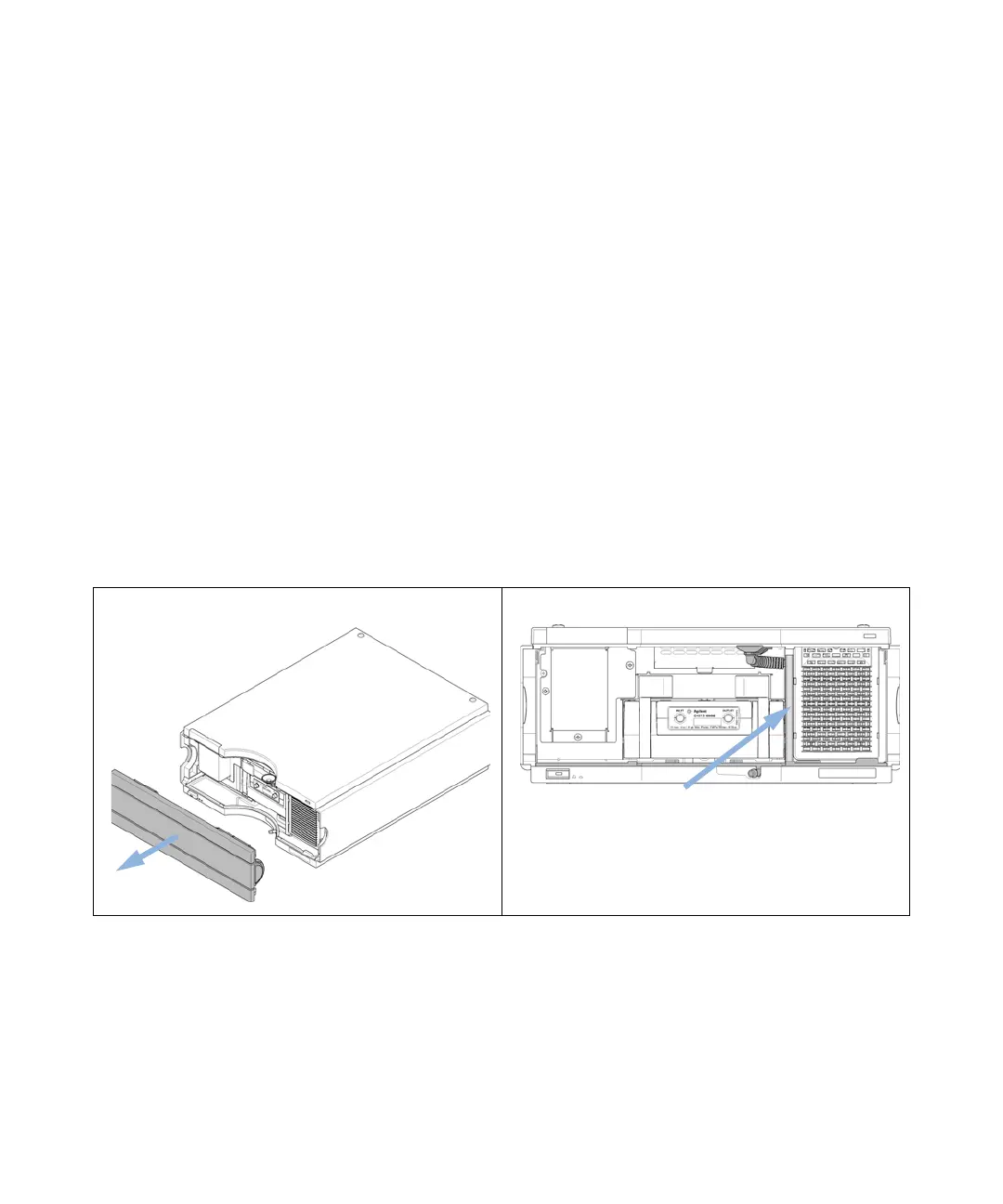

1 Remove the front cover. 2 Locate the leak interface area.
