182 Agilent 1200 Infinity Series DAD User Manual
9 Maintenance
Replacing Leak Handling System Parts
3

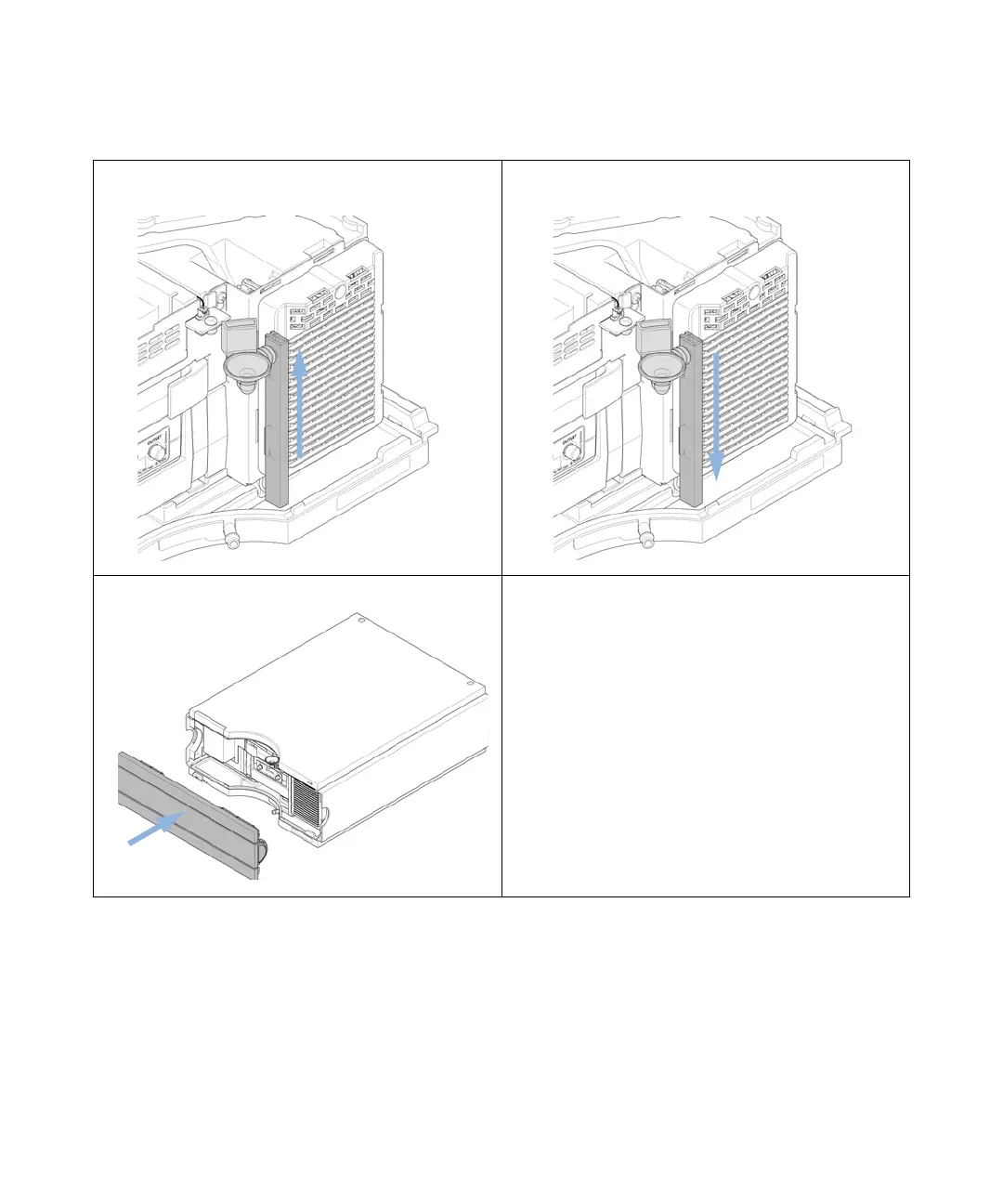

Pull the leak funnel out of the leak funnel holder and slide
the Leak downpipe up for removal.
4 Insert the leak interface system parts. Ensure the tubing
is fitted correctly in the bottom.
5 Close the front cover.
