Agilent 1200 Infinity Series DAD User Manual 39
Installing the Module
3
Optimizing the Stack Configuration
Two Stack Configuration for Agilent 1290 Infinity LC
In case the autosampler thermostat is added to the system, a two-stack
configuration is recommended, which places both heavy modules (1290
Infinity pump and thermostat) at the bottom of each stack and avoids high
stacks. Some users prefer the lower height of this arrangement even without
the autosampler thermostat. A slightly longer capillary is required between
the pump and autosampler. (See Figure 13 on page 39 and Figure 14 on
page 40).

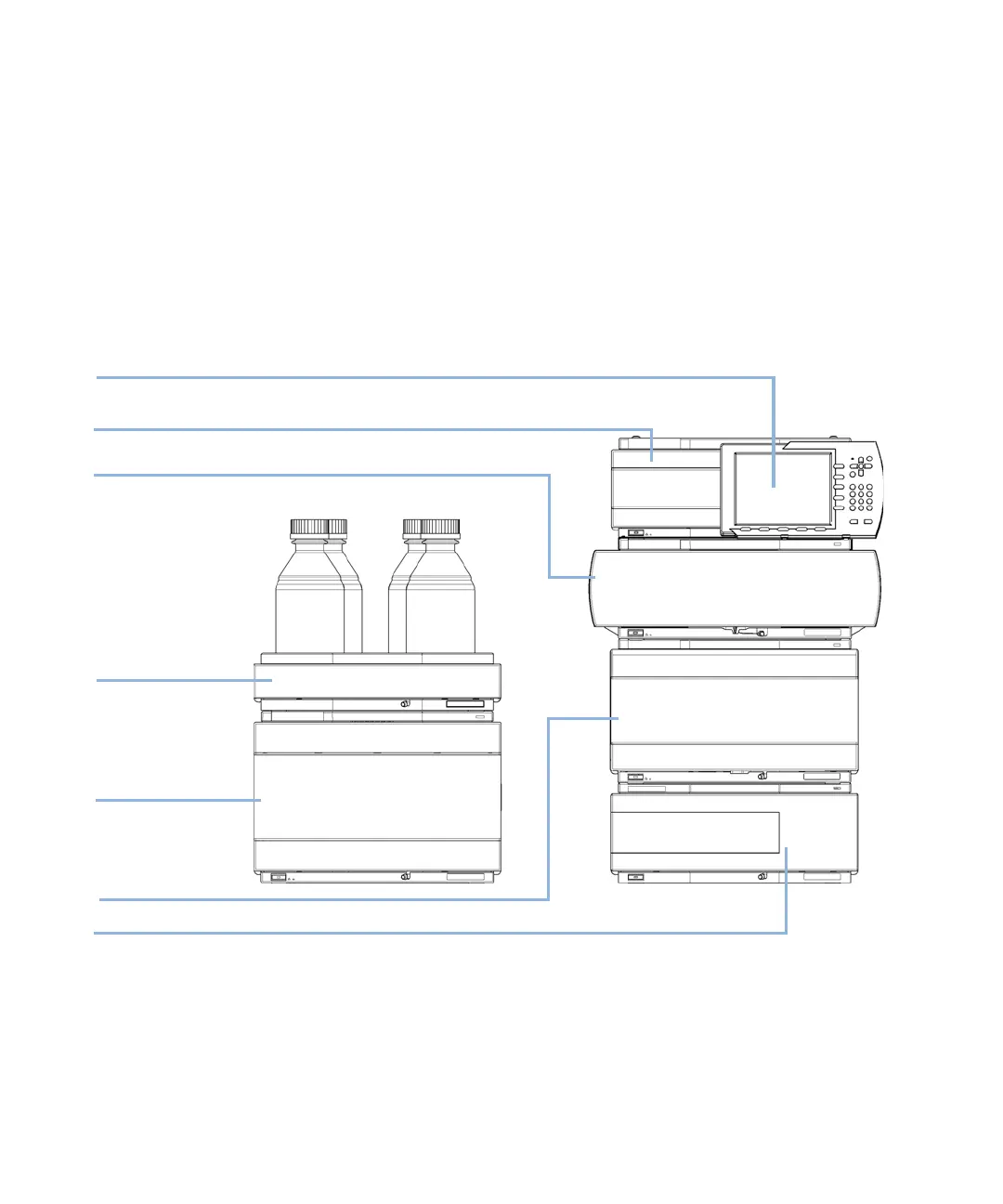

Figure 13 Recommended two stack configuration for 1290 Infinity with binary pump
(front view)
>chiVciE^adi
8dajbcXdbeVgibZci
9ZiZXidg
HdakZciXVW^cZi
Ejbe
6jidhVbeaZg
I]ZgbdhiVi[dgi]Z6AHdei^dcVa
