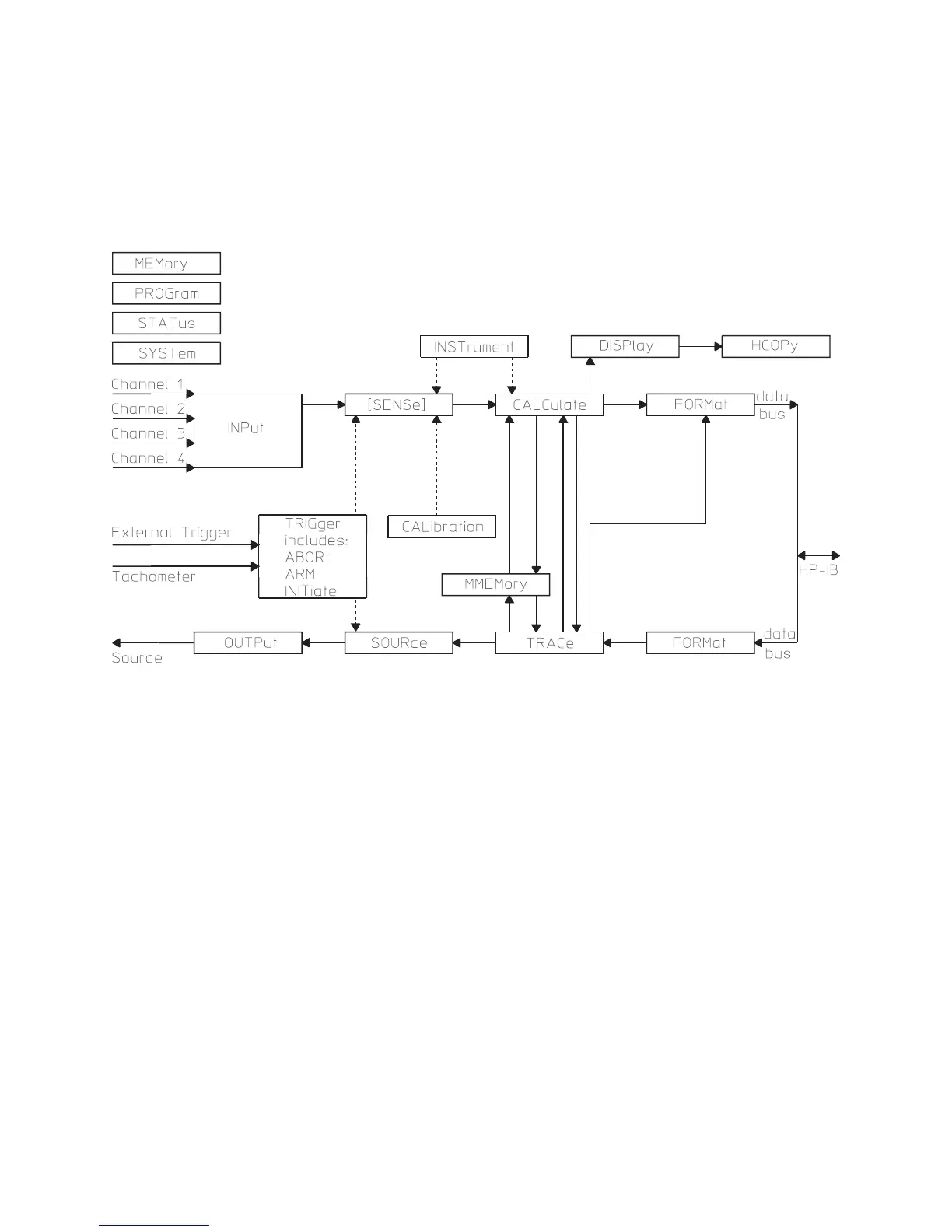

Figure 2-2 shows the flow of control and measurement data through the Agilent 35670A. The SCPI
subsystems appear in the block diagram. Use figure 2-2 to help identify the subsystem containing a
command. For example, the location of the SENSe subsystem indicates it contains commands which
determine how measurement data is acquired. The use of the brackets ([ ]) indicates SENSe is an
implied mnemonic.
Finding the Right Command
2-4
2-2. Flow of Control and Measurement Data
in the Agilent 35670A
