How to Set the Power Tunable Lasers
Agilent 8163A Lightwave Multimeter, Agilent 8164A Lightwave Measurement System, & Agilent 8166A Lightwave
Multichannel System, Fourth Edition
107
6If [Power Mode] is not set to <Manual Att.> (see Figure 65), that is, it is set
<Automatic>, perform the following steps:
a Move to [Power Mode] and press Enter.
b Move to <Manual Att.> and press Enter. The attenuation parameter,
[Atten.], appears, see Figure 67.
7 Move to [Atten.], type 3.000, using the numerical keypad, and press Enter.

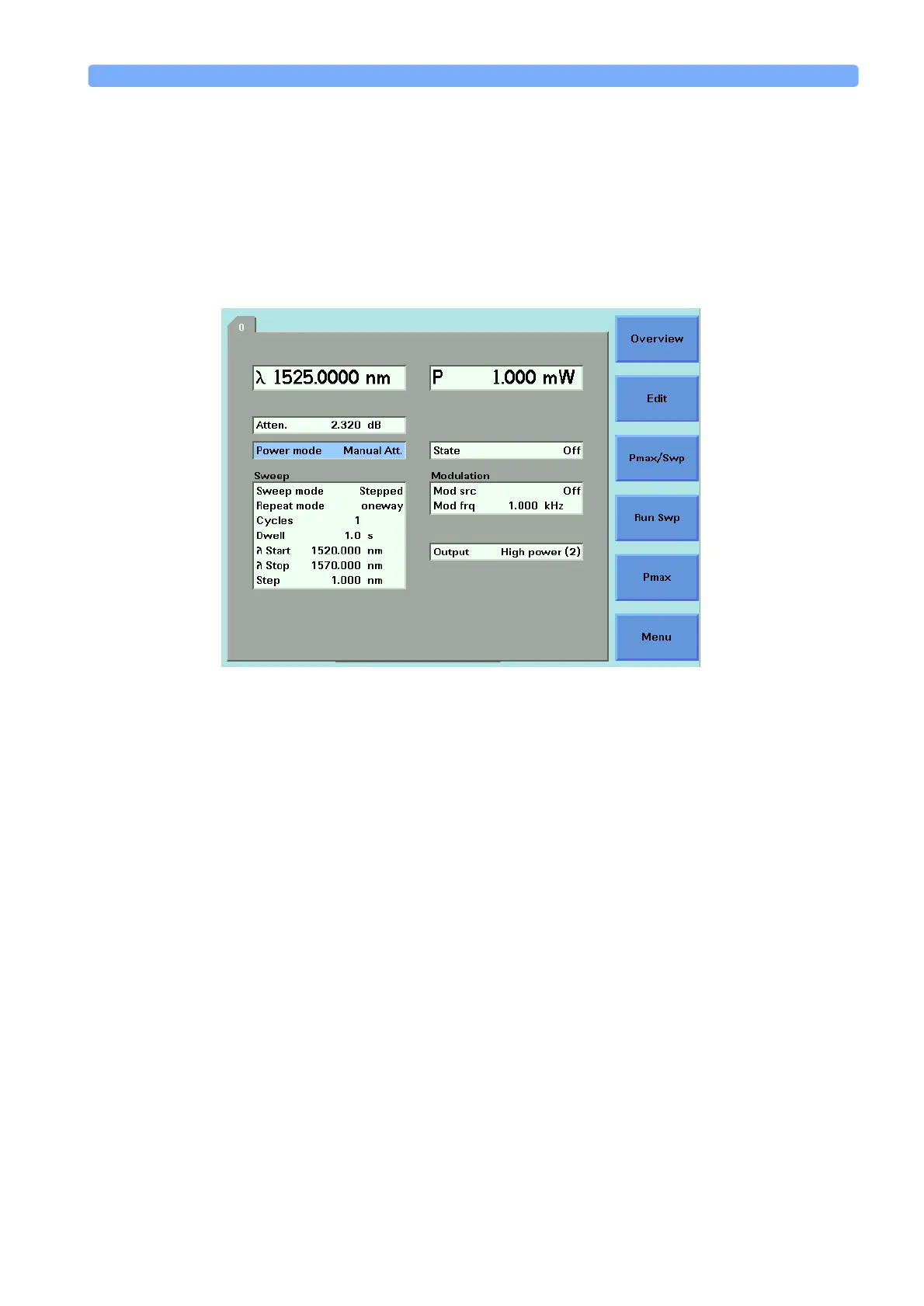

Figure 67 Setting Attenuation
